Parts Catalog

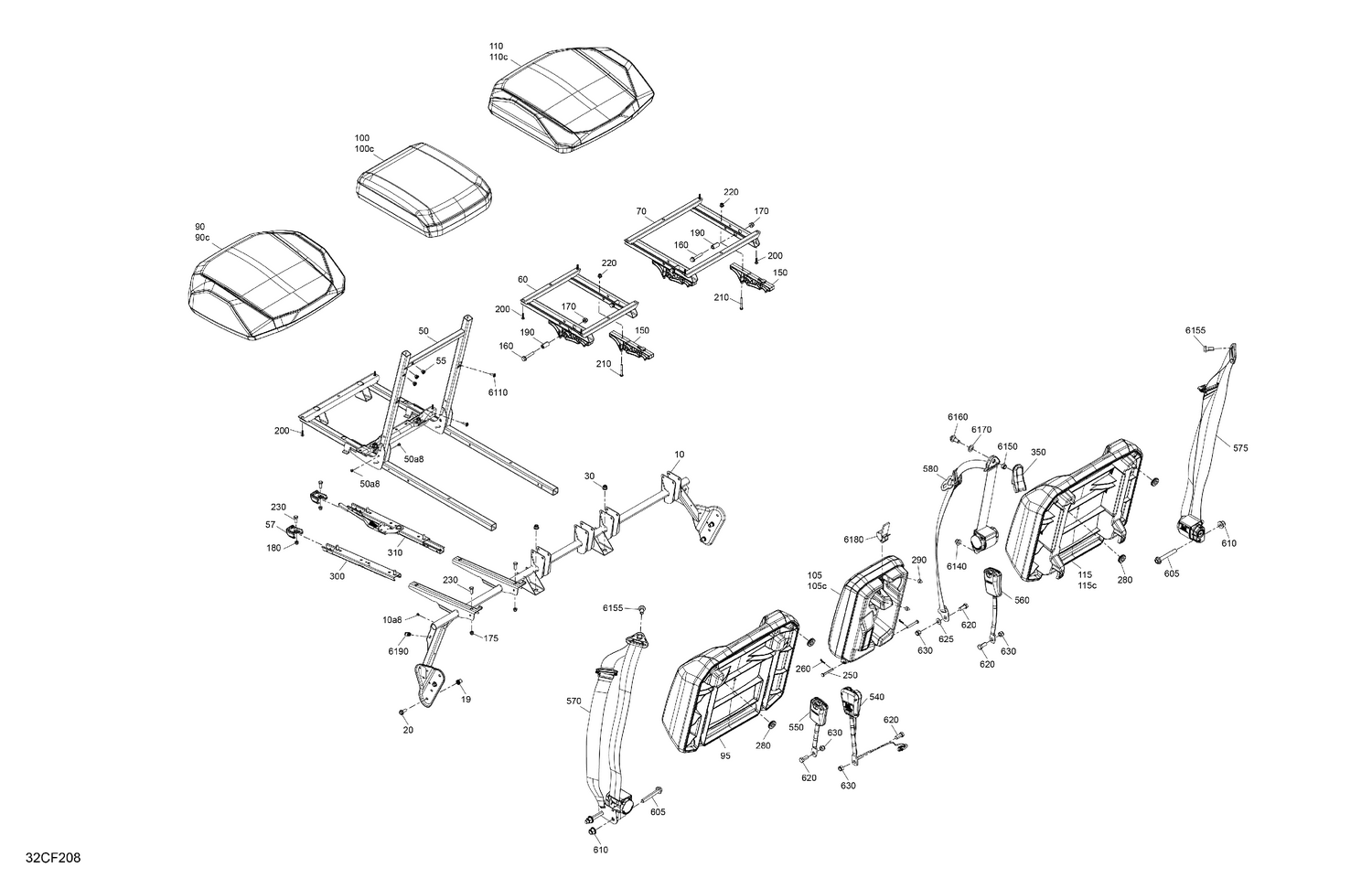

07- Body - Seat - Front Section

Parts (50)

Ref	Part Number	Description
10a8	293150293	Pop Rivet 3/16 X ,425
19	293450307	Insert Half Hex Body M8 x 1.25
20	207582054	Hex Screw Washer Head M8 X 20
30	233281416	Hex. Elastic Flange Nut M8
50a8	293150293	Pop Rivet 3/16 X ,425
55	250100199	Insert Half Hex Body M6 x 1.0
57	708004160	Seat Rail Cap
60	708002815	Mid Seat Member
70	708002821	Passenger Seat Member
90c	708003898	LH Cushion Cover
95	708004246	Backrest Ass'y
100c	708003980	Central Cushion Cover
105c	708003988	Central Backrest Cover
110c	708003904	RH Cushion Cover
115c	708004259	Backrest Cover
150	708002581	Seat Base Pivot
160	207684544	Hex. Flange Screw M8 X 45
170	233281416	Hex. Elastic Flange Nut M8
175	233281416	Hex. Elastic Flange Nut M8
180	233281416	Hex. Elastic Flange Nut M8
190	708003749	Bushing
200	250000760	Torx Screw Truss Head K50X20 T20
210	207064544	Hex. Screw M6 X 45
220	233261494	Hex. Flange Elastic Nut M6
230	207182044	Hex. Screw M8 X 20
250	250400069	Pin
260	269800431	Hairpin Cotter
280	517303756	Grommet
290	293830005	Rubber Bumper
300	708003314	LH Seat Rail
310	708003701	Rail_Seat RH
350	708004033	Belt Guard Trim
540	708002331	Driver Buckle
550	708003163	Middle Buckle
560	708002329	Passenger Buckle
570	708003082	LH Safety Belt
575	708003200	RH Safety Belt
580	708003688	Central Safety Belt
605	207028046	Hex. Screw M12 X 80
610	250001195	Elastic Flange Nut M12
620	250001316	Hex. Cap Screw 7/16'' X 1''
625	250200102	Flat Washer M12
630	250100183	Lock Nut Nylon 7/16
6110	250000959	Screw PT Type K-50 X 16
6140	233221416	Elastic Flange Nut M12
6150	250100183	Lock Nut Nylon 7/16
6155	708002504	Safety Belt screw
6160	708000890	Safety Belt Screw
6170	708000891	Position Washer
6180	269501487	Latch
