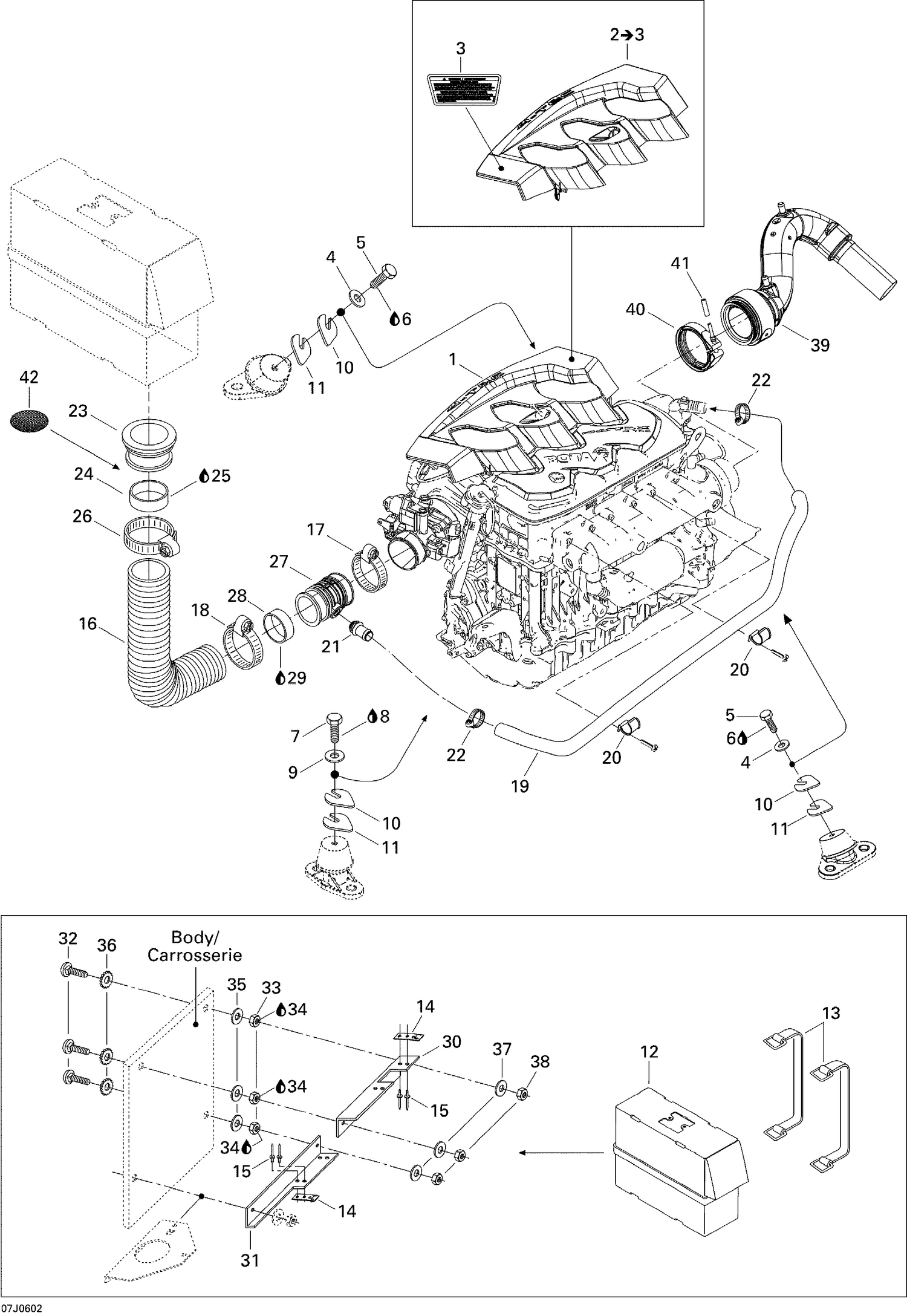

| Ref | Part Number | Description |
|---|
| 1 |
270000639 |
Rotax Engine 4 Strokes, 1503 NA |
| 3 |
219902674 |
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership |
| 4 |
234082600 |
Flat Washer 8 mm, Stainless |
| 5 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 8 |
293800060 |
Loctite 243, 10 ml |
| 9 |
234082600 |
Flat Washer 8 mm, Stainless |
| 10 |
270000025 |
SHIM 1.3 MM - Call your local BRP dealership |
| 11 |
270000024 |
SHIM 0.4 MM - Call your local BRP dealership |
| 12 |
204250258 |
Air Silencer Ass'y |
| 13 |
293850097 |
Retainer Strap |
| 14 |
293850024 |
STRAP CLIP - Call your local BRP dealership |
| 15 |
204000081 |
Pop Rivet 3/16" |
| 16 |
204340435 |
INTAKE HOSE - Call your local BRP dealership |
| 17 |
293650061 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 18 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 19 |
270000949 |
Formed Hose This part replaces 270000681. |
| 20 |
275500664 |
Retainer |
| 21 |
273000234 |
Breather Valve This part replaces 273000195. |
| 22 |
293650051 |
Tridon Gear Clamp |
| 23 |
508000254 |
INTAKE ADAPTATOR - Call your local BRP dealership |
| 24 |
204250275 |
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership |
| 25 |
293800021 |
ADHESIVE LOCTITE 495 - Call your local BRP dealership |
| 26 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 27 |
204250276 |
Adaptor Hose, Engine |
| 28 |
204250275 |
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership |
| 29 |
293800021 |
ADHESIVE LOCTITE 495 - Call your local BRP dealership |
| 30 |
204250285 |
Air Silencer Bracket, Upper |
| 31 |
204250284 |
Air Silencer Bracket, Lower |
| 32 |
204000130 |
Elevator Bolt |
| 33 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 34 |
293800005 |
Loctite 271, 10 ml |
| 35 |
234081600 |
Stainless, Flat Washer 8 mm |
| 36 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 37 |
234062600 |
Flat Washer M6, Stainless |
| 38 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 39 |
274001030 |
EXHAUST PIPE - Call your local BRP dealership |
| 40 |
274001472 |
Exhaust Clamp This part replaces 274000959. |
| 41 |
219704410 |
Polyurethane Hose 10000Mm Long |
