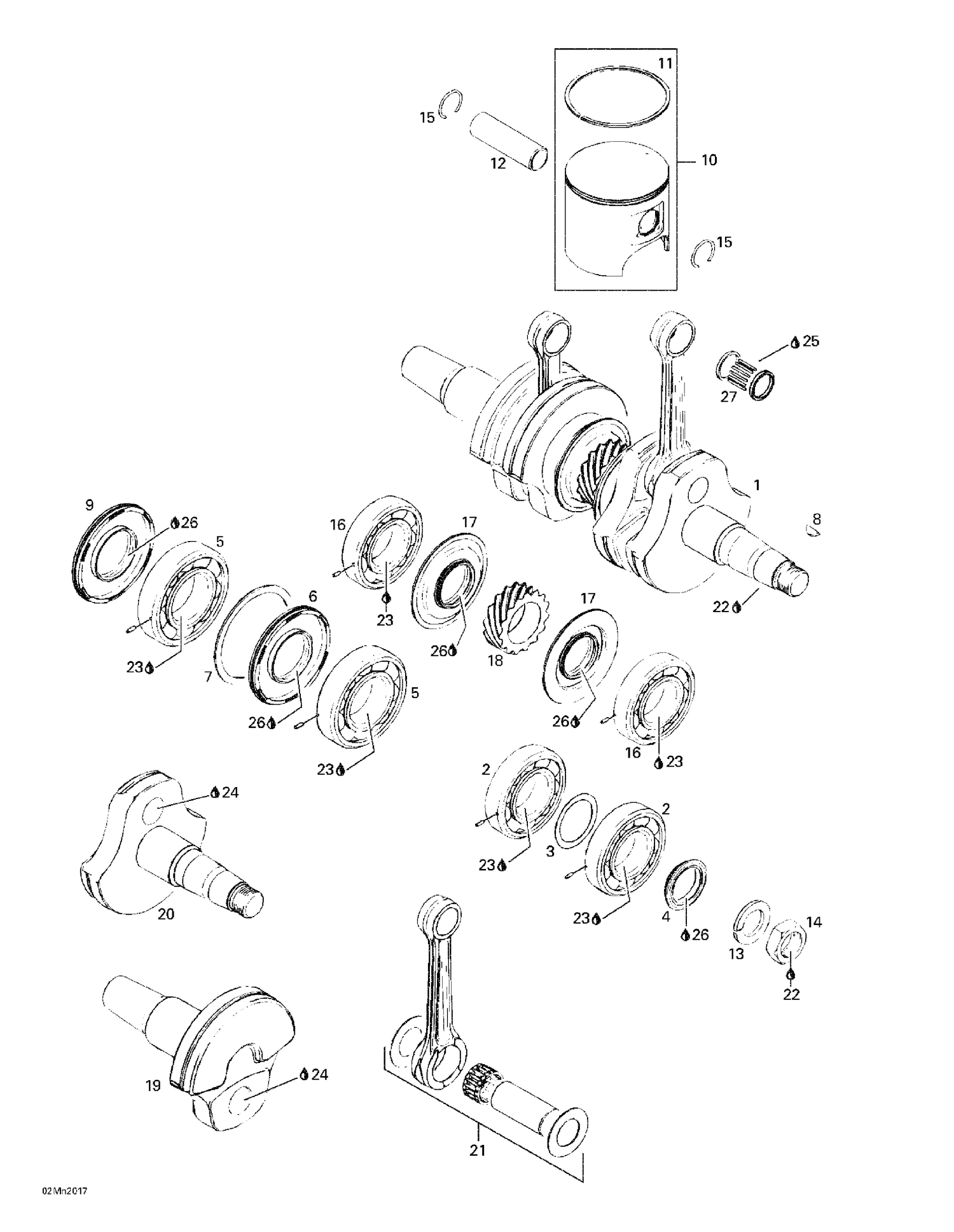

| Ref | Part Number | Description |
|---|
| 2 |
420832575 |
Ball Bearing 6207 |
| 3 |
420427502 |
ADJUSTMENT WASHER - Call your local BRP dealership |
| 4 |
420931795 |
Oil Seal This part replaces 420931790. |
| 5 |
420832600 |
Ball Bearing 6208 |
| 7 |
420926190 |
Washer |
| 8 |
420246015 |
Woodruff Key |
| 9 |
420931280 |
Oil Seal |
| 11 |
420815222 |
Semi-Trapez Ring 78 mm |
| 12 |
420916371 |
GUDGEON PIN - Call your local BRP dealership This part replaces 420916370. |
| 13 |
420945759 |
Lock Washer, 22 mm |
| 14 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 15 |
420845102 |
PISTON CIRCLIP - Call your local BRP dealership |
| 16 |
420832575 |
Ball Bearing 6207 |
| 18 |
420834355 |
CENTRAL GEAR - Call your local BRP dealership |
| 19 |
420818706 |
Crankshaft (PTO side) |
| 20 |
420818736 |
Crankshaft (MAG side) |
| 21 |
420888283 |
Rod Repair Kit (MAG side) |
| 22 |
293800060 |
Loctite 243, 10 ml |
| 23 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 24 |
219703000 |
Sealant Loctite 648 This part replaces 293800039. |
| 25 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 26 |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 420888284 |
Rod |
Repair Kit (PTO side) 420888284 |
