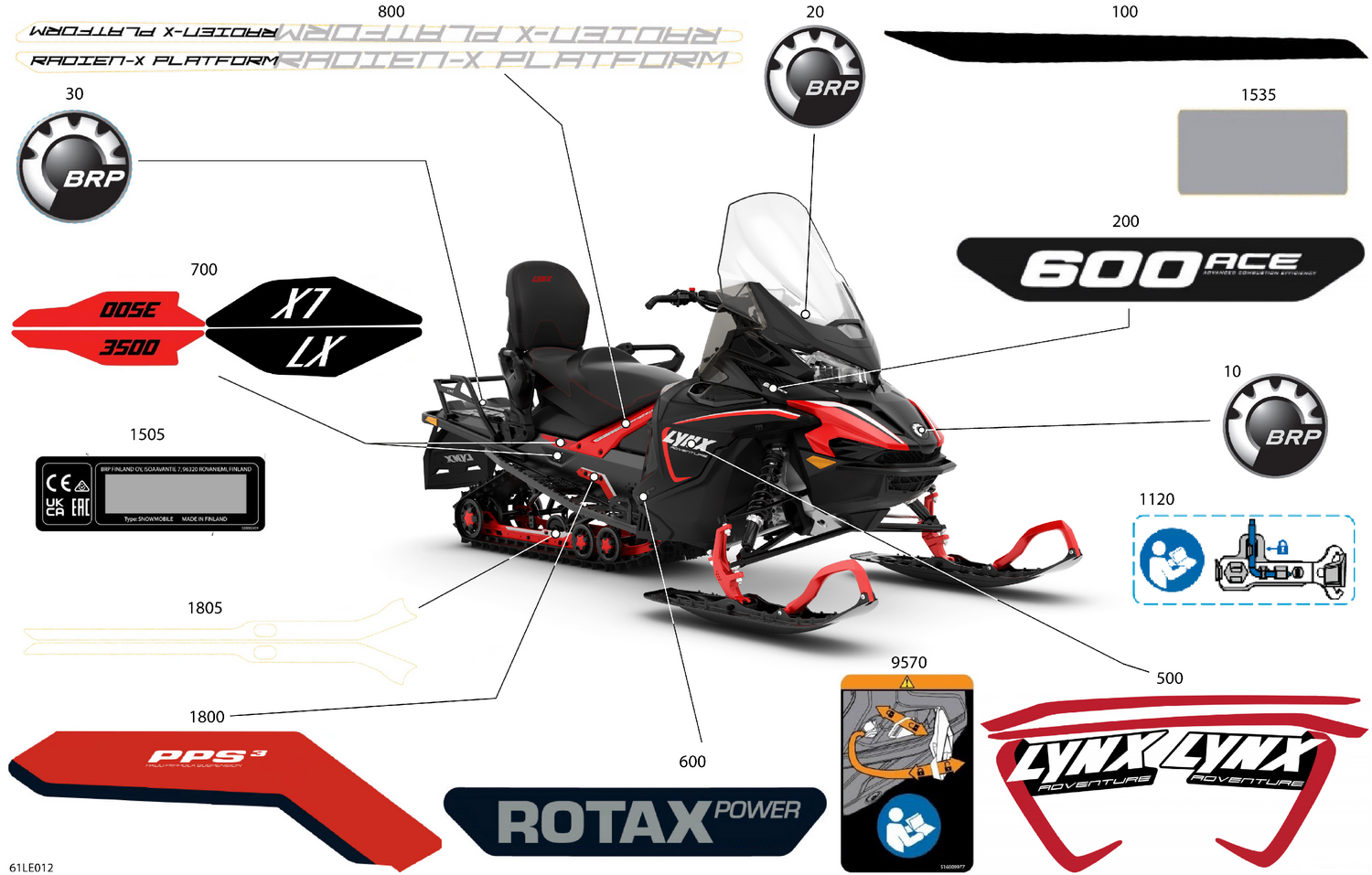

07- Body - Decals
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909041 | Emblem Logo BRP 68 MM UV |
| 20 | 516010651 | BRP Logo 20 MM x 2 MM |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 100 | 516009426 | LH/RH Hood Decal |
| 200 | 516009207 | LH/RH Upper Side Panel Decal "600 Ace" |
| 500 | 516010660 | LH/RH Side Panel Decal |
| 600 | 516012693 | Decal Rotax Power |
| 700 | 516009692 | LH/RH Frame Decals "LX 3500" |
| 800 | 516009430 | LH/RH Decals "Radien-X Platform" |
| 1120 | 516011629 | Tool Instruction Label |
| 1505 | 520002459 | Conformity Decal CE UK CA EAC RCM |
| 1535 | 516009954 | Protective Decal |
| 1800 | 516011115 | Decal PPS3 |
| 1805 | 516011051 | Decal Rave RE PPS3 |
