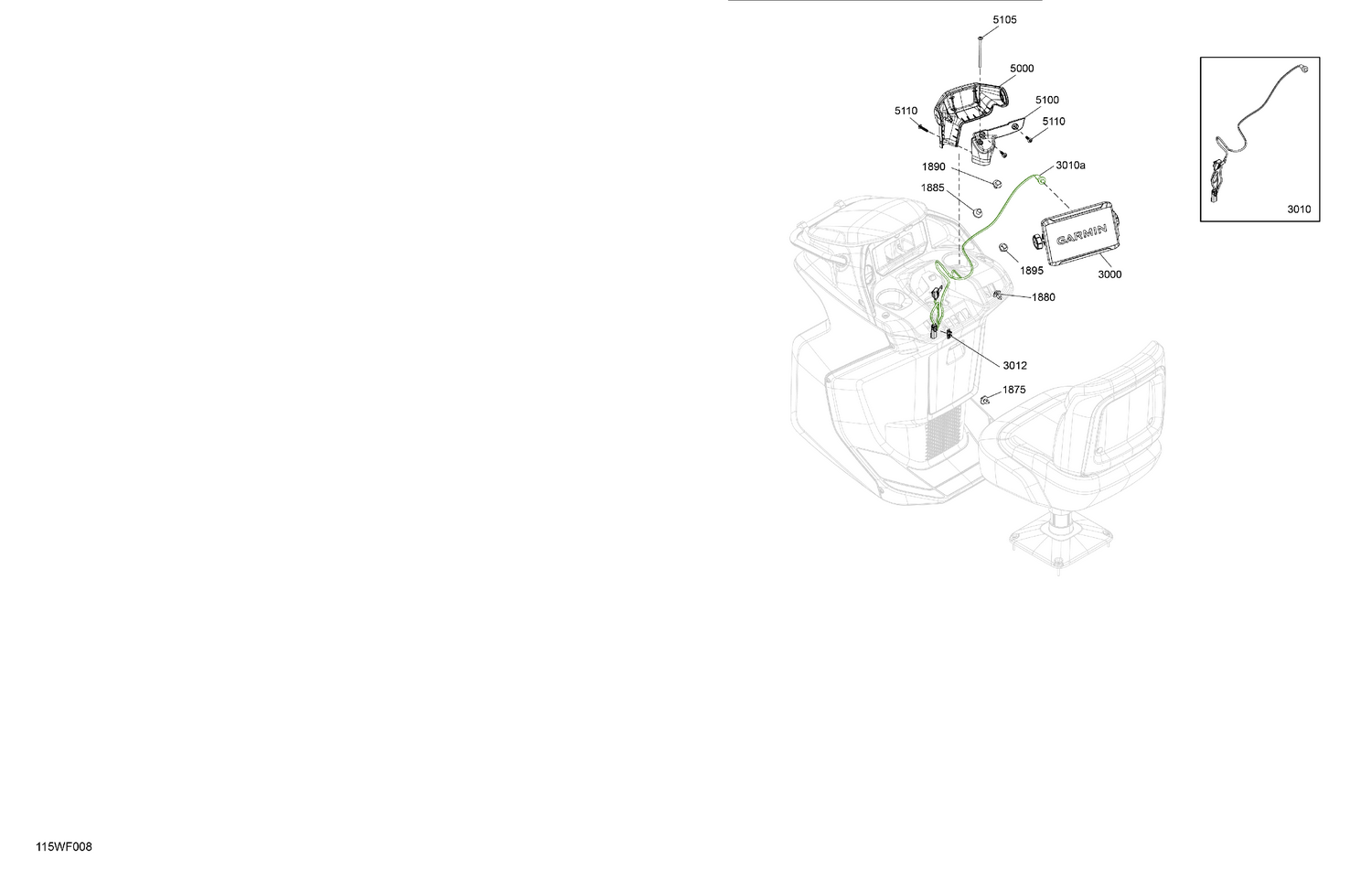

08- ELECTRIC - Garmin ECHOMAP UHD 72sv GPS
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1875 | 710008294 | Mount Dart |
| 1880 | 710008294 | Mount Dart |
| 1885 | 710008294 | Mount Dart |
| 1890 | 710008294 | Mount Dart |
| 1895 | 710008294 | Mount Dart |
| 3000 | 278004783 | GPS Receiver |
| 3010a | 278003975 | Power Supply Cable |
| 3012 | 515178223 | Clip Connector |
| 5000 | 281000213 | Rear GPS Support |
| 5100 | 281000214 | Front GPS Support |
| 5105 | 250001163 | Cone Torx Truss Screw HD.M6 X 100 |
