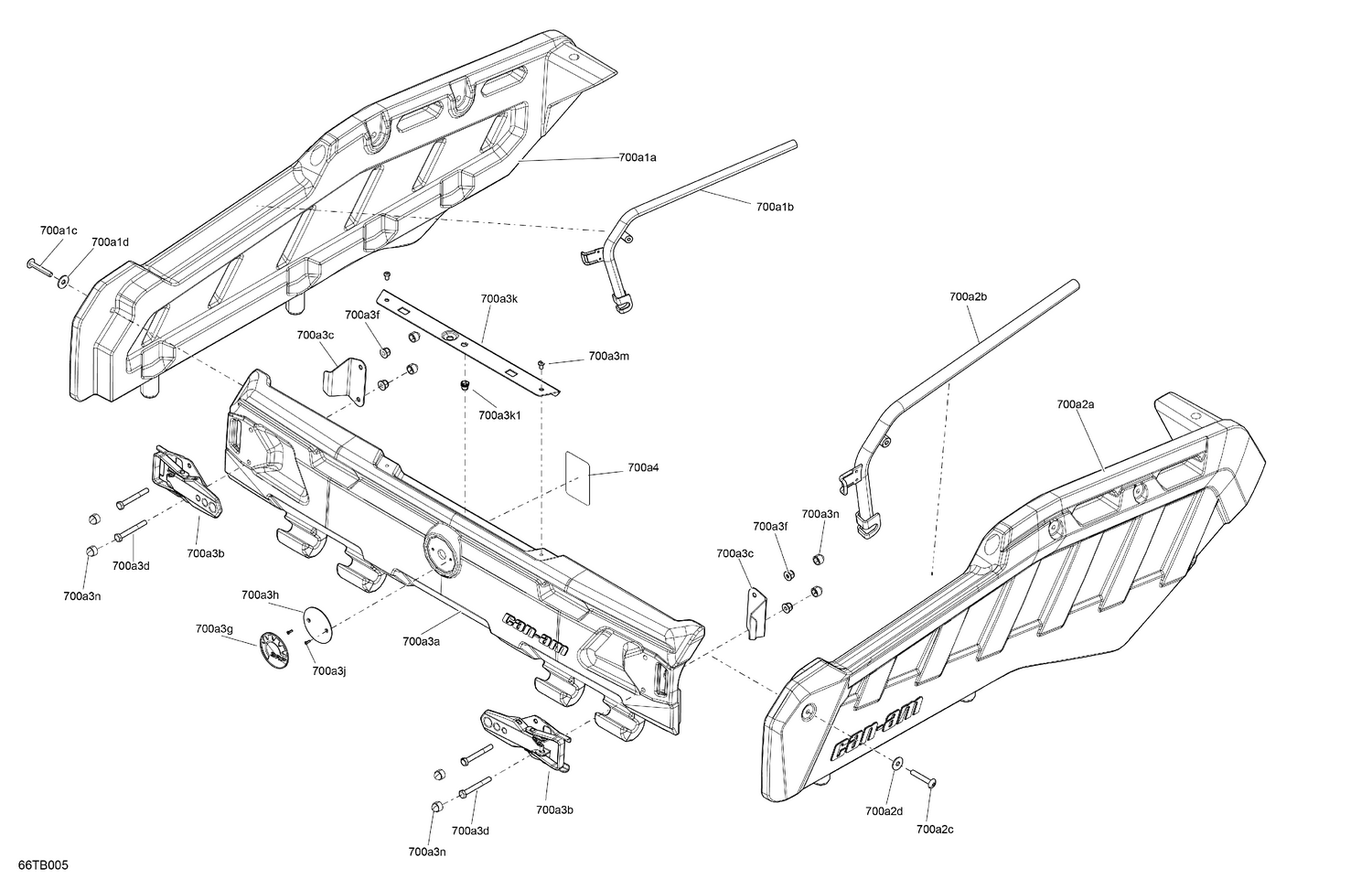

07- Body - Cargo Wall
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 700a1a | 708303727 | Black, LH Side Panel |
| 700a1b | 708302800 | LH Side Railing |
| 700a1c | 250000761 | Torx Truss Screw M8 X 50 |
| 700a1d | 234082670 | Stainless Steel Flat Washer |
| 700a2a | 708303728 | Black, RH Side Panel |
| 700a2b | 708302799 | RH Side Railing |
| 700a2c | 250000761 | Torx Truss Screw M8 X 50 |
| 700a2d | 234082670 | Stainless Steel Flat Washer |
| 700a3a | 708303729 | Black, Tailgate |
| 700a3b | 511001014 | Latch Ass'y |
| 700a3c | 708301005 | Latch Fixing Plate |
| 700a3d | 207086544 | Hex. Screw M8 x 65 |
| 700a3f | 233281414 | Hex. Flange Elastic Nut M8 |
| 700a3g | 516008739 | BRP Logo 68mm |
| 700a3h | 708301177 | Logo Base |
| 700a3j | 250000698 | Countersunk Head Screw K30 X 10 |
| 700a3k1 | 605636002 | Clinch Nut Hexsert M8 |
| 700a3m | 250000767 | Torx Truss Screw M6 X 12 |
| 700a3n | 28056 | Cover |
| 700a4 | 704904233 | Warning Label |
