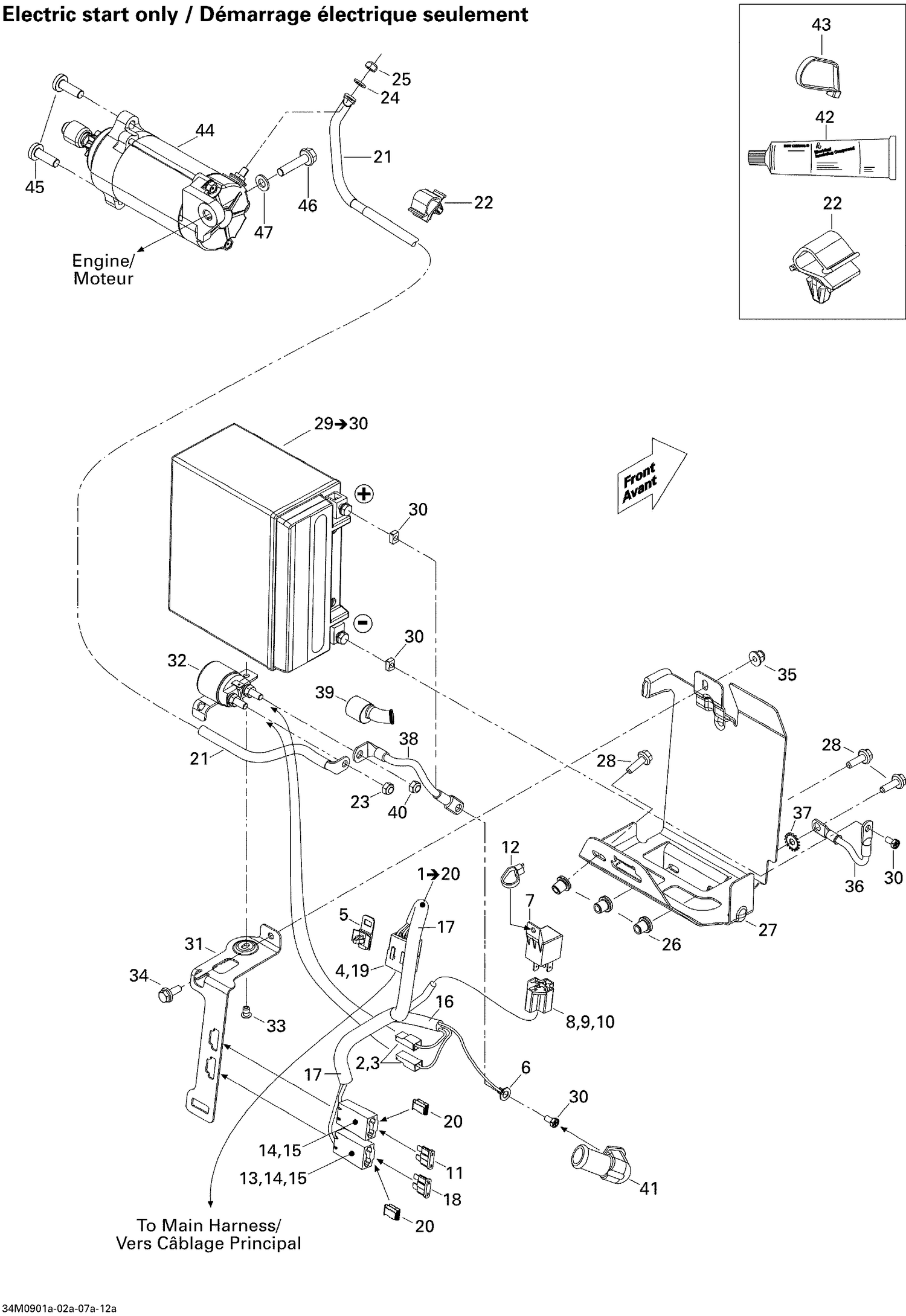

Parts Catalog

10- Battery And Starter 800R

Parts (47)

Ref	Part Number	Description
2	409010100	Female Terminal
3	409010400	Female Terminal Housing, 1 Circuit
4	515175232	Male Terminal
5	515175283	Housing Support
6	278000992	Open Barrel
7	710010053	Relay This part replaces 410113200.
8	409209900	Female Housing, 5 Circuits
9	561503100	FEMALE TERMINAL - Call your local BRP dealership
10	561503100	FEMALE TERMINAL - Call your local BRP dealership
11	410917200	Fuse, 30 Amperes
12	293750002	Tie Wrap 142 mm
13	409011600	Female Terminal
14	409004200	Female Terminal
15	409004000	Fuse Holder
16	219704425	Tubing 6 Mm 3000Mm Long
17	219704399	Was 409901700 Tubing (9 mm)
18	278000344	Fuse, 5 Amperes
19	515175817	Male Terminal Housing, 8 Circuits
20	710000992	Clip
21	515177067	BATTERY WIRE - Call your local BRP dealership This part replaces 515176785.
22	515176795	Tie Rap Mount (screwable)
23	232561414	Elastic Stop Nut M6
24	234061410	Flat Washer 6 mm
25	232561414	Elastic Stop Nut M6
26	293450275	Insert This part replaces 415107300.
27	515176886	BATTERY SUPPORT ASS'Y - Call your local BRP dealership This part replaces 515176830.
28	207662044	Hex. Flange Screw M6 X 20
30	250000282	Battery Bolt Kit This part replaces 295500849.
31	515177008	BATTERY STRIP - Call your local BRP dealership This part replaces 515176368.
32	515176501	Starter Relay
33	390402200	Pop Rivet 3/16"
34	207661644	Hex. Flange Screw M6 X 16
35	233261414	Hex. Flange Elastic Nut M6 x 1.0
36	515176358	Ground Wire
37	250200041	Lock Washer Serrated M6
38	515176556	BATTERY WIRE - Call your local BRP dealership
39	515175919	Protector Cap
40	232561414	Elastic Stop Nut M6
41	710000495	Protector Cap
42	219704453	Was 293550004 Dielectric Grease, 150 g
43	293750001	Tie Wrap 94 mm
43	293750002	Tie Wrap 142 mm
43	293750008	Tie Wrap 368 mm
43	414115200	Tie-Rap 180 mm
44	515178473	Starter This part replaces 515176754.
45	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
46	207583544	Hex Flange Screw M8 X 35, Scotch Grip
