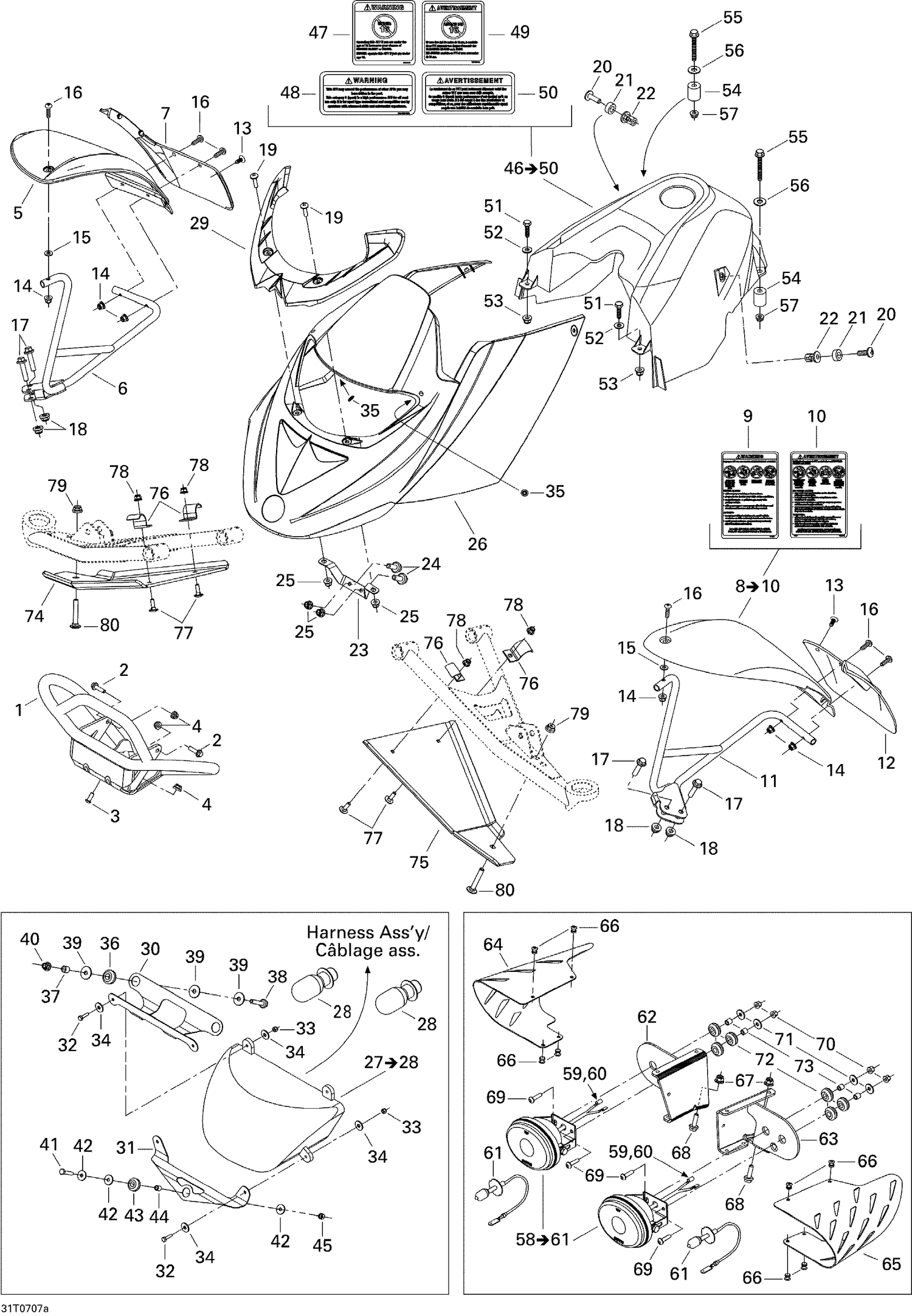

| Ref | Part Number | Description |
|---|
| 1 |
715000172 |
BUMPER DS - Call your local BRP dealership This part replaces 705000387. |
| 2 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 3 |
205482060 |
Socket Head Screw M8 X 20 |
| 4 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 5 |
705000360 |
RH FRONT FENDER, BLACK - Call your local BRP dealership |
| 6 |
705001090 |
RH FRONT FENDER SUPPORT - Call your local BRP dealership |
| 7 |
705000095 |
RH FRONT MUDGUARD - Call your local BRP dealership |
| 11 |
705001091 |
LH FRONT FENDER SUPPORT - Call your local BRP dealership |
| 12 |
705000096 |
LH FRONT MUDGUARD - Call your local BRP dealership |
| 13 |
414939500 |
Dart |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
224061201 |
Flat Washer |
| 16 |
250000032 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 17 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 18 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 19 |
250000147 |
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 20 |
250000043 |
Phillips Screw M6 X 20, Scotch Grip |
| 21 |
506117300 |
BUSHING - Call your local BRP dealership |
| 22 |
732610057 |
JACK NUT M6 - Call your local BRP dealership |
| 23 |
705000146 |
FASCIA BRACKET, BLACK - Call your local BRP dealership |
| 24 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
705000888 |
FRONT FASCIA, BLACK - Call your local BRP dealership |
| 28 |
710000685 |
BULB - Call your local BRP dealership |
| 29 |
705000806 |
Headlamp Cover |
| 30 |
705000905 |
SUPERIOR LAMP BRAKET - Call your local BRP dealership |
| 31 |
705000904 |
LAMP SUPPORT - Call your local BRP dealership |
| 32 |
207141644 |
HEX. SCREW M4 X 16 - Call your local BRP dealership |
| 33 |
232541414 |
Elastic Stop Nut M4 |
| 34 |
234042600 |
Flat Washer 4 mm, Stainless |
| 35 |
732610072 |
Push Nut |
| 36 |
709000582 |
Grommet This part replaces 293720053. |
| 37 |
293900105 |
Bushing This part replaces 293900045. |
| 38 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 39 |
224061201 |
Flat Washer |
| 40 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 41 |
207152544 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 42 |
517124300 |
Washer |
| 43 |
414036300 |
Grommet |
| 44 |
293900112 |
Bushing This part replaces 517245900. |
| 45 |
232551414 |
Elastic Stop Nut M5 |
| 47 |
704900011 |
Warning Decal, Under 16 Years Old This part replaces 704900113. |
| 48 |
704900089 |
WARNING DECAL, PERFORMANCE - Call your local BRP dealership |
| 49 |
704900012 |
Warning Decal, Under 16 Years Old |
| 50 |
704900105 |
Warning Decal,, Performance |
| 51 |
207063044 |
Hex. Screw M6 X 30 |
| 52 |
224061201 |
Flat Washer |
| 53 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 54 |
705000114 |
SPACER - Call your local BRP dealership |
| 55 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 56 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 57 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 59 |
278001009 |
Female Terminal |
| 60 |
278001007 |
Insulated Sheath |
| 61 |
710000776 |
BULB H3 35W - Call your local BRP dealership |
| 62 |
705000397 |
RH HEADLAMP SUPPORT - Call your local BRP dealership |
| 63 |
705000398 |
LH Headlamp Support |
| 64 |
705000399 |
RH HEADLAMP PROTECTOR - Call your local BRP dealership |
| 65 |
705000400 |
LH HEADLAMP PROTECTOR - Call your local BRP dealership |
| 66 |
390402000 |
Pop Rivet 3/16" |
| 67 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 68 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 69 |
205452046 |
SOCKET HEAD SCREW M5 X 20 - Call your local BRP dealership |
| 70 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 71 |
391301600 |
Washer |
| 72 |
414036300 |
Grommet |
| 73 |
293900112 |
Bushing This part replaces 517245900. |
| 74 |
705001055 |
LH Arm Protector |
| 75 |
705001056 |
RH Arm Protector |
| 76 |
705001057 |
BRAKET - Call your local BRP dealership |
| 77 |
207762044 |
Carriage Bolt M6 X 20 |
| 78 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 79 |
233281414 |
Hex. Flange Elastic Nut M8 |
