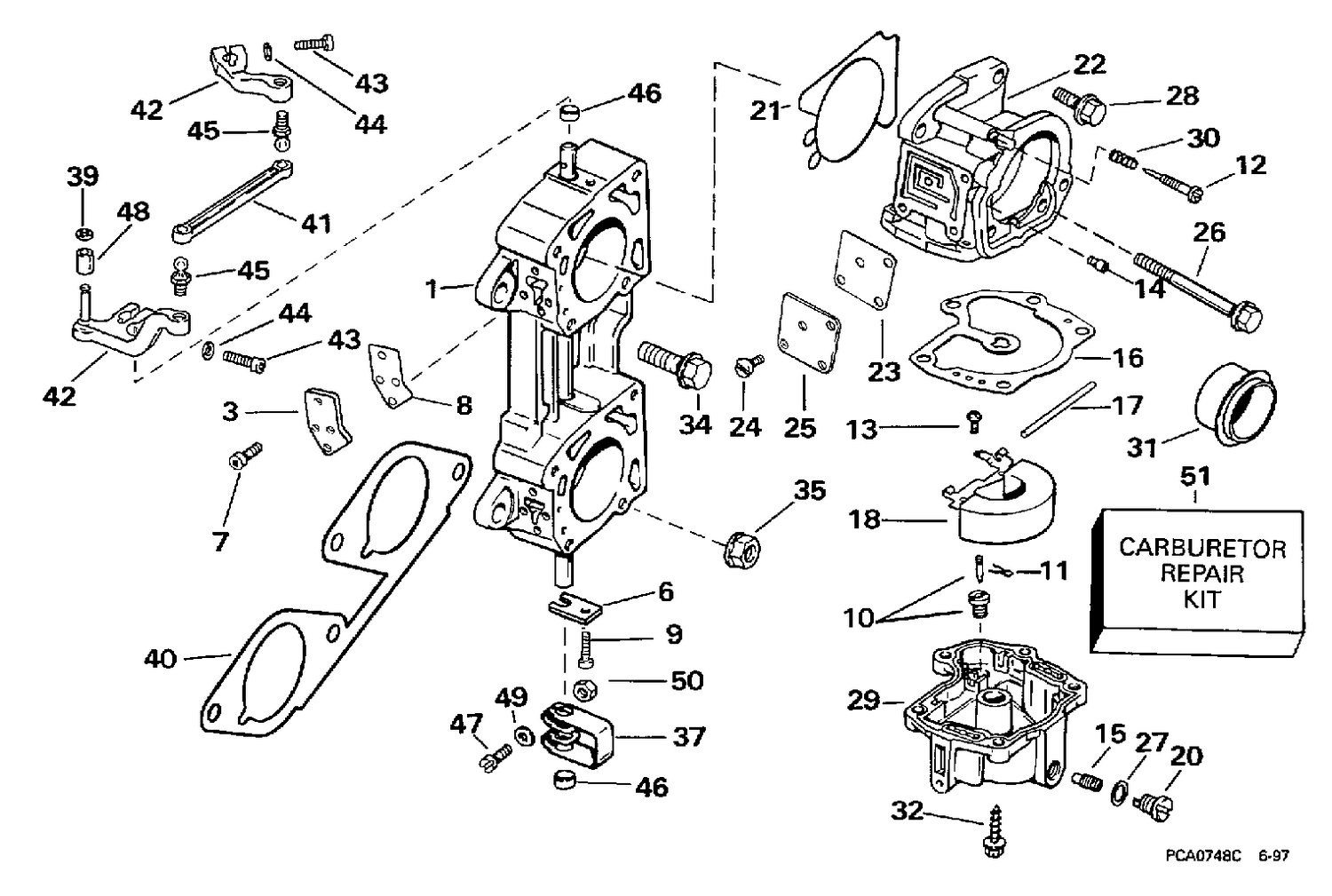

| Ref | Part Number | Description |
|---|
| 1 |
0439510 |
CARBURETOR ASSY., Lower |
| 11 |
0336842 |
CLIP, SPRING |
| 26 |
0335223 |
VIS, poignée vers capot bâbord/tribord |
| 35 |
0316355 |
BUT, Carburetor mounting |
| 37 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0327071. |
| 39 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 40 |
0332319 |
GASKET, Carburetor mounting |
| 41 |
0341622 |
LINK |
| 42 |
0437604 |
LEVER & PIN ASSY., Starboard |
| 42 |
0437687 |
LEVER & BALL ASSY., Port |
| 46 |
0317162 |
BUSHING, Link |
| 47 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0337041. |
| 48 |
0432639 |
GALET, contre-came |
| 0439509 |
0439509 |
CARBURETOR ASSY. |
