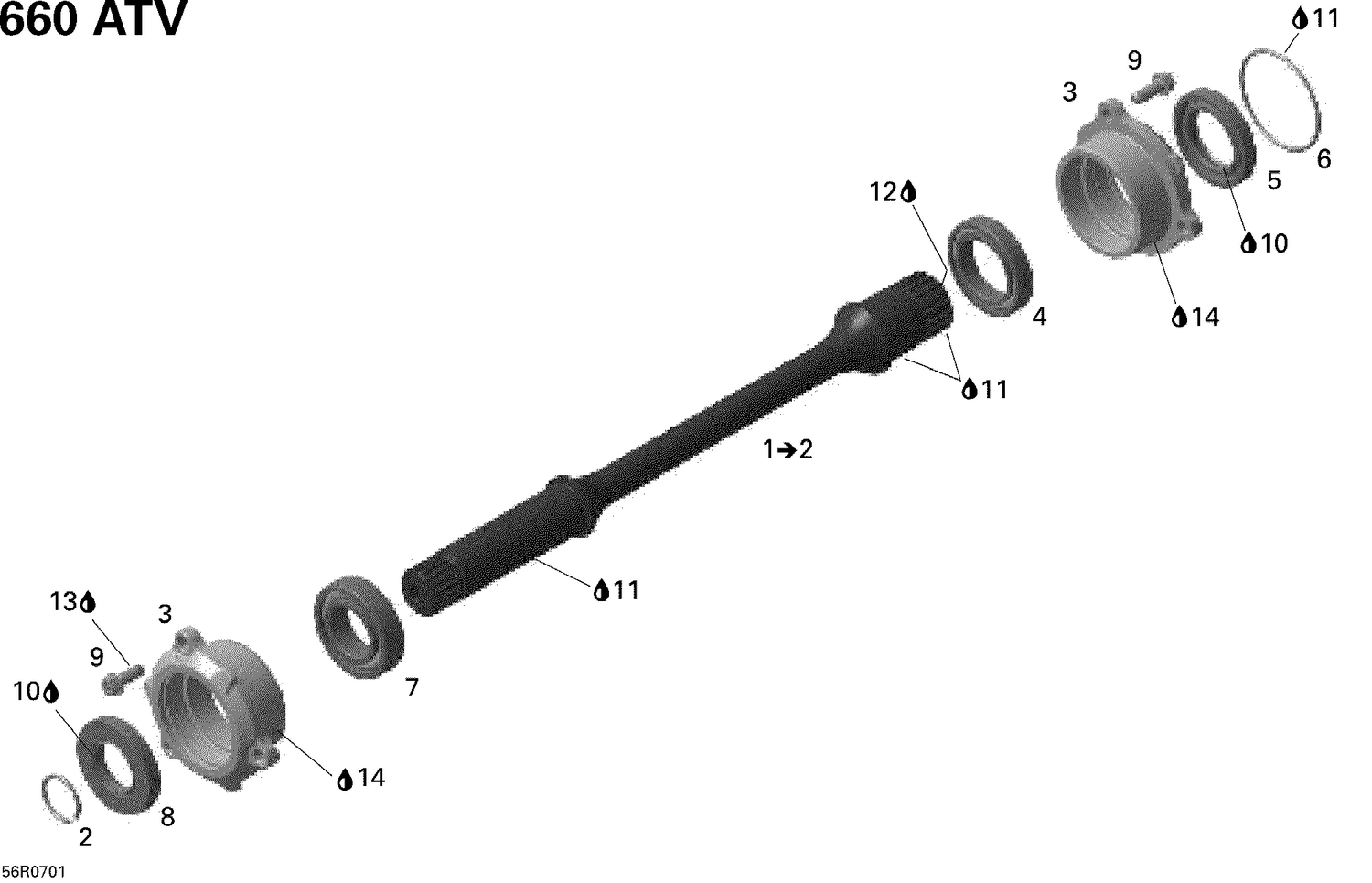

| Ref | Part Number | Description |
|---|
| 2 |
420245010 |
Circlip |
| 3 |
420611223 |
Bearing Cover This part replaces 420611221. |
| 4 |
420632275 |
Ball Bearing |
| 5 |
420850055 |
Oil Seal |
| 6 |
420230306 |
O-Ring This part replaces 420230305. |
| 7 |
420232342 |
Ball Bearing This part replaces 420232340. |
| 8 |
420430580 |
Oil Seal This part replaces 420430589. |
| 9 |
420641048 |
Torx Flange Screw M6 X 16 This part replaces 420440167. |
| 10 |
293550030 |
Grease, Super Lube |
| 11 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039. |
| 12 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 13 |
293800060 |
Loctite 243, 10 ml |
