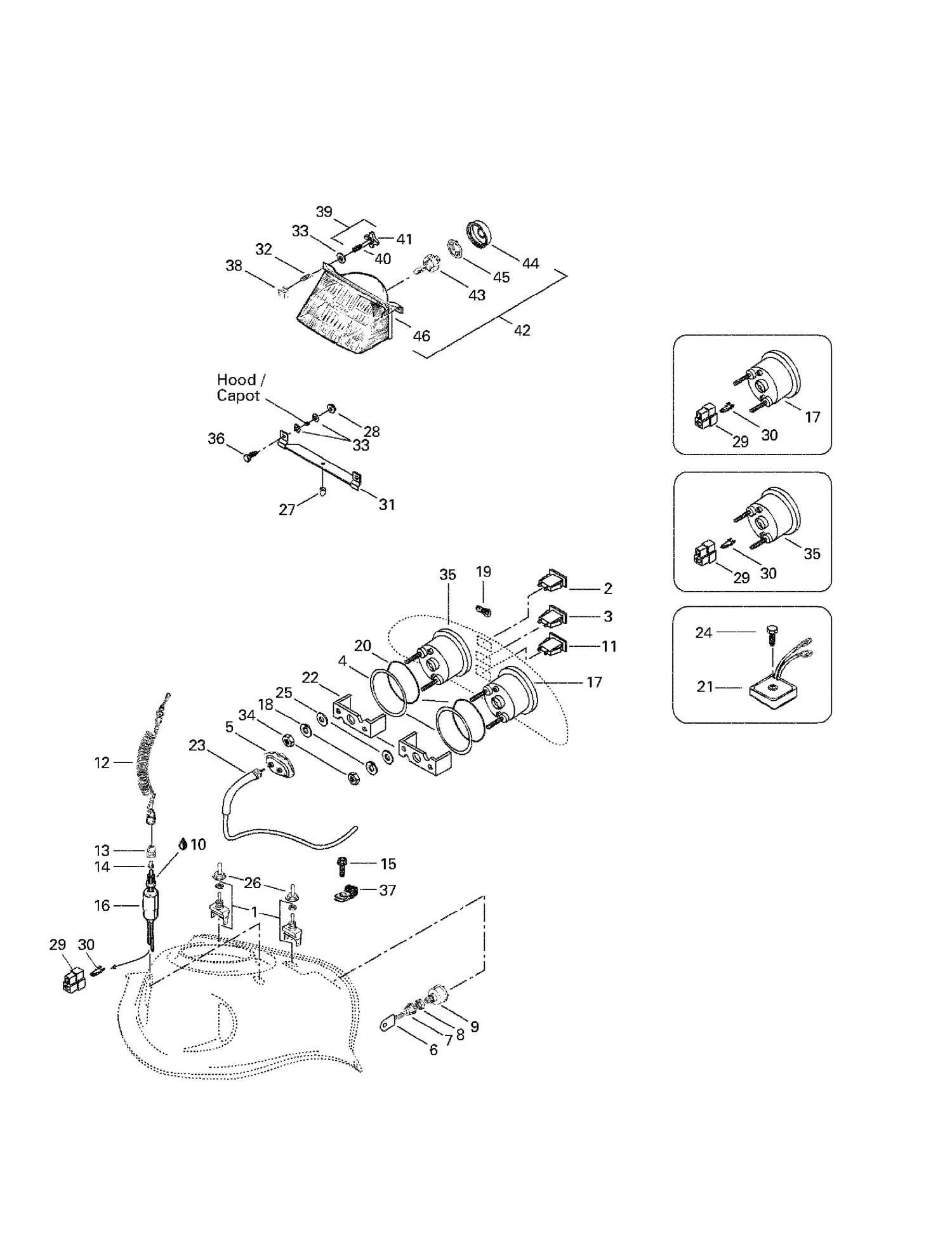

10- Electrical System
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 410107300 | Switch (Heating Grip) |
| 2 | 410109500 | Pilot Lamp (Red) |
| 3 | 410109600 | Pilot Lamp (Blue) |
| 4 | 517258500 | Washer |
| 5 | 572022300 | Drive Angle |
| 6 | 415129350 | BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 7 | 570013700 | Switch Boot |
| 8 | 410112100 | FACE NUT - Call your local BRP dealership |
| 9 | 410111300 | IGNITION SWITCH - Call your local BRP dealership |
| 10 | 293550004 | Dielectric Grease, 150 g This part replaces 413701700. |
| 11 | 410109700 | Pilot Lamp, Engine Temperature |
| 12 | 515178283 | Cap Ass'y This part replaces 515151500. |
| 13 | 515145900 | Switch Nut |
| 14 | 570151100 | Plunger Cap |
| 15 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 16 | 515175653 | Brake Switch This part replaces 410106700. |
| 17 | 415096300 | Speedometer (KMH) |
| 18 | 414806700 | Lock Washer |
| 19 | 410504200 | INSTRUMENTATION BULB - Call your local BRP dealership |
| 20 | 414807100 | O-Ring |
| 21 | 515163800 | VOLTAGE REGULATOR - Call your local BRP dealership |
| 22 | 414806500 | Case Holder |
| 23 | 414761400 | Speedometer Cable |
| 24 | 732600016 | Hex. Screw M6 x 35 |
| 25 | 517225900 | Flat Washer This part replaces 414806800. |
| 26 | 515175281 | Switch Cover This part replaces 570013900. |
| 27 | 410608200 | RUBBER STOPPER - Call your local BRP dealership |
| 28 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 29 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 30 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 31 | 517218500 | Headlamp Support |
| 32 | 517168600 | Spring |
| 33 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 34 | 414806900 | Nut |
| 35 | 415096500 | Tachometer |
| 36 | 207151644 | Hex. Screw M5 X 16 This part replaces 222051665. |
| 37 | 414176000 | Open Clamp |
| 38 | 572078600 | Projector Nut |
| 40 | 732603004 | Screw M4 x 40 |
| 41 | 572106600 | Handle |
| 43 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 44 | 410607100 | PROTECTOR CAP - Call your local BRP dealership |
