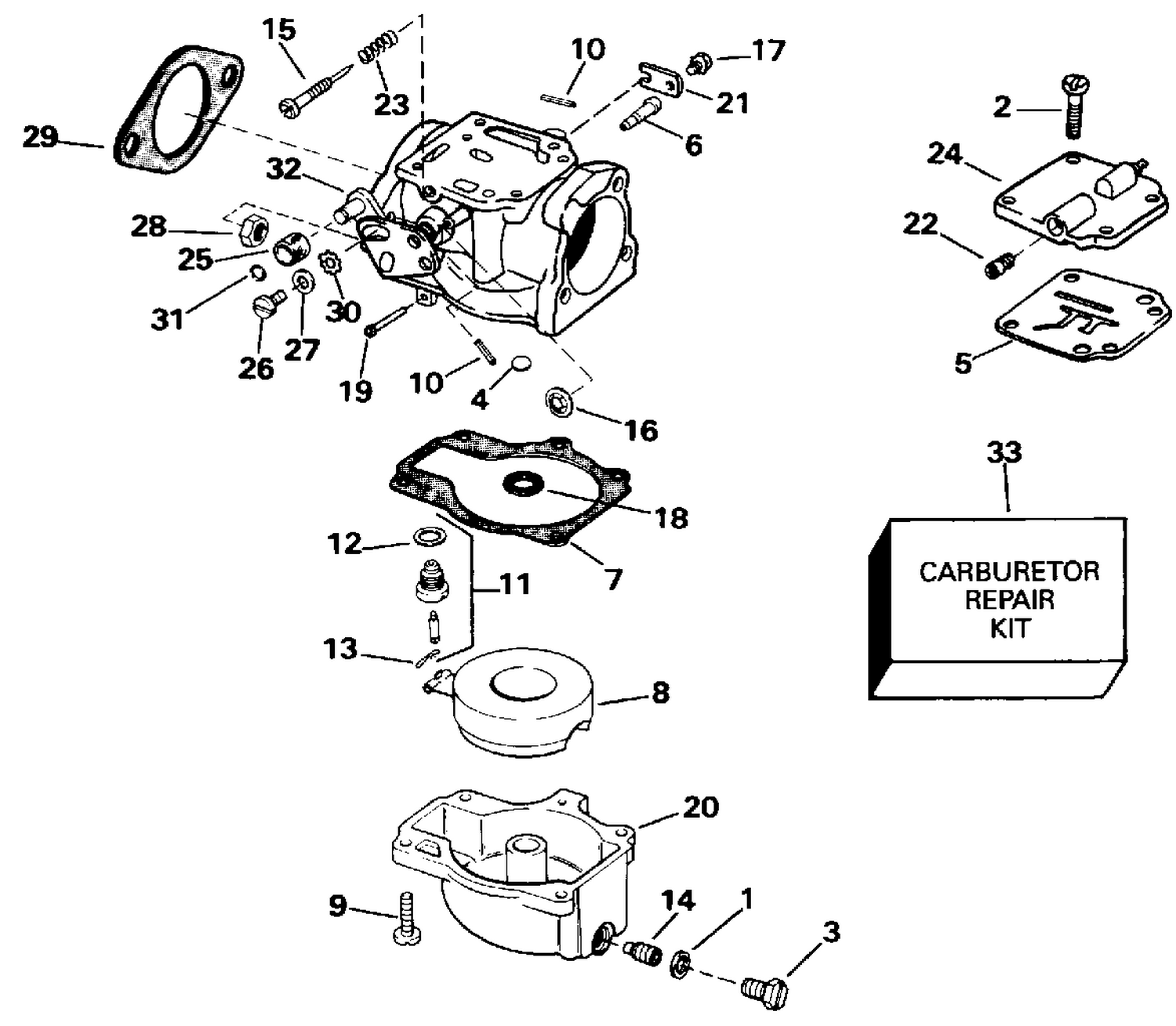

CARBURETOR LATE PRODUCTION-70 MODELS ONLY
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 13 | 0336842 | CLIP, SPRING |
| 14 | 0326526 | ORIFICE PLUG, #50 D - 50 models |
| 15 | 0337806 | NEEDLE VALVE, Slow speed |
| 25 | 0432639 | GALET, contre-came |
| 26 | 0306014 | VIS, ancrage |
| 28 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 29 | 0325092 | GASKET |
| 31 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 32 | 0432638 | LEVER & PIN |
| 0435385 | 0439452 | CARBURETOR ASSEMBLY This part replaces 0435385. |
| 0435911 | 0439452 | CARBURETOR ASSEMBLY This part replaces 0435911. |
