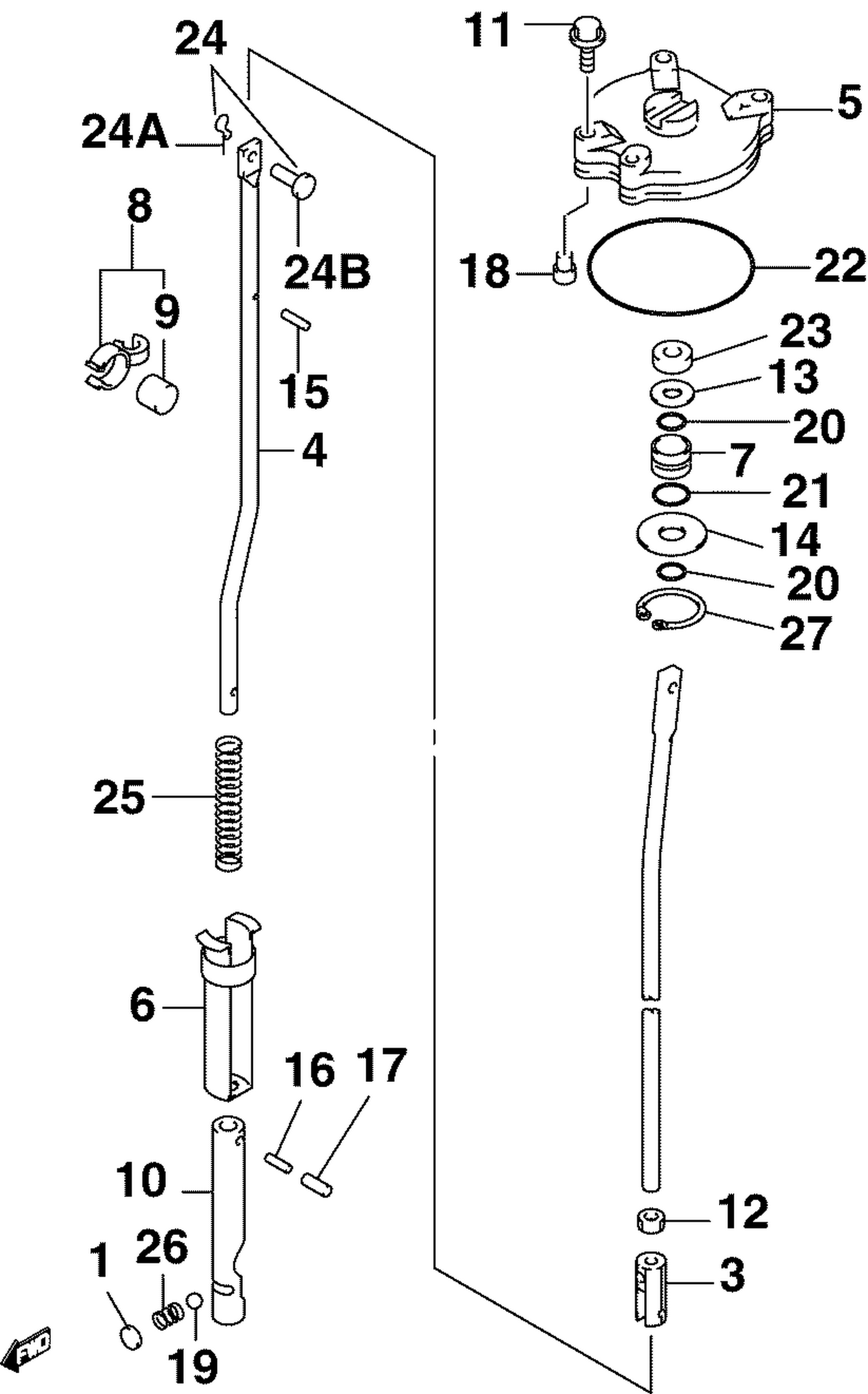

SHIFT ROD LINKAGE
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030763 | PLATE, Clutch |
| 3 | 5030772 | CONNECTOR, Clutch rod |
| 4 | 5032597 | ROD, Shift |
| 6 | 5030775 | COLLAR, Shift rod spring |
| 7 | 5030776 | GUIDE, Shift rod |
| 8 | 5030777 | MAGNET ASSY |
| 10 | 5030779 | CAM, Clutch |
| 11 | 5030396 | BOLT (6X20) |
| 12 | 5030052 | NUT |
| 13 | 5031167 | WASHER (9X19X1.0mm) |
| 14 | 5030435 | WASHER (9X30X1.6mm) |
| 15 | 5030513 | GOUPILLE ÉLASTIQUE |
| 17 | 5030514 | PIN |
| 18 | 5030517 | PIN, Dowel |
| 19 | 5030096 | BALL |
| 20 | 5030534 | O RING |
| 21 | 5030538 | O RING |
| 22 | 5030544 | O RING |
| 23 | 5030551 | SEAL |
| 25 | 5030596 | SPRING |
| 26 | 5030596 | SPRING |
