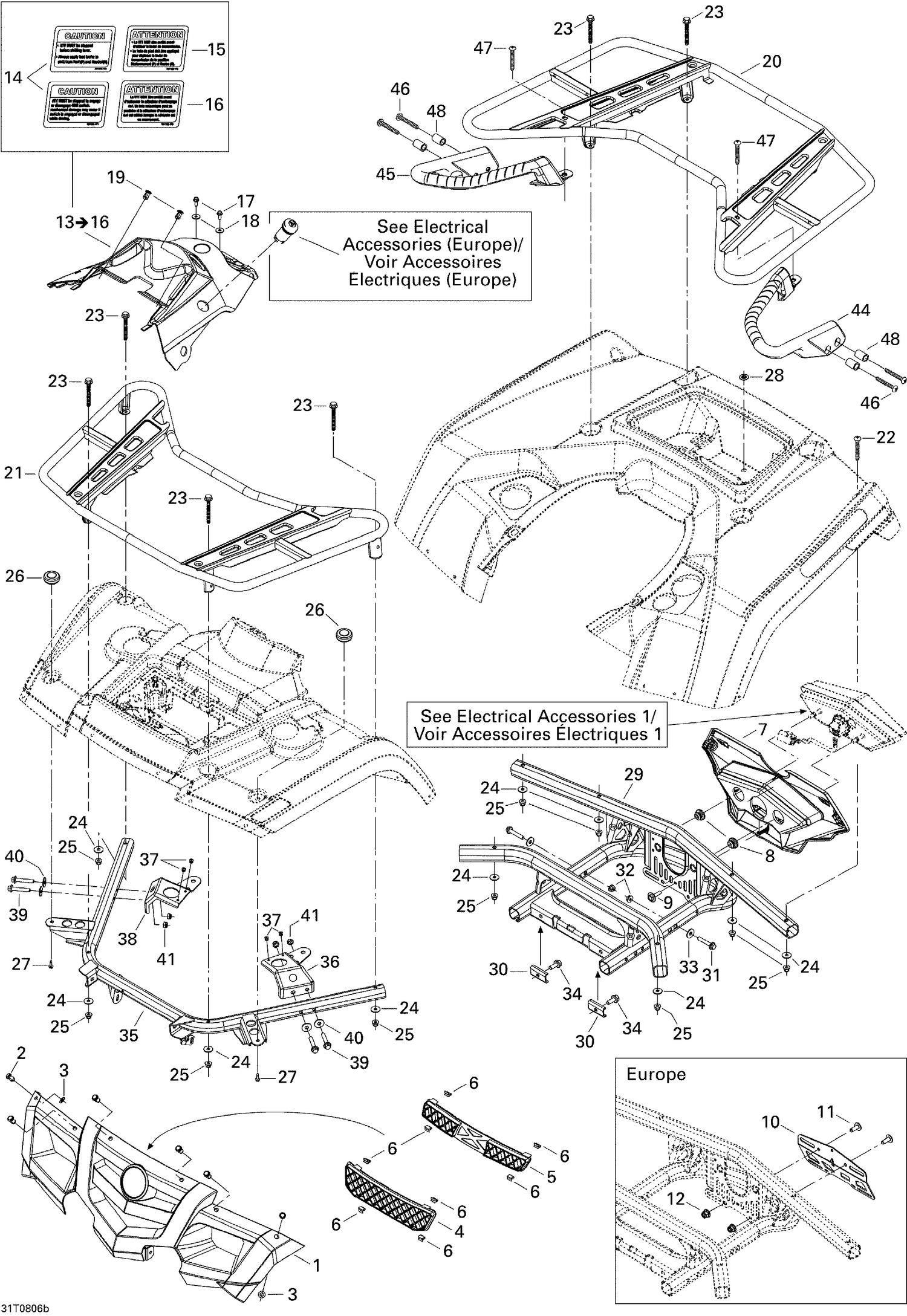

| Ref | Part Number | Description |
|---|
| 2 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 3 |
506151252 |
Washer |
| 4 |
705001679 |
LOWER GRILL - Call your local BRP dealership |
| 5 |
705001901 |
UPPER GRILL - Call your local BRP dealership |
| 6 |
517306751 |
Clip This part replaces 517302674. |
| 7 |
705003840 |
Rear Facia This part replaces 705002464. |
| 8 |
705014429 |
Rubber Stopper This part replaces 705001119. |
| 9 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 14 |
704900434 |
Caution Decal, Lever And 4wd Switch |
| 15 |
704900475 |
Caution Decal, Shifting Lever |
| 16 |
704900476 |
CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership |
| 17 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 18 |
250200082 |
Flat Washer This part replaces 391302000. |
| 19 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 20 |
705002617 |
Rear Luggage Rack This part replaces 705001780. |
| 21 |
705002616 |
Front Luggage Rack This part replaces 705001769. |
| 22 |
250000749 |
Torx Truss Screw M6 X 50 This part replaces 250000239. |
| 23 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 24 |
224061201 |
Flat Washer |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
705002042 |
RUBBER CAP - Call your local BRP dealership |
| 27 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 28 |
414859400 |
CAP - Call your local BRP dealership |
| 29 |
705003656 |
Rear Support This part replaces 705002506. |
| 30 |
705003647 |
U Reinforcement This part replaces 705002668. |
| 31 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 32 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 33 |
234082410 |
Flat Washer 8 mm |
| 34 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 35 |
705003655 |
FRONT SUPPORT - Call your local BRP dealership This part replaces 705001455. |
| 36 |
705000692 |
LH ANCHOR PLATE - Call your local BRP dealership |
| 37 |
390402300 |
Pop Rivet 3/16" |
| 38 |
705002997 |
RH Anchor Plate This part replaces 705000693. |
| 39 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 40 |
234082410 |
Flat Washer 8 mm |
| 41 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 44 |
705001944 |
LH Handle |
| 45 |
705001945 |
RH Handle |
| 46 |
250000745 |
Hex Torx Truss M8 X30 This part replaces 250000197. |
| 47 |
250000746 |
Torx Truss Screw M8 X 16 This part replaces 250000198. |
