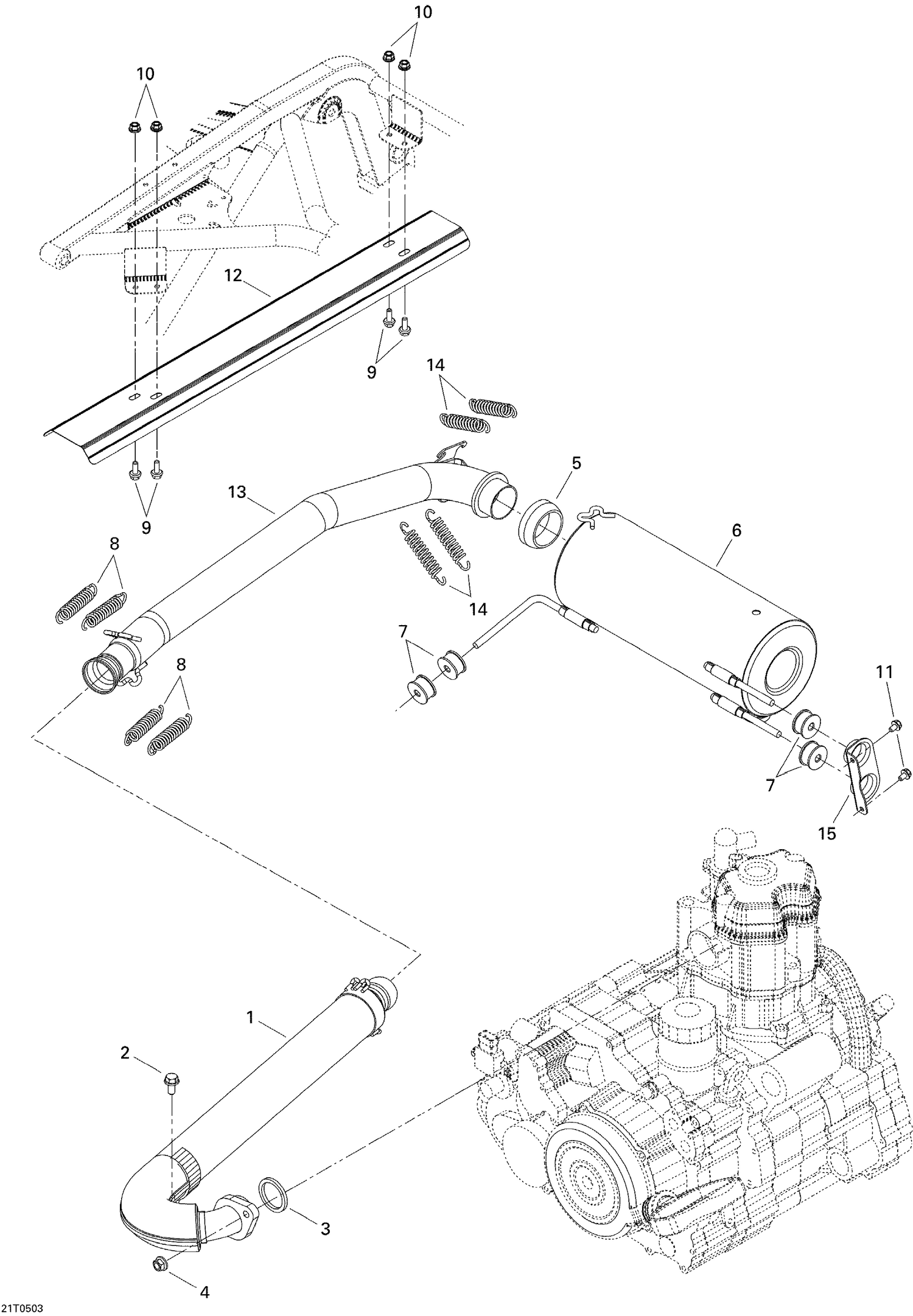

01- Exhaust System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707600062 | Tuned Pipe |
| 2 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 3 | 707600003 | GASKET - Call your local BRP dealership |
| 4 | 233081416 | Hex. Flange Nut M8 |
| 5 | 707600164 | Pipe Gasket |
| 6 | 707600258 | Muffler |
| 7 | 707600702 | Anti-Vibration Rubber This part replaces 707600012. |
| 8 | 415107100 | Spring |
| 9 | 207661646 | Hex. Flange Screw M6 X 16 |
| 10 | 233061414 | Hex. Flange Nut M6 |
| 11 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 12 | 707600202 | Heat Shield |
| 13 | 707600259 | Tuned Pipe |
| 14 | 707600177 | SPRING - Call your local BRP dealership |
