Home / BRP / 2010 / MX Z / MX Z TNT 600, 2010 000MFAA00 000MFAB00 / 01- Engine And Engine Support

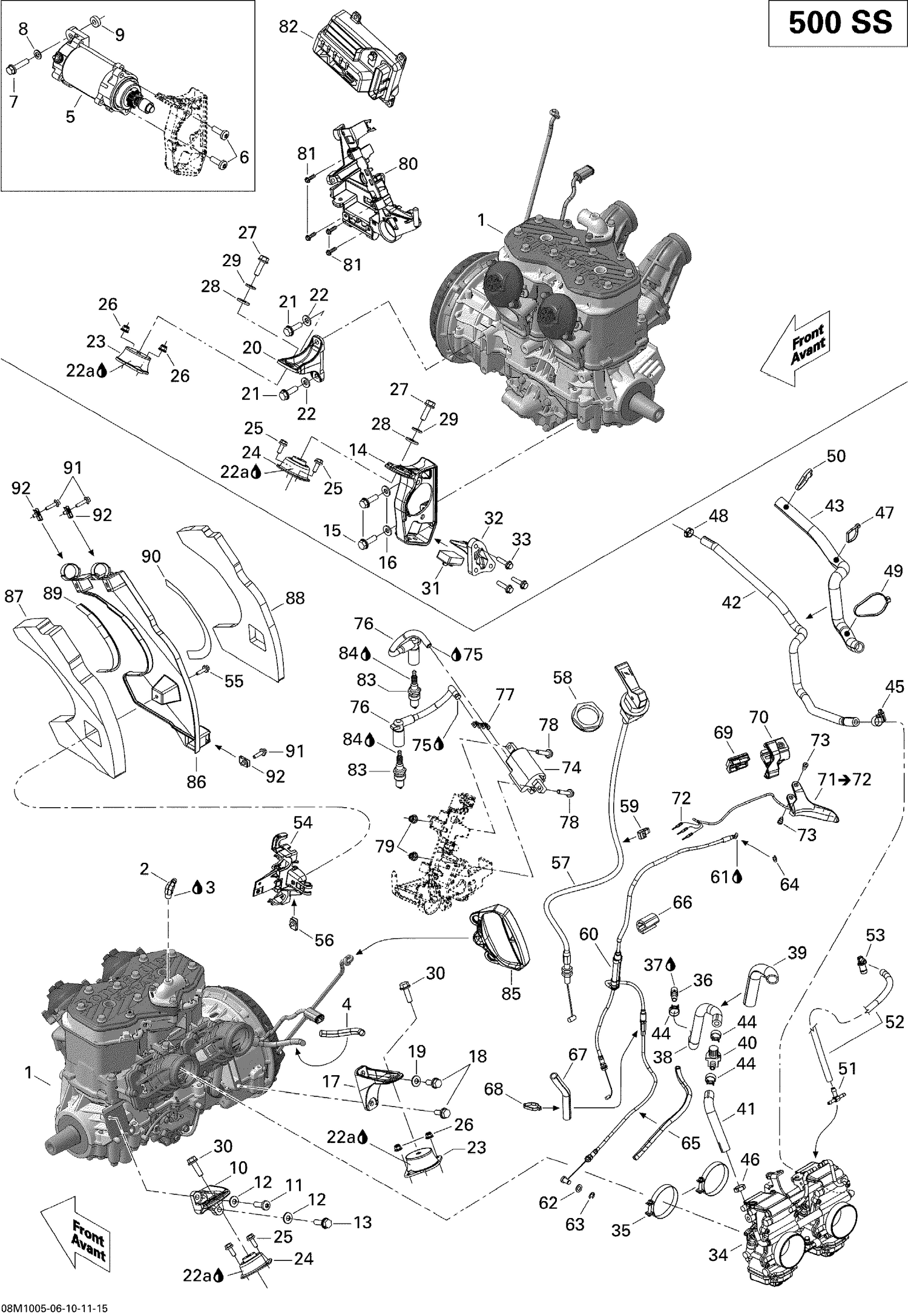

01- Engine And Engine Support

01- Engine And Engine Support

Parts (86)

RefPart NumberDescription
1 400509789 Engine 600
2 293700045 ELBOW FITTING 90 - Call your local BRP dealership
3 219704455 Was 293800018 Loctite 592, 50 ml
4 219704407 Tubing 10 MM 1000MM Long
10 512060478 Rear Support, PTO
11 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
12 234281474 Conical Spring Washer M8
13 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
14 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060560.
15 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
16 234281474 Conical Spring Washer M8
17 512060559 Rear Support, MAG
18 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
19 234281474 Conical Spring Washer M8
20 512060469 Front Support, MAG
21 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
22 234281474 Conical Spring Washer M8
22a 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
23 512060729 Rubber Mount This part replaces 512060457.
24 512061507 Vibration Damper This part replaces 512060387.
25 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
26 233261414 Hex. Flange Elastic Nut M6 x 1.0
27 207583086 Hex. Flange Screw M8 X 30, Scotch Grip
28 503183200 Yellow, Washer
29 234281474 Conical Spring Washer M8
30 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000361.
31 512060179 STOPPER - Call your local BRP dealership
32 512060576 Stopper Support This part replaces 512060489.
33 207562544 Hex. Flange Screw M6 X 25
34 403138815 Carburetor Kit, TM40-B418 This part replaces 403138809.
35 512059835 Gemi Clamp
36 512060196 Male Connector 1/8"-27 NPT
37 219704455 Was 293800018 Loctite 592, 50 ml
38 512060355 Hose Formed
39 219704408 Tubing 16 Mm 1000Mm Long
40 512059324 Valve 5/16”
41 512060353 Hose Formed
42 512060347 Hose Formed
43 219704408 Tubing 16 Mm 1000Mm Long
44 414655700 Spring Clamp
45 293650084 Norma Clamp
46 293650125 Oetiker Clamp
47 414115200 Tie-Rap 180 mm
48 293650046 Oetiker Clamp
49 293750008 Tie Wrap 368 mm
50 414115200 Tie-Rap 180 mm
51 572045500 T-Fitting
52 219704410 Polyurethane Hose 10000Mm Long
53 414580700 Male Connector
54 512060298 Solenoid Support
55 207652044 Hex.Flange Screw M5 X 20
56 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
57 512060672 Choke Cable This part replaces 512060153.
58 512060671 Plastic Nut This part replaces 512060016.
59 414115200 Tie-Rap 180 mm
60 512060886 Throttle Cable This part replaces 512060546.
61 219704453 Was 293550004 Dielectric Grease, 150 g
62 234081100 Flat Washer 8 mm, Nylon
63 414753500 Circlip
64 414274500 Circlip
65 219704425 Tubing 6 Mm 3000Mm Long
66 512060313 Protector
67 219704407 Tubing 10 MM 1000MM Long
68 414115200 Tie-Rap 180 mm
69 512060198 Upper Housing Ass'y
70 512060860 Lower Housing This part replaces 512060430.
72 515175232 Male Terminal
73 732601143 Flange Screw
74 512059968 Ignition Coil
75 219704453 Was 293550004 Dielectric Grease, 150 g
76 512060291 Cable
77 410914600 Plastic Clip, Spark Plug Wire
78 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
79 233261414 Hex. Flange Elastic Nut M6 x 1.0
80 512060924 Coils Support This part replaces 512060278.
81 241151640 Hex. Flange Screw K50 X 2.24 X 16
82 512060680 Calibrated Module, 600 This part replaces 512060433.
83 512060354 Spark Plug NGK BR10ECS
84 219704453 Was 293550004 Dielectric Grease, 150 g
85 512060136 Starter Grip
86 512060338 Noise Shield
87 512060341 Inner Noise Foam
88 512060342 Outer Noise Foam
89 512060574 Heat Shield
90 512060575 Heat Shield
91 207652044 Hex.Flange Screw M5 X 20
