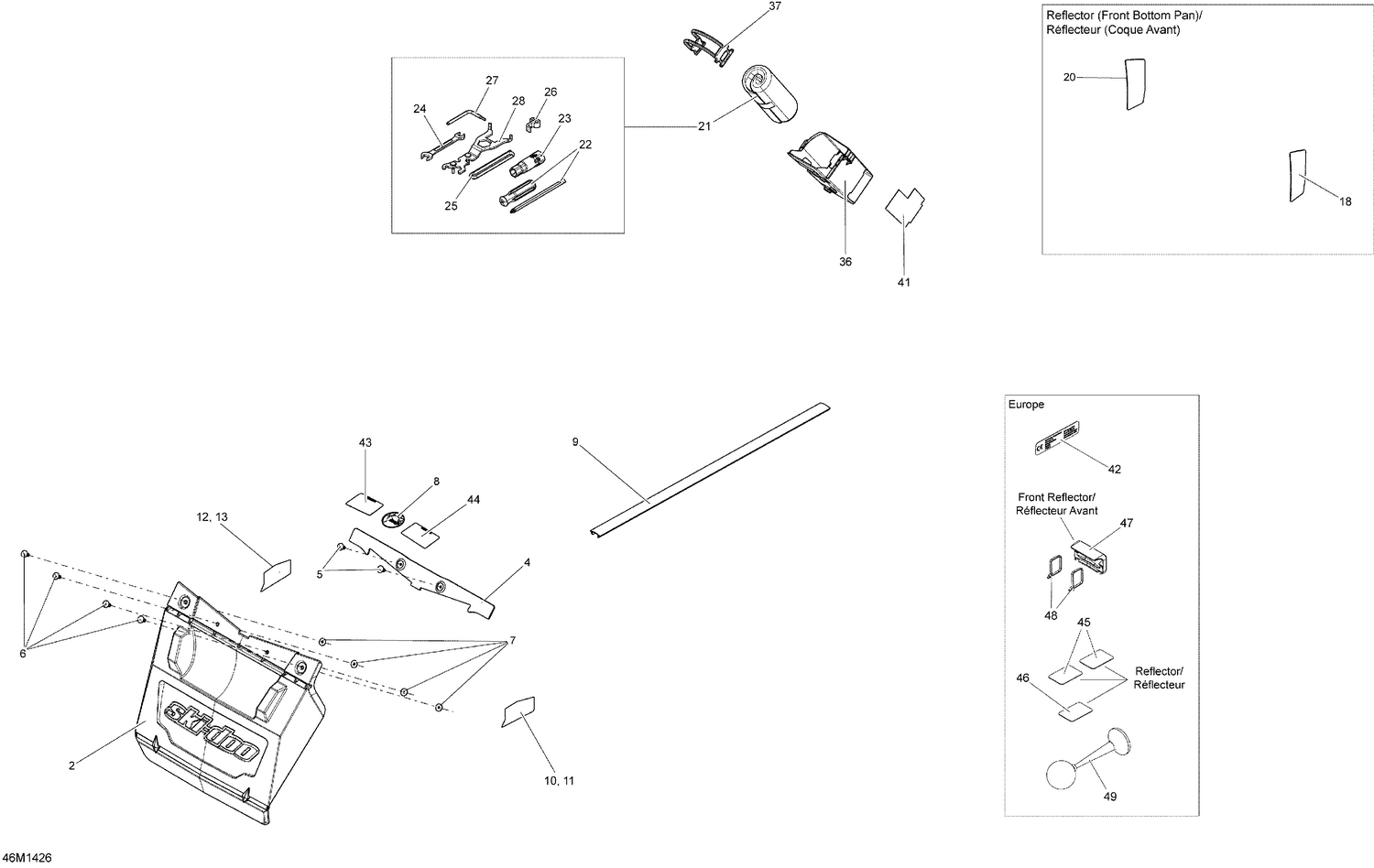

09- Utilities
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 520000659 | Snow Guard |
| 4 | 520000953 | ESTHETIC PLATE - Call your local BRP dealership |
| 5 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 6 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 7 | 517124300 | Washer |
| 8 | 219903947 | BRP Logo 48 mm |
| 9 | 520000829 | Radiator Trim |
| 18 | 520000891 | Yellow, RH Front Reflector |
| 20 | 520000892 | Yellow, LH Front Reflector |
| 22 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 23 | 529000046 | Set Key, 16/21 mm |
| 24 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 25 | 219704403 | Was 412500100 Rope-Starter |
| 26 | 529000060 | Starter Grip |
| 27 | 520001142 | Spacing Tool |
| 28 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 36 | 520000894 | Tool Kit Rack |
| 37 | 520000528 | Latch |
| 41 | 514054827 | Reflective Sheet |
| 43 | 516006431 | LH Warning Decal, Safety |
| 44 | 516005587 | RH Warning Decal, Safety |
