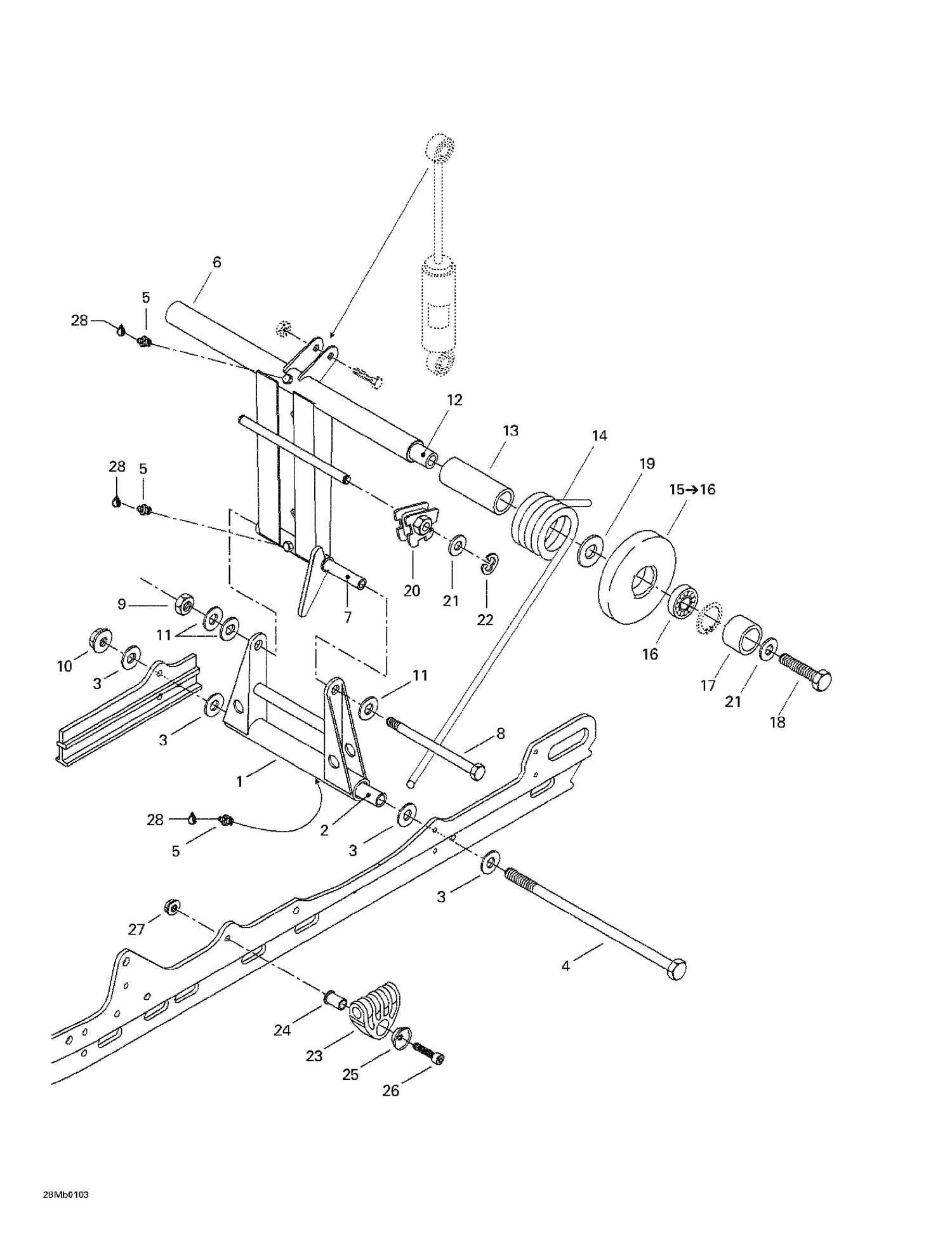

| Ref | Part Number | Description |
|---|
| 1 |
503169200 |
Pivot Welded Arm |
| 2 |
503154703 |
Lower Axle Pivot |
| 3 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 4 |
503192440 |
Bolt M8 X 248mm This part replaces 732601198. |
| 5 |
408200700 |
Grease Fitting |
| 6 |
503151200 |
Welded Rear Arm |
| 7 |
503144300 |
Upper Axle, Pivot Arm |
| 8 |
732601197 |
Bolt M8, Short |
| 9 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 10 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 11 |
234081410 |
Flat Washer 8 mm |
| 12 |
503151400 |
Transversal Rear Axle |
| 13 |
572047800 |
Bushing |
| 14 |
503189338 |
RH Spring |
| 16 |
405404600 |
Ball Bearing |
| 17 |
503154200 |
Spacer |
| 18 |
207303544 |
Hex. Screw M10 x 35 (Scotch Grip) |
| 19 |
503144900 |
Washer |
| 20 |
572030900 |
RH ADJUST CAM - Call your local BRP dealership |
| 21 |
732900049 |
Washer |
| 23 |
503189657 |
Spring Support This part replaces 503188933. |
| 24 |
503188934 |
Spring Guide Axle |
| 25 |
503188929 |
CUSHION RETAINER - Call your local BRP dealership |
| 26 |
205084544 |
Socket Head Screw M8 X 45 |
| 27 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 503189339 |
LH |
SPRING - Call your local BRP dealership 503189339 |
| 503189339 |
Ressort |
Carré GA - Appelez votre concessionnaire BRP local 503189339 |
| 572030800 |
Came |
De Réglage GA - Appelez votre concessionnaire BRP local 572030800 |
| 572030800 |
LH |
ADJUST CAM - Call your local BRP dealership 572030800 |
