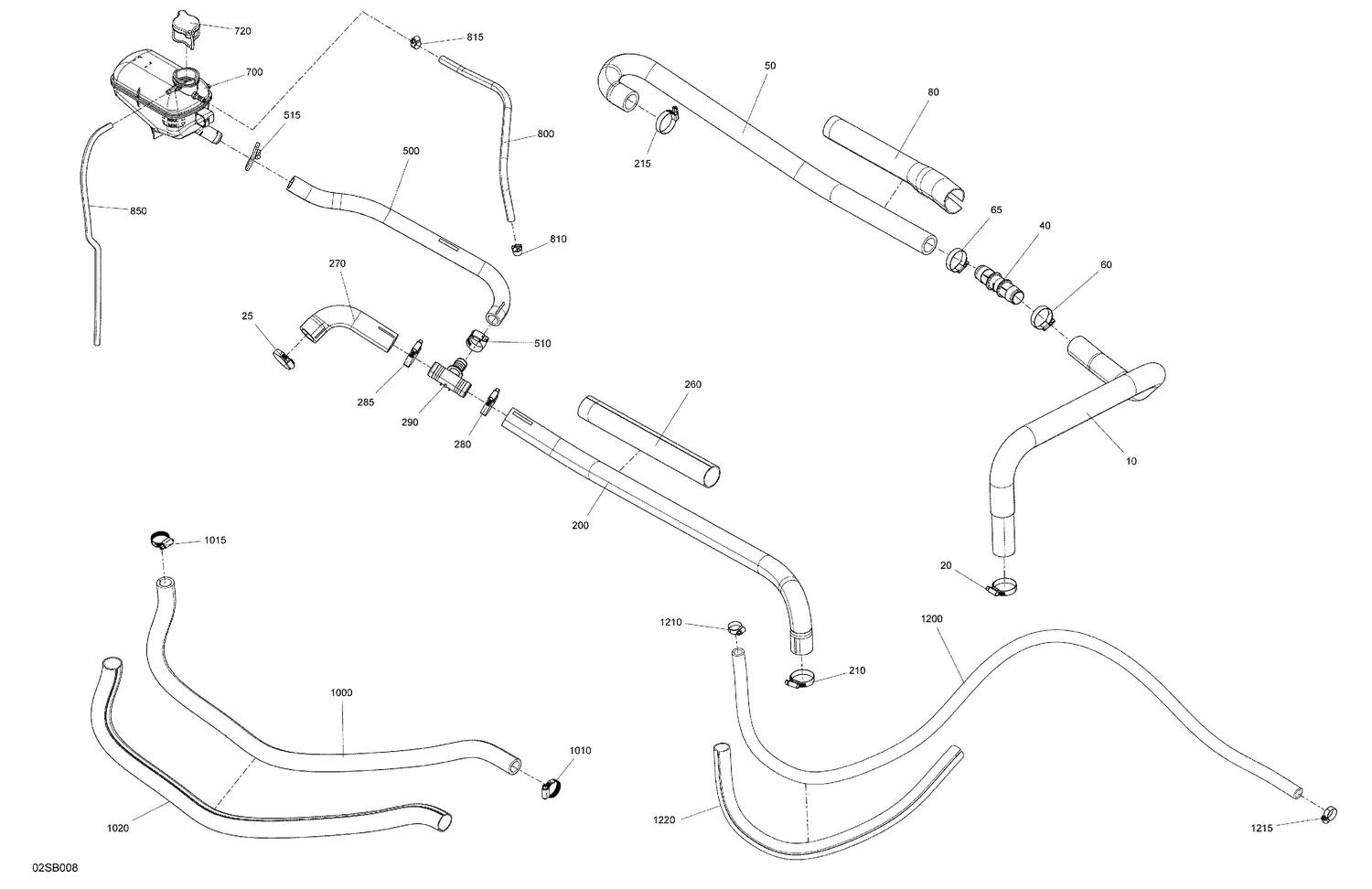

02- Engine - Cooling
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000516 | Hose |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 40 | 509000914 | Fitting |
| 50 | 276000524 | Formed Hose |
| 60 | 293650185 | Tridon Gear Clamp |
| 65 | 293650185 | Tridon Gear Clamp |
| 80 | 219704413 | Was 415084700 Protective Shield |
| 200 | 276000521 | RH Hose Ride Plate |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 260 | 219704413 | Was 415084700 Protective Shield |
| 270 | 276000482 | Hose Waterpump Inlet |
| 280 | 293650185 | Tridon Gear Clamp |
| 285 | 293650185 | Tridon Gear Clamp |
| 290 | 509000372 | T-Fitting |
| 500 | 276000479 | Hose Coolant Tnak |
| 510 | 293650019 | Tridon Gear Clamp |
| 515 | 293650115 | Spring Clamp |
| 700 | 276000419 | Coolant Tank |
| 720 | 276000100 | Pressure Cap |
| 800 | 219704362 | Was 276000394 Hose 6.4 mm |
| 810 | 293650170 | Tridon Gear Clamp |
| 815 | 293650170 | Tridon Gear Clamp |
| 850 | 219704389 | Polyurethane Hose 4000MM Long |
| 1000 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 1010 | 293650051 | Tridon Gear Clamp |
| 1015 | 293650051 | Tridon Gear Clamp |
| 1020 | 219704402 | Tubing 25 MM 1000MM Long |
| 1200 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1210 | 293650172 | Tridon Gear Clamp |
| 1215 | 293650172 | Tridon Gear Clamp |
