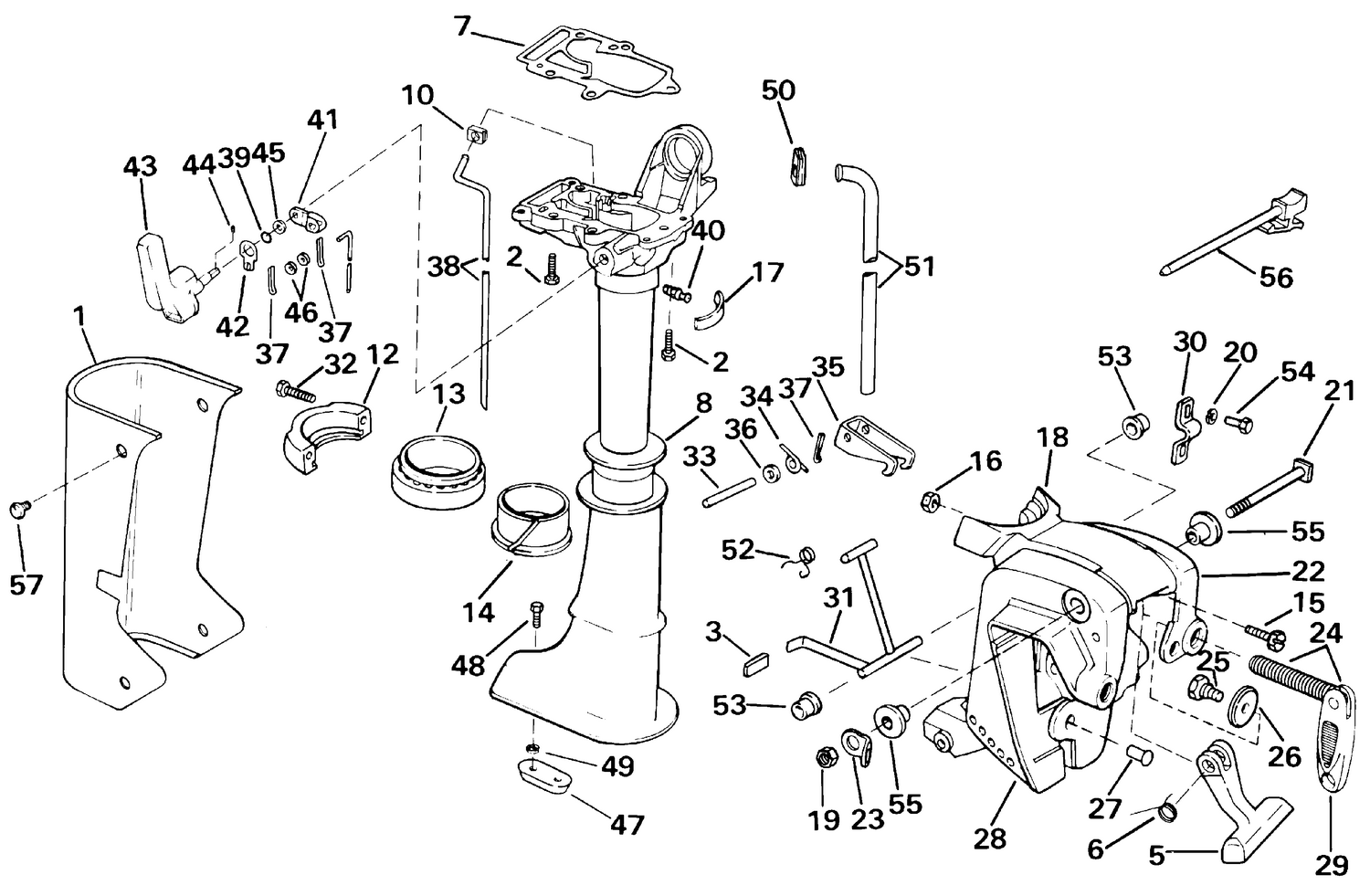

| Ref | Part Number | Description |
|---|
| 1 |
0342190 |
COVER, Pivot bearing |
| 3 |
0335997 |
SLEEVE, Tilt bracket |
| 5 |
0335317 |
CARRYING HANDLE |
| 6 |
0336038 |
SPRING, Carrying handle |
| 8 |
0344971 |
HOUSING, Exhaust |
| 12 |
0317429 |
RETAINER ASSY., Pivot brg., upper |
| 13 |
0317460 |
VIBRATION DAMDPENER, Pivot brg., upper & lower |
| 14 |
0323033 |
BEARING, Pivot, upper & lower |
| 15 |
0314048 |
SCREW, Adj. friction brake |
| 17 |
0317455 |
BRAKE, Friction |
| 18 |
0336019 |
SWIVEL BRACKET |
| 19 |
0910928 |
LOCKNUT, Tilt bolt |
| 21 |
0335340 |
TILTING BOLT |
| 22 |
0336009 |
STERN BRACKET ASSY., Port |
| 23 |
0342068 |
BRACKET, Eye, safety chain |
| 24 |
0391421 |
CLAMP SCREW & HANDLE |
| 24 |
0433675 |
CLAMP SCR. & HAND. ASSY. |
| 27 |
0202008 |
RIVET, Stern bracket |
| 28 |
0342070 |
STERN BRACKET, Stbd. |
| 30 |
0335285 |
RETAINER, Tilt bracket |
| 31 |
0434006 |
TILT BRACKET |
| 32 |
0335221 |
SCREW, Throttle body to reed plate This part replaces 0328715. |
| 33 |
0317459 |
PIN, Reverse lock |
| 34 |
0200672 |
REVERSE LOCK SPRING |
| 35 |
0317458 |
REVERSE LOCK |
| 36 |
0303887 |
WASHEER, Pin to swivel bracket |
| 38 |
0327980 |
TUBE, Water std. |
| 41 |
0326214 |
BELLCRANK, Shift rod |
| 42 |
0332292 |
SPRING, Detent |
| 43 |
0433579 |
SHIFT HANDLE & SHAFT ASSY. |
| 44 |
0325792 |
SET SCREW |
| 45 |
0303887 |
WASHEER, Pin to swivel bracket |
| 47 |
0173029 |
ANODE |
| 50 |
0336228 |
GROMMET, Exhaust relief tube |
| 51 |
0344972 |
TUBE, Exhaust relief |
| 52 |
0335297 |
SPRING, Tilt lock bracket |
| 53 |
0319518 |
BUSHING |
| 55 |
0333664 |
BUSHING, Tilt bolt |
| 56 |
0433371 |
PIN, Tilt lock adjustment |
