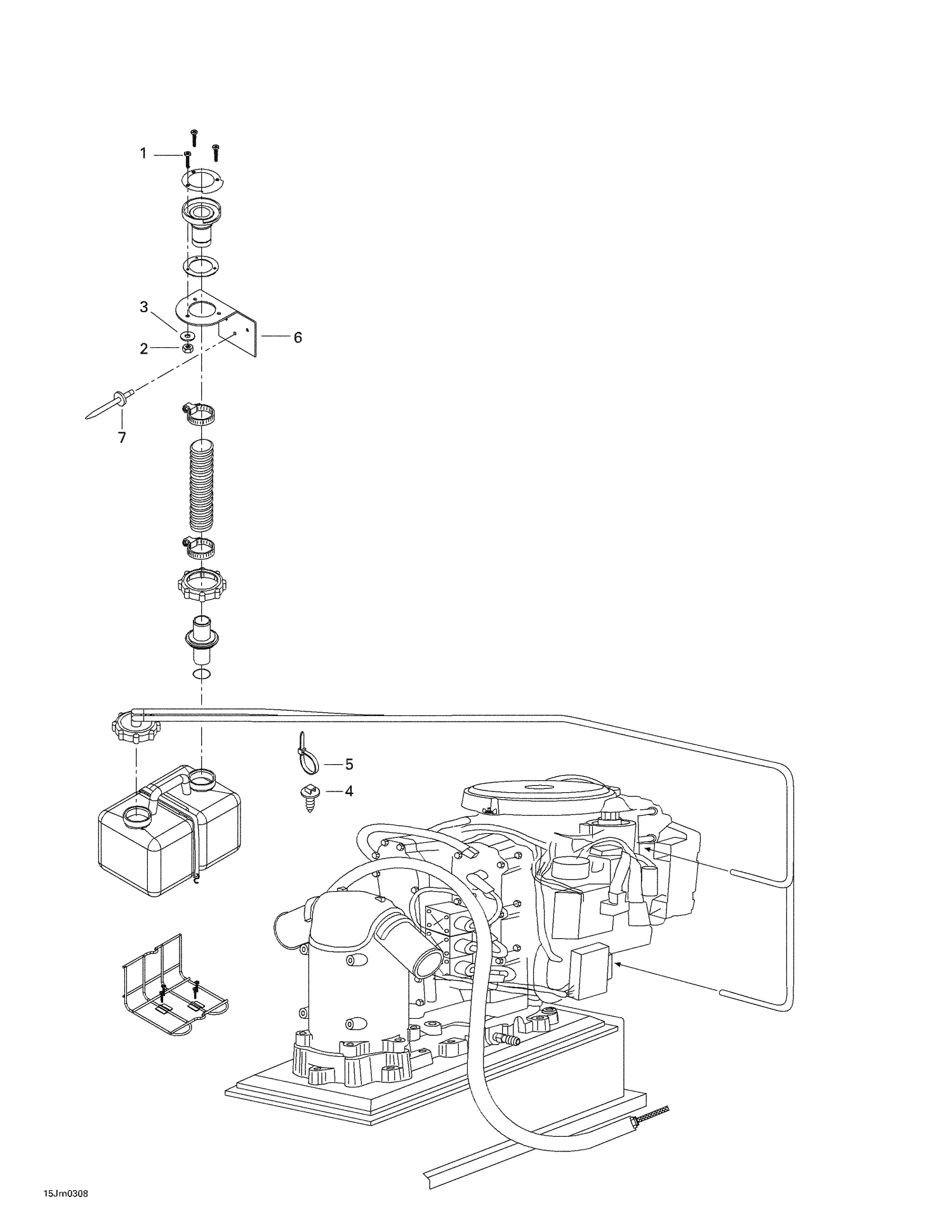

02- Oil Injection System
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 208642560 | PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 2 | 232541600 | Elastic Stop Nut M4 |
| 3 | 234041600 | Flat Washer 4 mm, Stainless |
| 4 | 293730040 | Mount Dart This part replaces 293730018. |
| 5 | 414115200 | Tie-Rap 180 mm |
| 6 | 204071235 | Oil Filler Bracket |
| 208443070 | SCREW | M4 X 30 - Call your local BRP dealership 208443070 |
