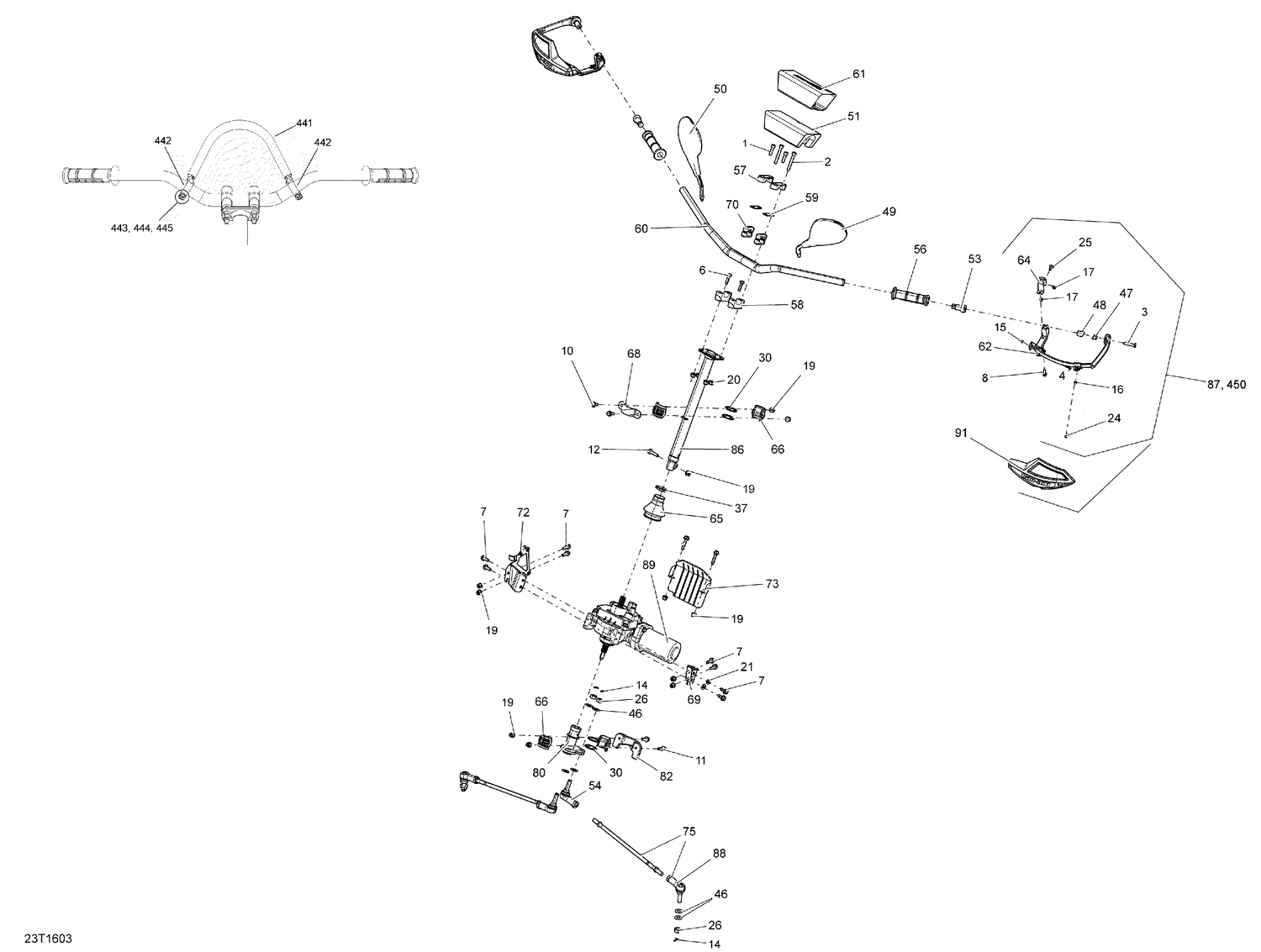

07- Steering
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 10 | 207682044 | Hex. Flange Screw M8 X 20 |
| 11 | 207682534 | Hex. Flange Screw M8 X 25 |
| 14 | 211400013 | Cotter Pin |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 233281416 | Hex. Elastic Flange Nut M8 |
| 26 | 250100099 | Nut M12 |
| 30 | 293300068 | O-Ring |
| 54 | 709402302 | RH Ball Joint This part replaces 709400490. |
| 56 | 709400493 | Handle Grip |
| 66 | 709400783 | Spherical Half Bushing |
| 68 | 709400827 | Upper Column Attachment |
| 72 | 709400994 | RH STEERING BRACKET - Call your local BRP dealership |
| 82 | 709401428 | Column Attachment |
| 88 | 709402303 | LH Ball Joint This part replaces 709400486. |
