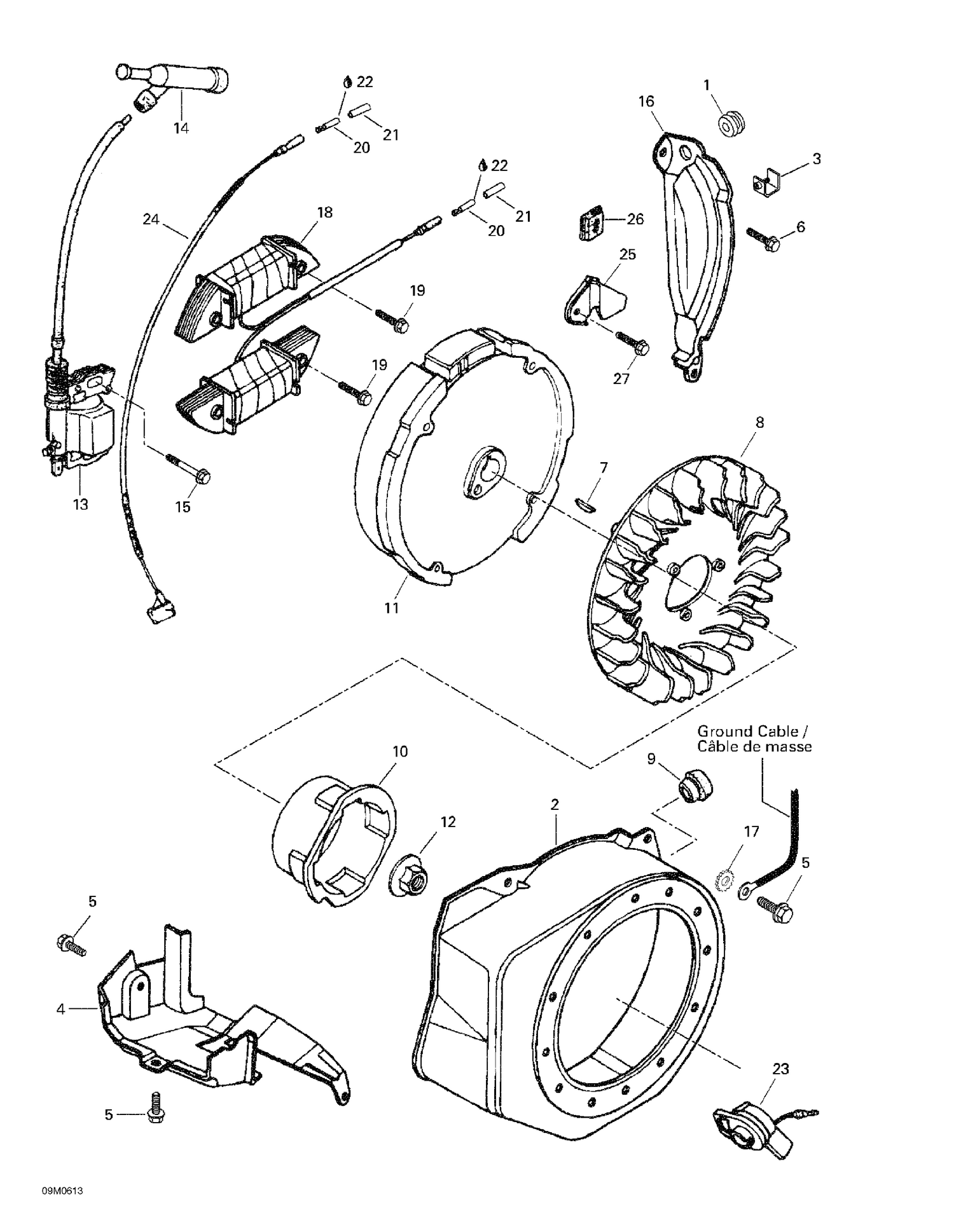

01- Ignition Coil, Cooling System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | H11347371300 | Grommet |
| 2 | H19610ZE0000ZQ | Cover |
| 3 | H90601ZH7013 | Clip |
| 4 | H19630ZH7000 | Shroud |
| 5 | H90013883000 | Screw |
| 6 | H90022888010 | Screw |
| 7 | H13331357000 | Key |
| 8 | H19511ZE0000 | Fan |
| 9 | H81329567020 | Plug |
| 10 | H28451ZH8003 | Starter Pulley |
| 11 | Not | Available As Spare Part - Flywheel |
| 12 | H90201878003 | Nut 14 mm |
| 13 | H30500ZE1033 | Ignition Coil |
| 14 | H30700ZE1013 | Cap |
| 15 | H90121952000 | Flanged Bolt 6 x 25 |
| 16 | H19612ZH7820 | Side Plate |
| 17 | 234461608 | External Serrated Lock Washer 6 mm |
| 18 | H31510ZK7U50 | Lamp Coil Ass'y |
| 19 | H90015883000 | Screw 6 x 28 |
| 20 | 515175451 | FEMALE TERMINAL - Call your local BRP dealership |
| 21 | 278001007 | Insulated Sheath |
| 22 | 293550004 | Dielectric Grease, 150 g This part replaces 413701700. |
| 23 | H36100ZH7003 | Switch Ass'y |
| 24 | H36101ZK7U50 | Cord Stop Switch |
| 25 | H31511ZE1000 | Clamper |
| 26 | H31512ZE1000 | Groomet |
