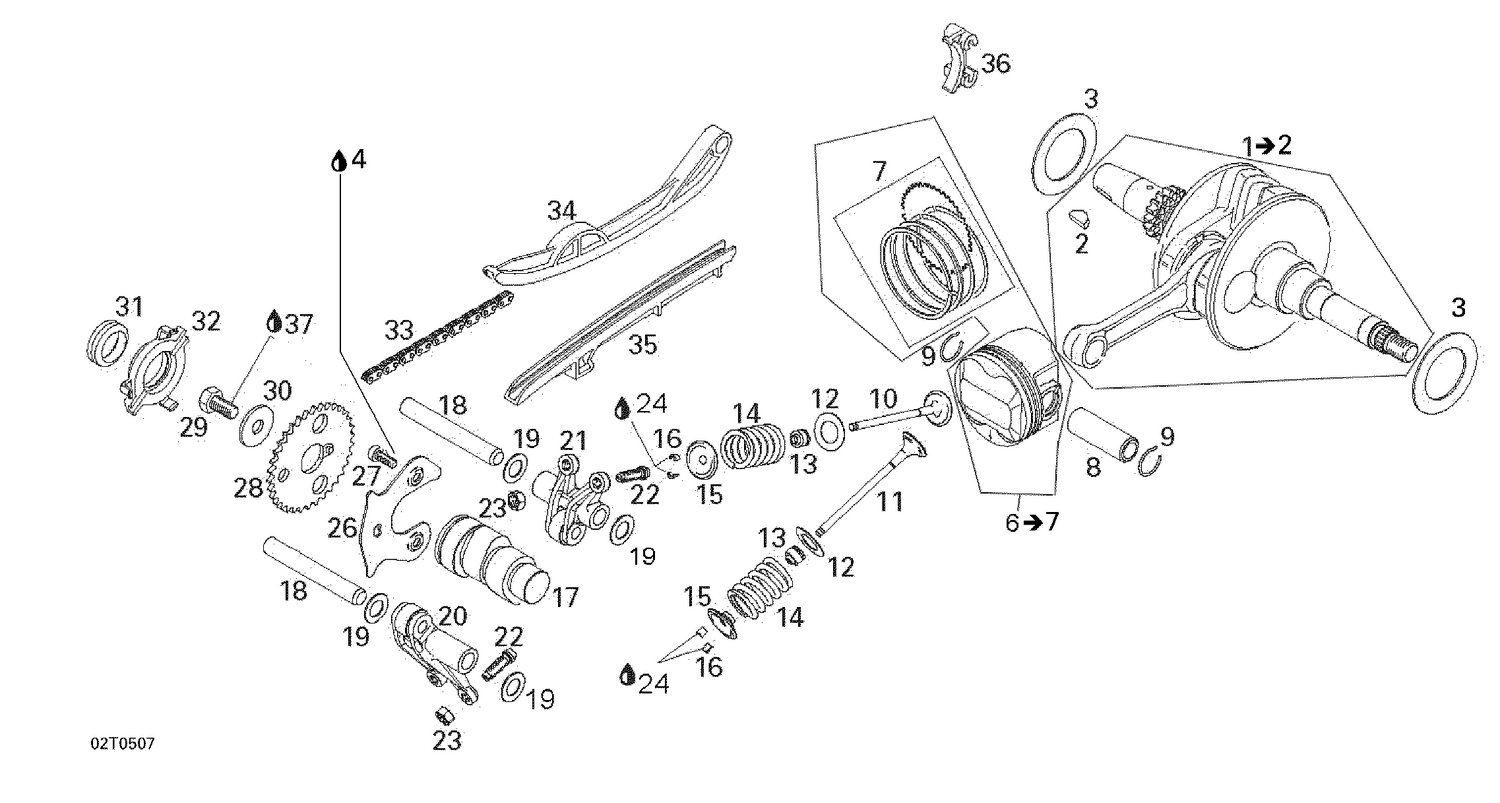

01- Crankshaft And Pistons
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 3 | 420627110 | THRUST WASHER - Call your local BRP dealership |
| 4 | 293800060 | Loctite 243, 10 ml |
| 7 | 420296704 | PISTON RING SET - Call your local BRP dealership |
| 8 | 420216210 | PISTON PIN - Call your local BRP dealership |
| 9 | 420245805 | CIRCLIP PISTON - Call your local BRP dealership |
| 10 | A14711179000 | INLET VALVE 20 MM - Call your local BRP dealership |
| 11 | A14721179000 | Exhaust Valve 18mm |
| 12 | 420227451 | THRUST WASHER - Call your local BRP dealership |
| 13 | A12209179000 | VALVE SEAL - Call your local BRP dealership |
| 14 | A14751179000 | VALVE SPRING - Call your local BRP dealership |
| 15 | A14771179000 | VALVE SPRING RETAINER - Call your local BRP dealership |
| 16 | A14781179000 | COTTER VALVE - Call your local BRP dealership |
| 17 | A14400179000 | CAMSHAFT 236DEG - Call your local BRP dealership |
| 18 | A14451179000 | Pin |
| 19 | 420627100 | THRUST WASHER - Call your local BRP dealership |
| 20 | A14434179000 | Rocker Arm Exhaust |
| 21 | A14433179000 | Rocker Arm Inlet |
| 22 | 420241337 | Adjustment Screw M6 X 0.75 This part replaces 420241335. |
| 23 | 420242913 | Hex Nut M6 This part replaces 420242910. |
| 24 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 26 | A14456179000 | Retaining Plate |
| 27 | 420241841 | Socket Screw M5 x 12 |
| 28 | A14321179000 | Timing Gear, 34 Teeth |
| 29 | 207181644 | Hex. Screw M8 x 16 |
| 30 | A941050824020 | WASHER - Call your local BRP dealership |
| 31 | A91420179000 | V-RING - Call your local BRP dealership |
| 32 | A14410179000 | COVER - Call your local BRP dealership |
| 33 | 420297932 | CAMSHAFT CHAIN - Call your local BRP dealership |
| 34 | A14550179000 | Chain Tension Guide |
| 35 | A14500179000 | CHAIN GUIDE - Call your local BRP dealership |
| 36 | A14524179000 | CHAIN GUIDE - Call your local BRP dealership |
