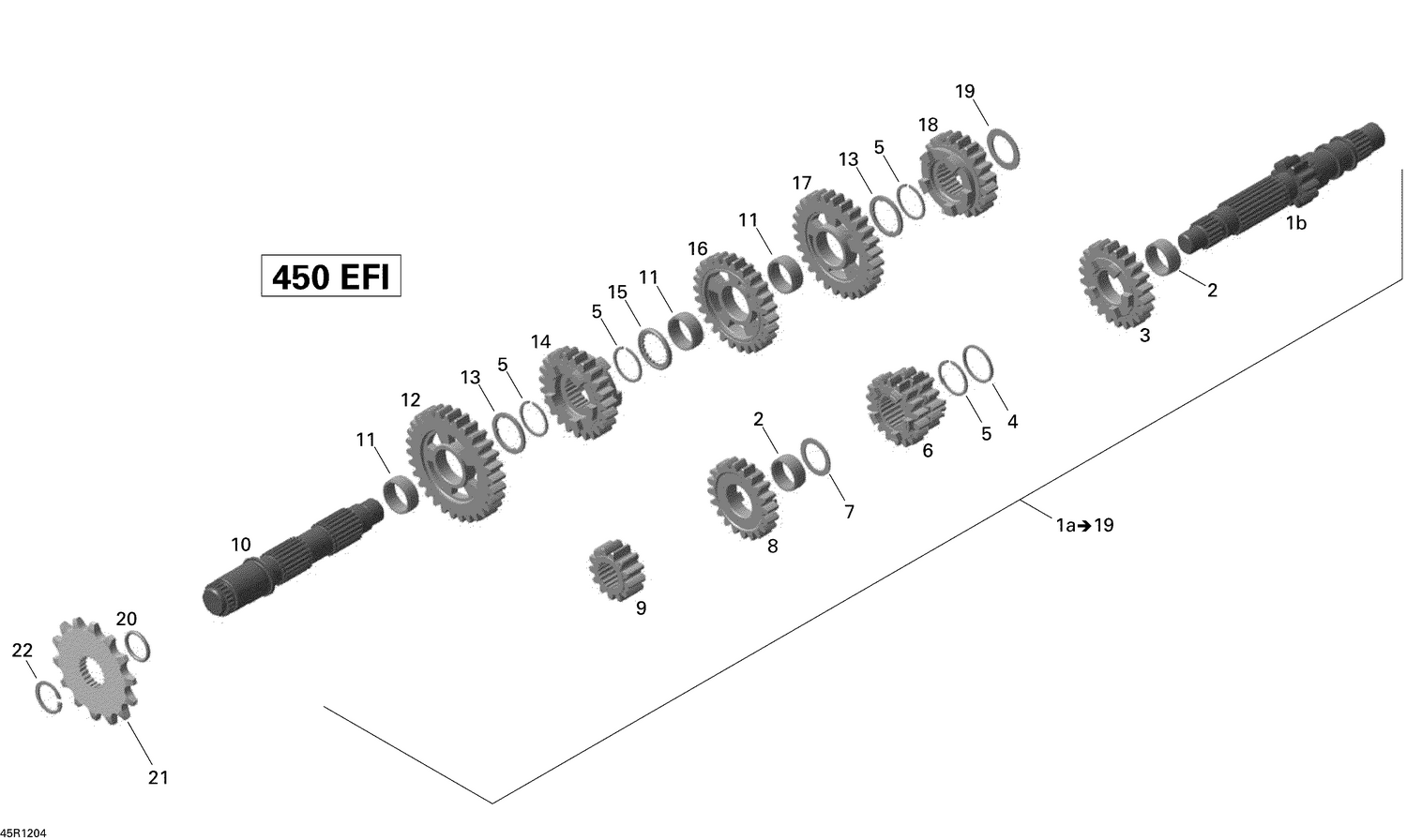

| Ref | Part Number | Description |
|---|
| 1b |
420620950 |
Clutch Shaft |
| 2 |
420232664 |
Needle Bearing This part replaces 420232662. |
| 3 |
420234883 |
FREE PINION, 22 TEETH - Call your local BRP dealership |
| 4 |
420227470 |
THRUST WASHER - Call your local BRP dealership |
| 5 |
420245340 |
SNAP RING 24 - Call your local BRP dealership |
| 6 |
420435062 |
PINION GEAR, 15/18 TEETH - Call your local BRP dealership |
| 7 |
420227440 |
THRUST WASHER - Call your local BRP dealership |
| 8 |
420435092 |
FREE PINION, 20 TEETH - Call your local BRP dealership |
| 9 |
420435040 |
FIXED GEAR, 13 TEETH - Call your local BRP dealership |
| 10 |
420620960 |
MAIN SHAFT - Call your local BRP dealership |
| 11 |
420232742 |
Needle Bearing |
| 12 |
420435050 |
FREE PINION, 30 TEETH - Call your local BRP dealership |
| 13 |
420227460 |
THRUST WASHER - Call your local BRP dealership |
| 14 |
420435102 |
PINION GEAR, 23 TEETH - Call your local BRP dealership |
| 15 |
420227491 |
ANGULAR RING - Call your local BRP dealership |
| 16 |
420435082 |
FREE PINION, 26 TEETH - Call your local BRP dealership |
| 17 |
420435070 |
FREE PINION, 28 TEETH - Call your local BRP dealership |
| 18 |
420234992 |
PINION GEAR, 21 TEETH - Call your local BRP dealership |
| 19 |
420227430 |
THRUST WASHER - Call your local BRP dealership |
| 20 |
420250050 |
O-Ring |
| 21 |
715000591 |
SPROCKET KIT, 14 TEETH - Call your local BRP dealership |
