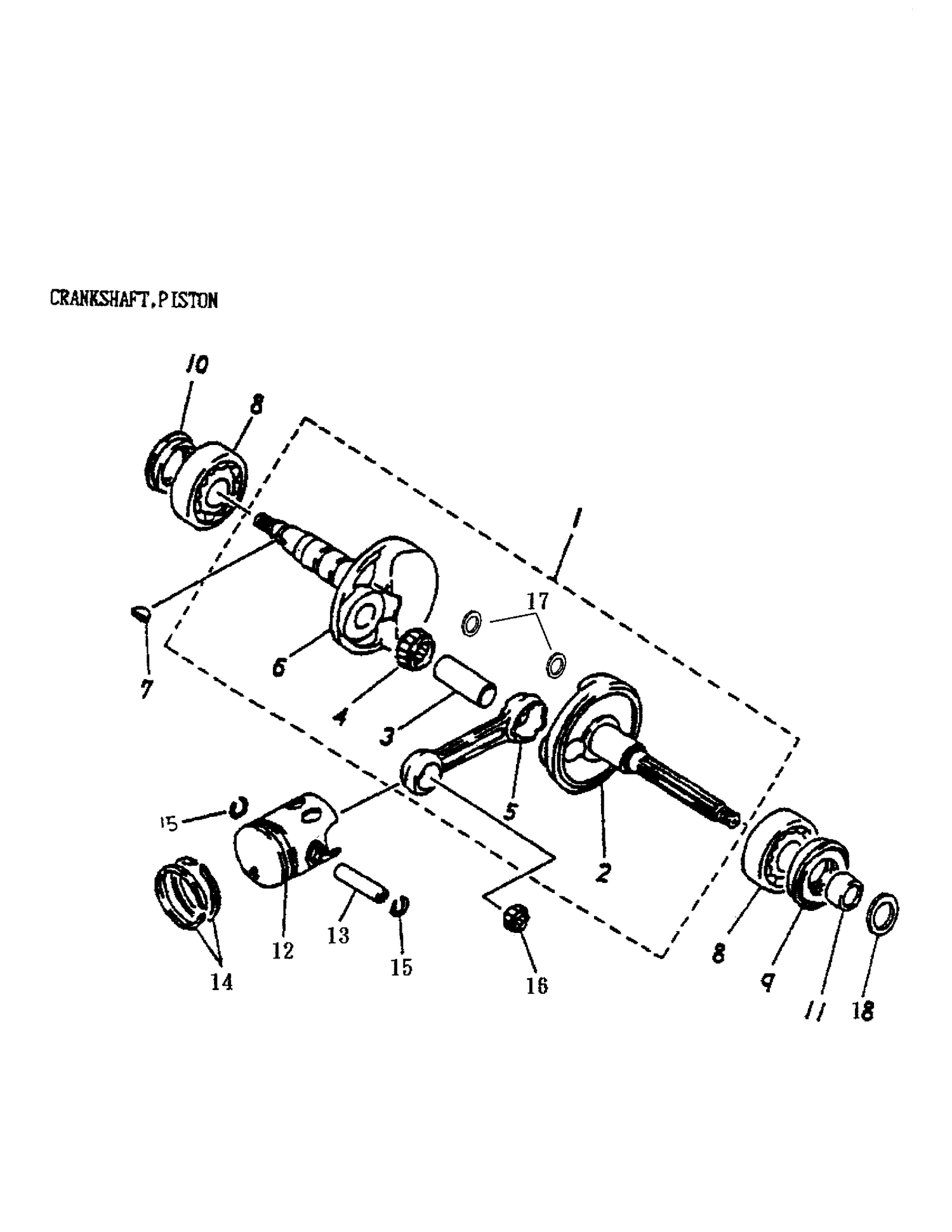

| Ref | Part Number | Description |
|---|
| 1 |
A13000146000 |
Crankshaft Ass'y |
| 2 |
A13321146000 |
Left Crank |
| 3 |
A13381117000 |
Crank Pin |
| 4 |
A96200182412 |
NEEDLE BEARING, 18 X 24 X 12 - Call your local BRP dealership |
| 5 |
A13201117000 |
Crank Connecting Rod |
| 6 |
A13311146000 |
RH Crank |
| 7 |
A90471104000 |
SEMICYCLE KEY, 3 X 13 - Call your local BRP dealership |
| 8 |
A9610062040 |
RADIAL BALL BEARING, 6204C3 - Call your local BRP dealership |
| 9 |
A9650020428 |
OIL SEAL, 20 X 42/43 X 8/9 - Call your local BRP dealership |
| 10 |
A9650020306 |
Oil Seal, 20 X 30/33 X 6 |
| 11 |
A13316117000 |
LEFT CRANK COLLAR, 16 X 21 X 12 - Call your local BRP dealership |
| 12 |
A13100146000 |
PISTON - Call your local BRP dealership |
| 13 |
A13111117000 |
PISTON PIN, 9 X 12 X 40 - Call your local BRP dealership |
| 14 |
A13011146000 |
Piston Ring Set |
| 15 |
A13115101000 |
PISTON PIN CLIP, 1.0 X 14 - Call your local BRP dealership |
| 16 |
A96200121516 |
Needle Bearing, 12 X 15 X 16.6 |
| 17 |
A941011830010 |
Plain Washer, 18 X 30 X 1 |
