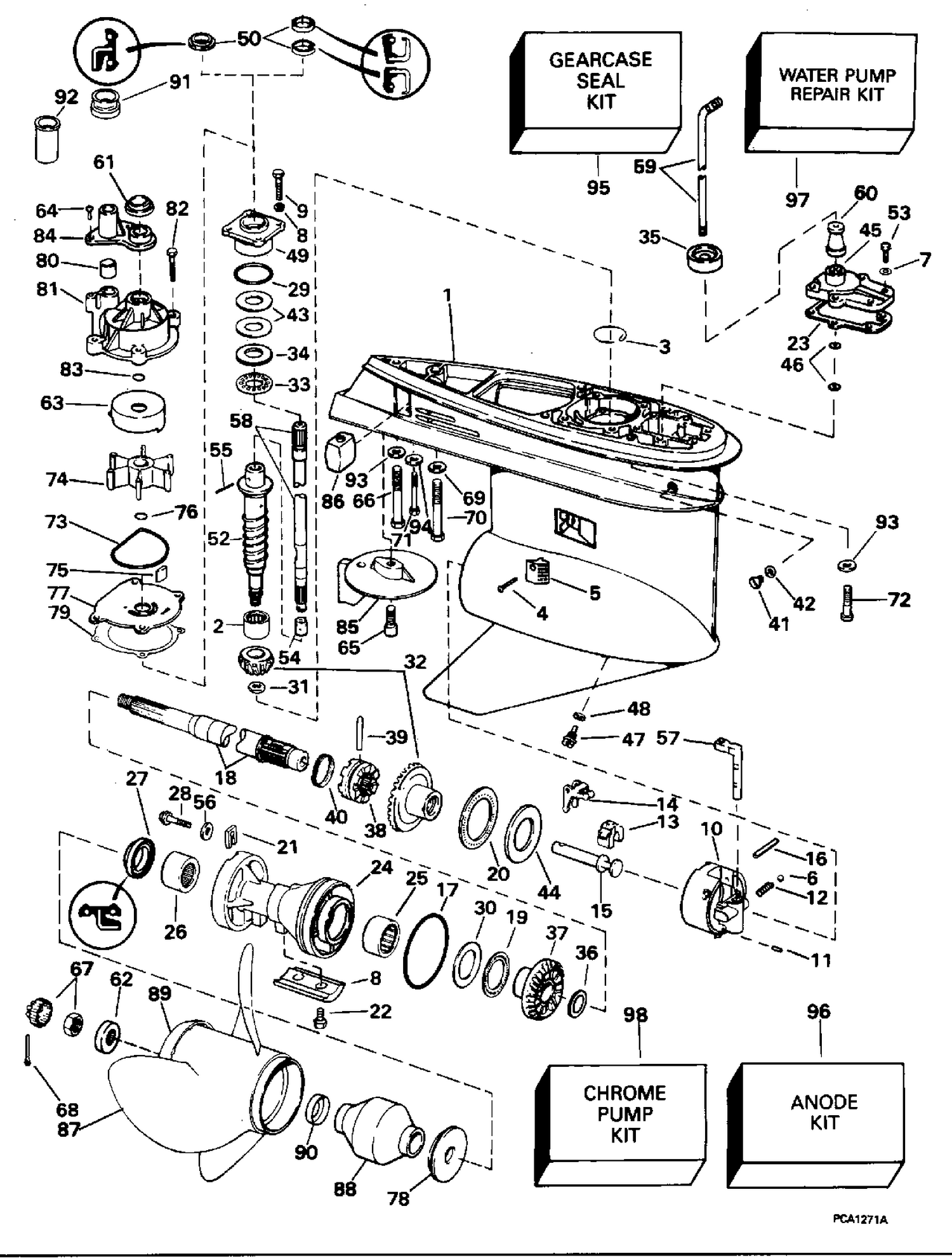

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 17 |
0305123 |
O RING |
| 26 |
0434467 |
NEEDLE BEARING ASSY. |
| 27 |
0341281 |
SEAL |
| 50 |
0341280 |
SEAL |
| 58 |
5000624 |
DRIVESHAFT Assembly, Upper This part replaces 0435769. |
| 59 |
0335510 |
SHIFT ROD |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0331999 |
SCREW, Gearcase housing |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 78 |
0127212 |
BAGUE, de butée |
| 83 |
0331188 |
O-Ring |
| 85 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 87 |
PROPELLER |
Ref: 88 0387157 *BUSHING Assy, Prop, (std) 0387157 |
| 95 |
5006373 |
GEARCASE SEAL KIT This part replaces 0434516. |
| 96 |
0392160 |
ANODE KIT |
| 97 |
5001595 |
Water Pump Repair Kit This part replaces 0435929. |
| 0435470 |
5004639 |
G-Case .44 Std Os This part replaces 0435470. |
