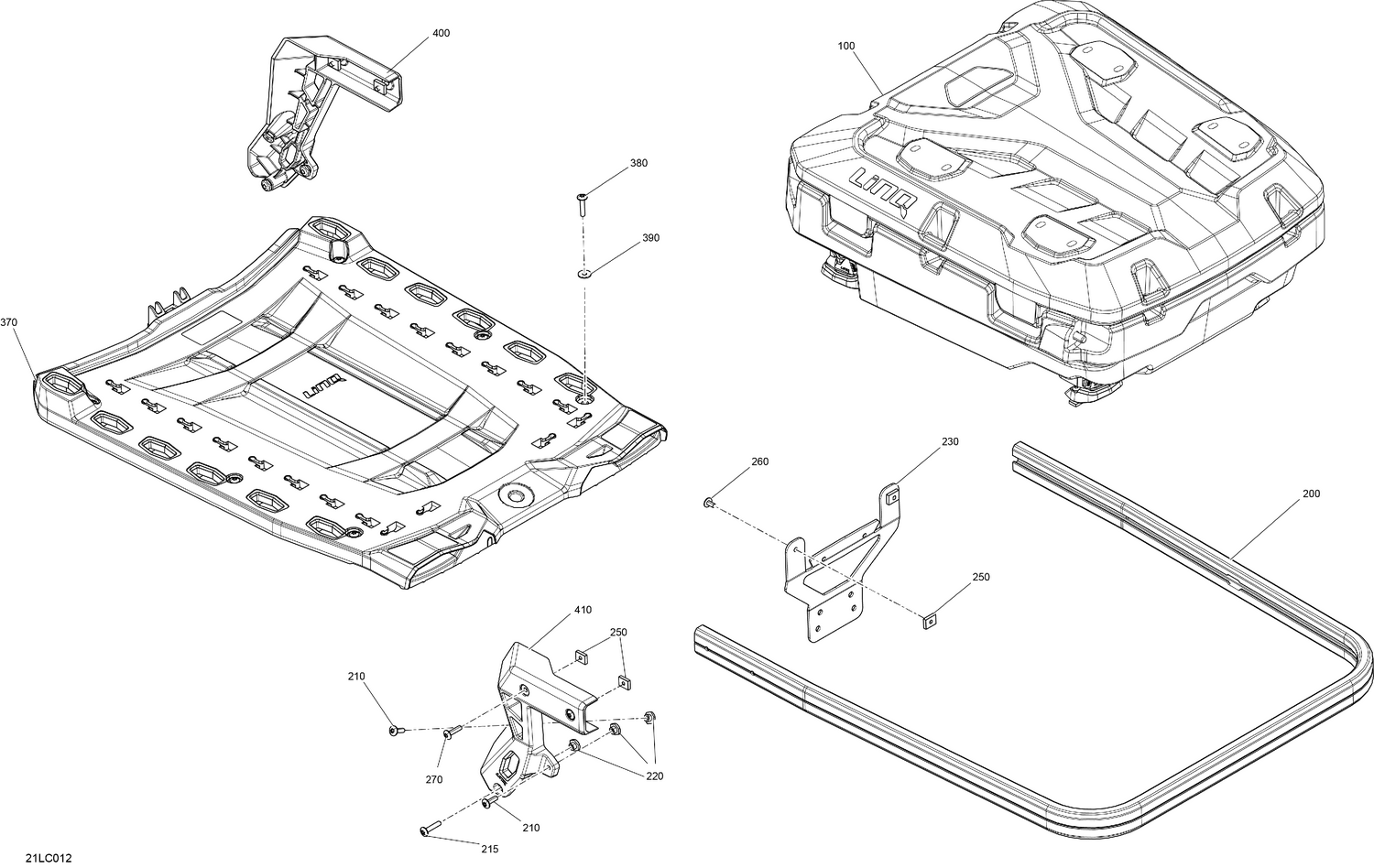

07- Body - Cargo
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 860202416 | CARGO BOX LINQ - Call your local BRP dealership |
| 200 | 511001753 | Viper Red, Luggage Rack |
| 210 | 250000722 | Torx Truss Screw M6 x 20 |
| 215 | 250000843 | Torx Truss Screw M6 X 30 |
| 220 | 511001120 | Short Insert |
| 230 | 511001463 | Rear Support Rack |
| 250 | 511001314 | Threaded Insert |
| 260 | 250000767 | Torx Truss Screw M6 X 12 |
| 270 | 250000807 | Torx Truss Screw M6 x 25 |
| 370 | 511001145 | Multi Purpose Plate |
| 380 | 250000843 | Torx Truss Screw M6 X 30 |
| 390 | 250200164 | Flat washer M6 |
| 400 | 511001467 | Grey, RH Rack Support |
