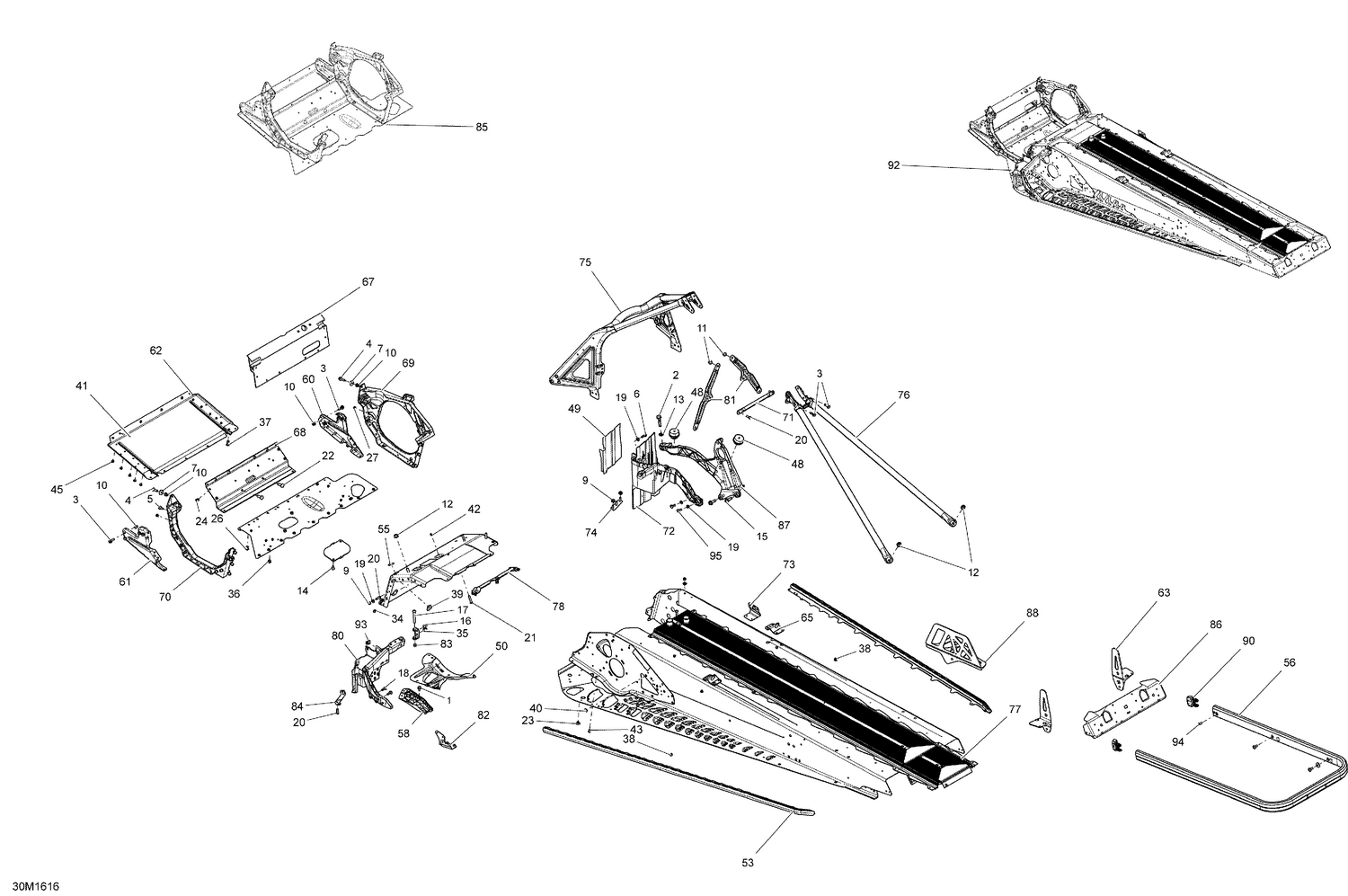

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
207584034 |
Hex. Flange Screw, Scotch Grip |
| 3 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 4 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 5 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 6 |
210262040 |
Hex. Flange Screw M6 X 20 |
| 7 |
224061201 |
Flat Washer |
| 9 |
233061414 |
Hex. Flange Nut M6 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 12 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 13 |
234281474 |
Conical Spring Washer M8 |
| 14 |
250000767 |
Torx Truss Screw M6 X 12 |
| 15 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon |
| 16 |
250000534 |
Tork Screw M6 X 16 |
| 17 |
250000535 |
Torx Screw M8 X 55 |
| 18 |
250000536 |
Tork Screw M6 X 18 |
| 19 |
250200039 |
Flat Washer |
| 20 |
250300027 |
Clinch Stud M6 X 20 |
| 21 |
250300031 |
Clinch Stud M6 X 30 |
| 22 |
250300038 |
Clinch Stud |
| 23 |
293150104 |
Pop Rivet 3/16" |
| 24 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 26 |
293150120 |
Hemlock Rivet 6.5 mm |
| 27 |
293150144 |
Stavex Rivet |
| 34 |
293150146 |
Henrob Rivet |
| 35 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 36 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 37 |
293150182 |
Monobolt Rivet 6.4 |
| 38 |
293730041 |
Full Moon Dart 8 mm |
| 38 |
293730047 |
Black, Dart 8 mm |
| 39 |
293730052 |
Black, Plug |
| 40 |
293730059 |
Full Moon Dart 10 mm |
| 41 |
390402200 |
Pop Rivet 3/16" |
| 42 |
390402400 |
Pop Rivet 3/16" |
| 43 |
390909100 |
Avex Rivet |
| 45 |
390909200 |
Avex Rivet |
| 46 |
293450275 |
Insert |
| 48 |
512061516 |
Vibration Damper This part replaces 512060295. |
| 49 |
514054755 |
HEAT SHIELD - Call your local BRP dealership |
| 50 |
518324874 |
RH Reinforcement |
| 50 |
518324875 |
LH Reinforcement |
| 55 |
518325560 |
Adhesive Patch |
| 58 |
518325782 |
RH Deflector, Black Polypropylene |
| 58 |
518325783 |
LH Deflector, Black Polypropylene |
| 60 |
518325949 |
RH Front Member |
| 61 |
518325950 |
LH Front Member |
| 62 |
518325951 |
Front Bottom Plate |
| 63 |
518325955 |
RH SLIDE BRACKET - Call your local BRP dealership |
| 63 |
518325956 |
LH Slide Bracket |
| 65 |
518325973 |
RH Rear Base |
| 65 |
518325974 |
LH Rear Base |
| 67 |
518326140 |
Engine Support |
| 68 |
518326198 |
Front Member |
| 69 |
518326328 |
RH Side Member |
| 70 |
518326330 |
LH Side Member |
| 71 |
518326355 |
Center Column Support |
| 72 |
518326472 |
Battery Support |
| 73 |
518326482 |
RH Support |
| 74 |
518326550 |
Retaining Plate |
| 75 |
518326557 |
Front Member, S Module |
| 76 |
518326559 |
Rear Member |
| 77 |
518326641 |
Rear Radiator Ass'y, 137" |
| 77 |
518326692 |
Rear Radiator Ass'y, 154" |
| 78 |
518326656 |
Seal |
| 80 |
518326820 |
LH Stirup |
| 81 |
518326848 |
Upper Column Support |
| 82 |
518326960 |
Support |
| 83 |
518326961 |
U-Attach |
| 84 |
518326986 |
Attach |
| 85 |
518327006 |
E-Module |
| 86 |
518327105 |
Rear Cap |
| 87 |
415130014 |
ASS'Y BRACE KIT - Call your local BRP dealership This part replaces 518327535. |
| 88 |
518328787 |
RH Bracket |
| 88 |
518328788 |
LH Bracket |
| 90 |
520000711 |
Full Moon RH Cap |
| 90 |
520000712 |
Full Moon LH Cap |
| 92 |
415130262 |
FRAME TUNDRA 137 ACE - Call your local BRP dealership This part replaces 415130042. |
| 92 |
415130263 |
FRAME TUNDRA 154 ACE - Call your local BRP dealership This part replaces 415129941. |
| 93 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 94 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
