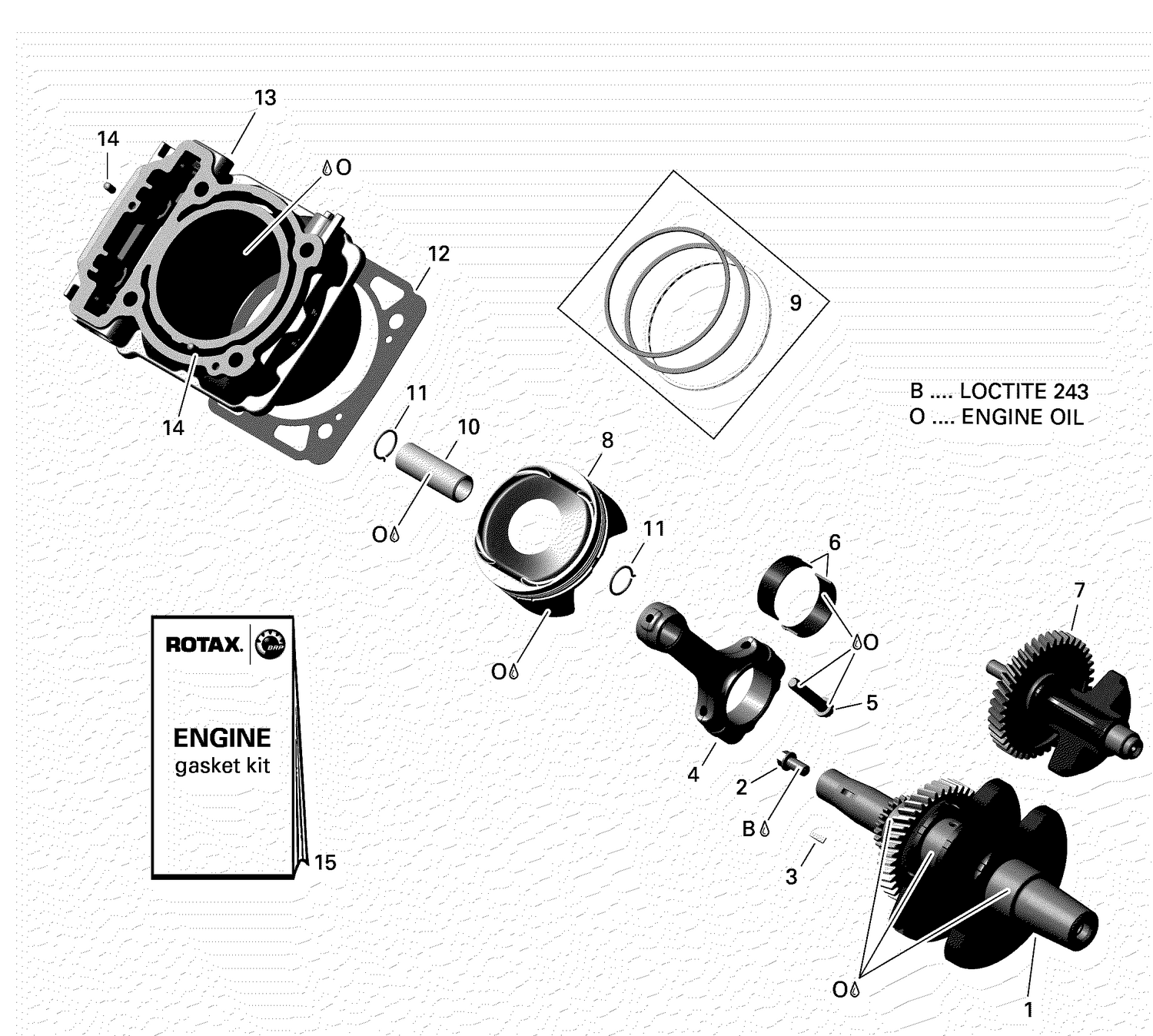

01- Crankshaft And Piston
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420295030 | Crankshaft Ass'y |
| 2 | 295501162 | Hex Screw |
| 3 | 420246571 | Woodruff Key |
| 5 | 420641645 | Connecting Rod Screw M8 X 1 |
| 6 | 420233980 | Plain Bearing 40 X 43 X 15 |
| 7 | 420637455 | Balance Shaft |
| 8 | 420686310 | Piston Ass'y, 93.958 mm |
| 9 | 420686314 | Piston Ring Set |
| 10 | 420216270 | Piston Pin |
| 11 | 420845107 | Piston Circlip |
| 12 | 420450330 | Gasket |
| 13 | 420413263 | Cylinder This part replaces 420413265. |
| 14 | 420929650 | Drive Pin 5 X 10 |
