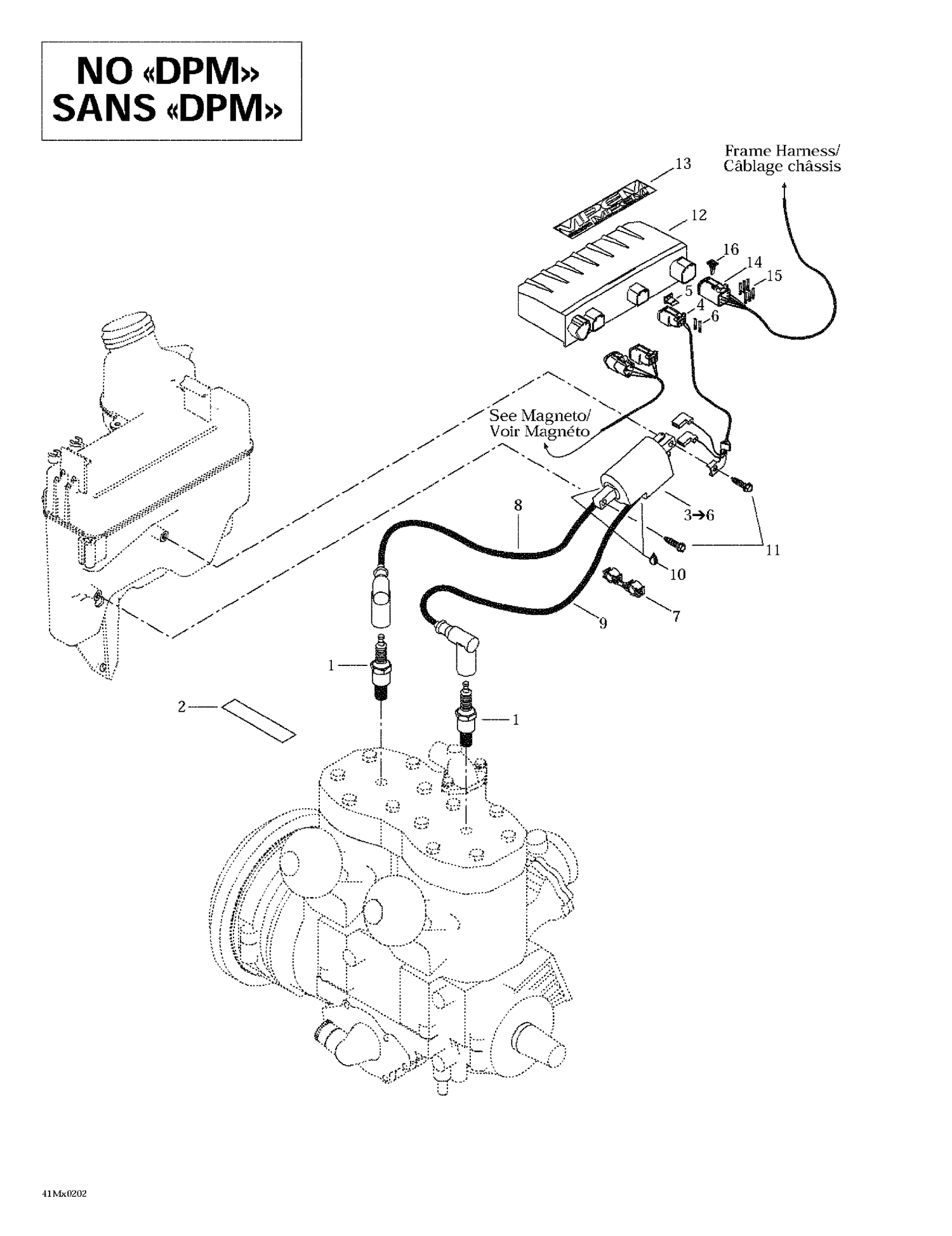

| Ref | Part Number | Description |
|---|
| 2 |
516000986 |
Spark Plug Decal |
| 4 |
409207300 |
Female Connector, 2 Circuits |
| 5 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 6 |
278000632 |
Female Terminal |
| 7 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 8 |
512059696 |
Cable Ass’y, 375 mm This part replaces 512059485. |
| 9 |
512059486 |
CABLE ASSY, 455 MM - Call your local BRP dealership |
| 10 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
516000245 |
Electrical Box Decal |
| 14 |
515175673 |
Male Housing, 6 Circuits |
| 15 |
278000632 |
Female Terminal |
