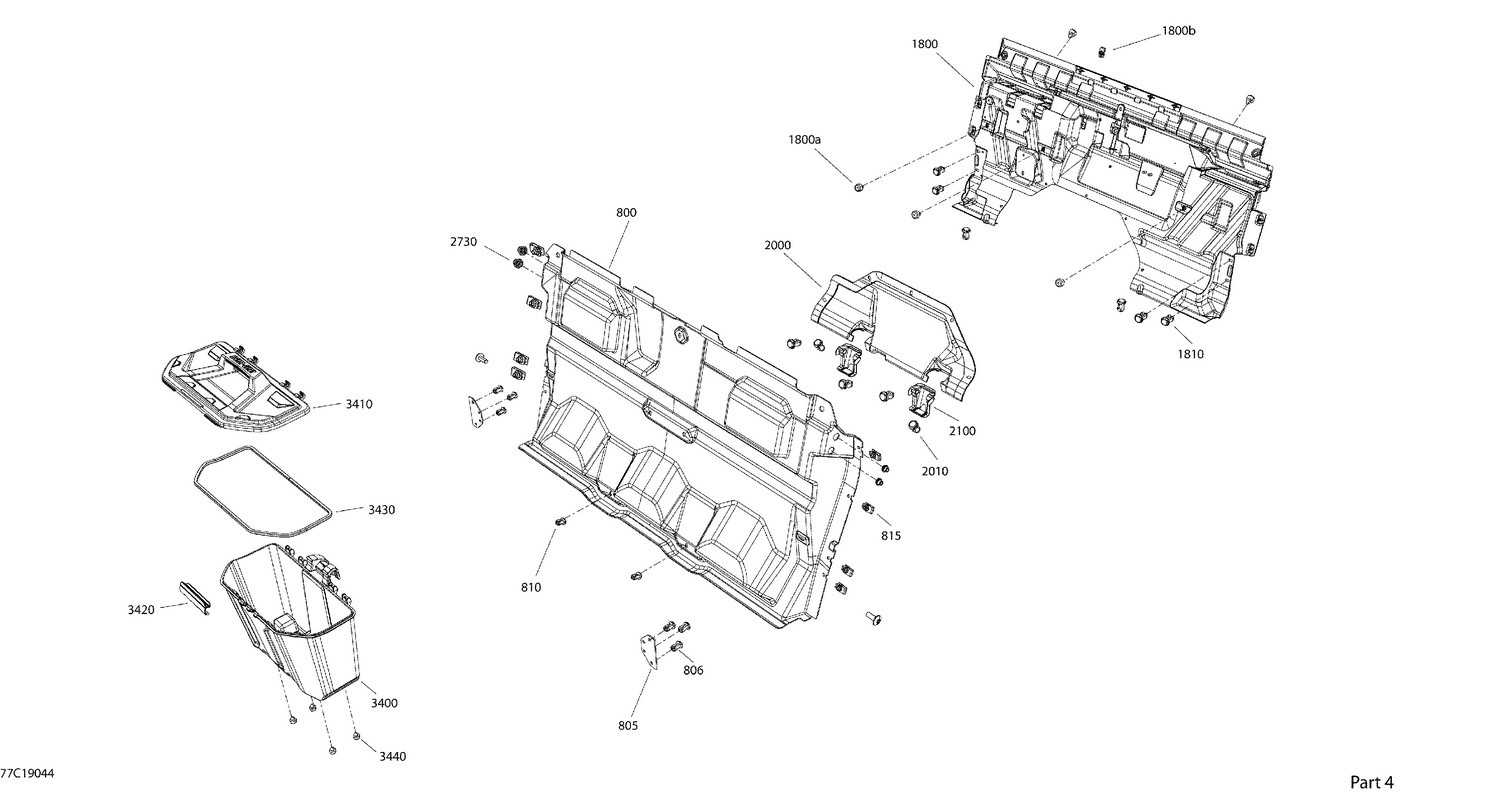

09- Cab Interior - XT CAB - Back Section
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 715007481 | Median Deflector Kit This part replaces 715003774. |
| 805 | 707900469 | Plate |
| 806 | 293150230 | Tuflok Plastic Rivet |
| 810 | 293150230 | Tuflok Plastic Rivet |
| 815 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1800a | 293830005 | Rubber Bumper |
| 1800b | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1810 | 293150230 | Tuflok Plastic Rivet |
| 2000 | 707900326 | Engine Service Cover |
| 2010 | 293150230 | Tuflok Plastic Rivet |
| 2100 | 707900419 | Support belt cover |
| 2730 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 3400 | 715003314 | Storage Box |
| 3410 | 715003314 | Storage Box |
| 3420 | 269501945 | Clip |
| 3430 | 293250453 | Neoprene Seal |
