| Ref | Part Number | Description |
|---|
| 1 |
5009348 |
Grcse&Brg Prime This part replaces 0392478. |
| 28 |
0342787 |
SEAL |
| 37 |
0313754 |
O RING |
| 66 |
0308843 |
SCREW, Gearcase to housing |
| 68 |
0306503 |
SCREW, Short |
| 70 |
0313697 |
SCR,Grc to hsg.long |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 76 |
0127466 |
TRIM TAB |
| 77 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0321452 |
GROMMET |
| 83 |
0331188 |
O-Ring |
| 87 |
PROPELLER |
Ref: 88 0332393 *Converging Ring 0332393 |
| 91 |
0389145 |
CHROME CUP & PLATE KIT |
| 92 |
5000309 |
GEARCASE SEAL KIT This part replaces 0396349. |
| 93 |
0432955 |
WATER PUMP REPAIR KIT (includes impeller housing) This part replaces 0436957. |
| 0432624 |
0432624 |

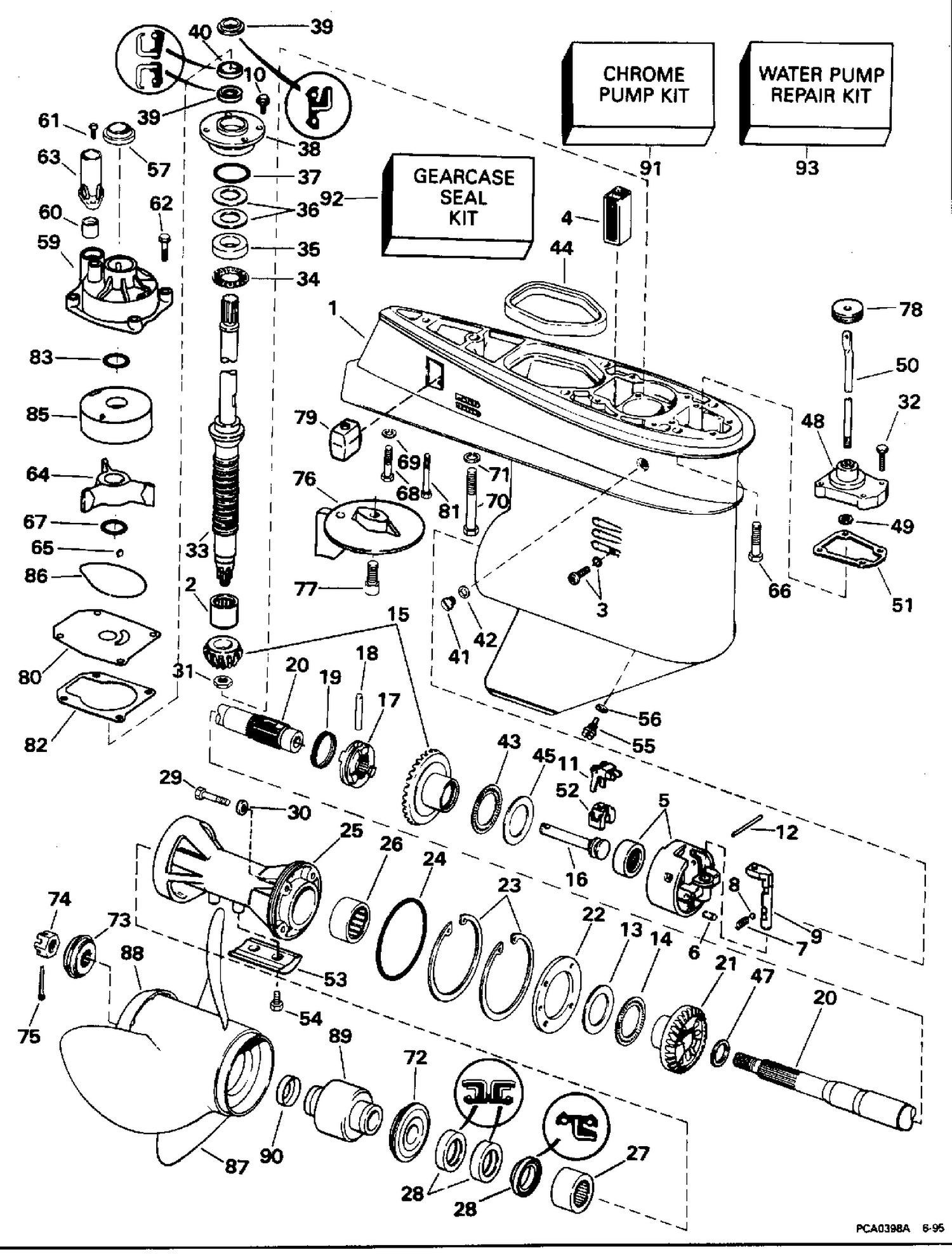

GEARCASE ASSY. |
