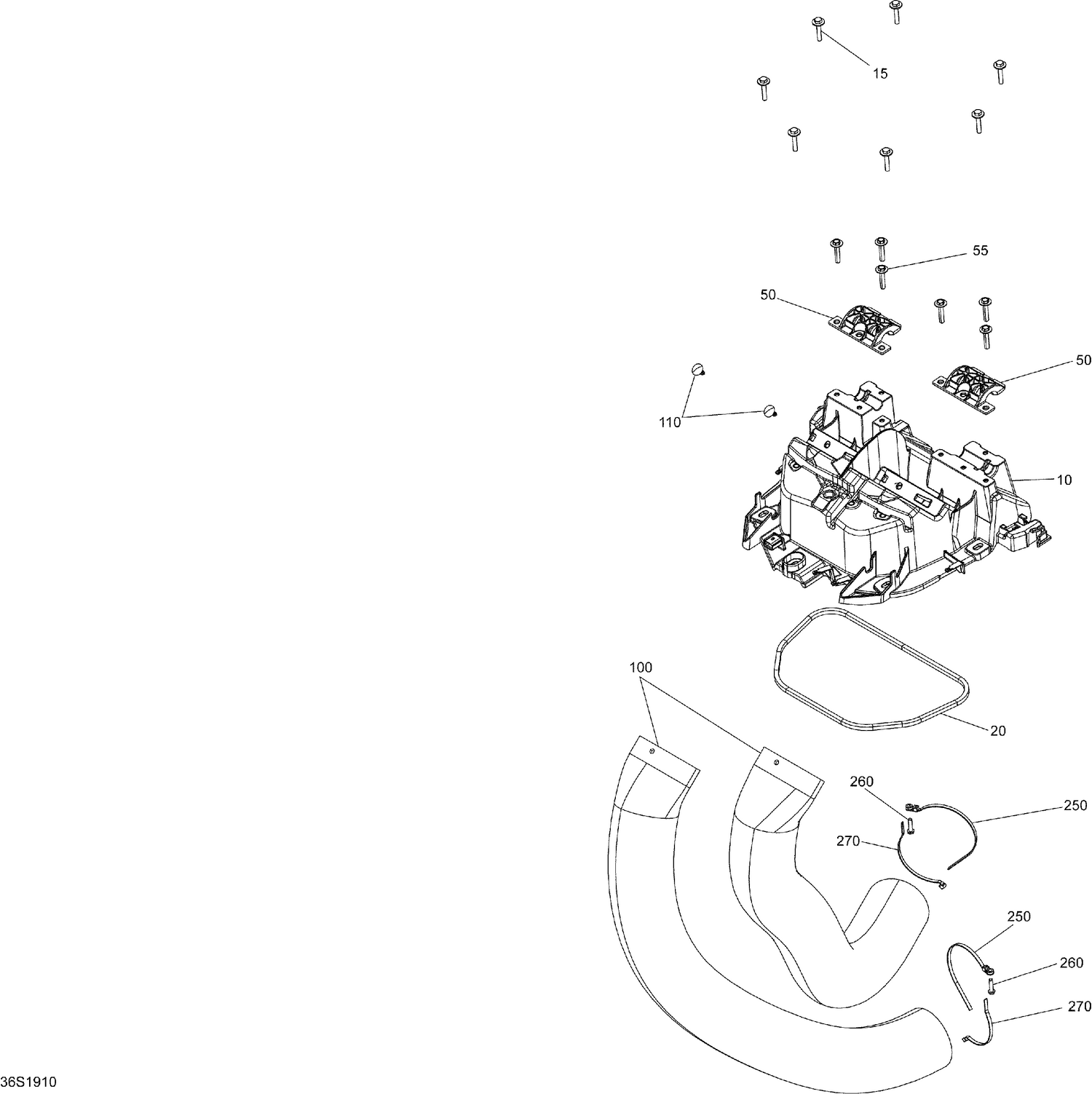

09- Ventilation
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 237000065 | Ventilation Adaptor |
| 15 | 250000969 | Hex Screw SEMS M6X35, SS |
| 20 | 219704374 | Gasket 1000Mm Long |
| 50 | 237000066 | Mount Clamp |
| 55 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 100 | 237000067 | Flexible Hose |
| 110 | 293730011 | Black, Dart |
| 250 | 293750049 | Tie Rap 305 mm with Screw Mount Hole #10 |
| 260 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 270 | 414115200 | Tie-Rap 180 mm |
