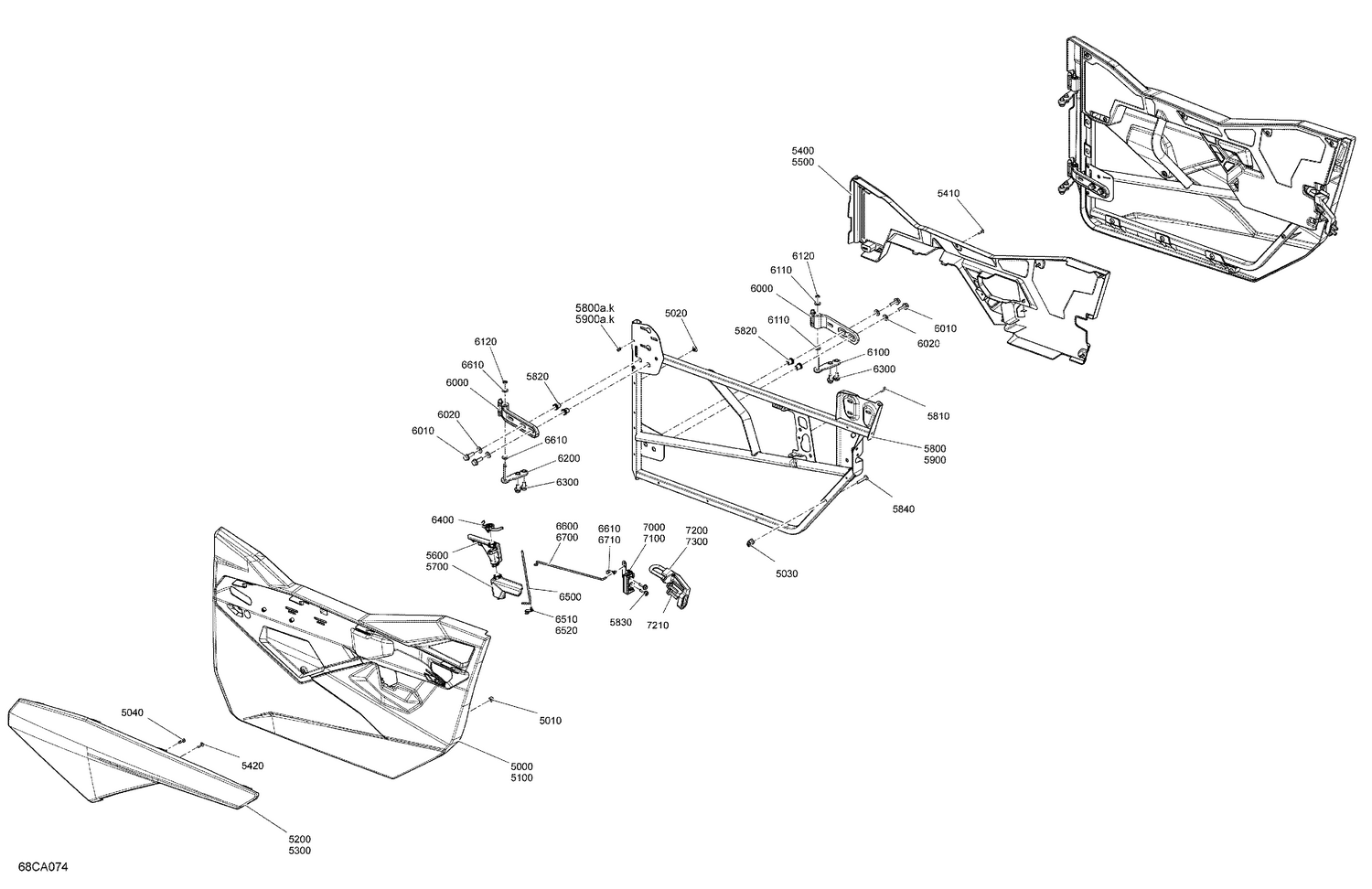

07- Body - Doors
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 705011479 | LH Exterior Door Panel |
| 5010 | 293830005 | Rubber Bumper |
| 5020 | 293150104 | Pop Rivet 3/16" |
| 5030 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5040 | 250000720 | Torx Screw K50 X 16 |
| 5100 | 705011480 | RH Exterior Door Panel |
| 5400 | 715006764 | LH Door Panel Ass'y |
| 5410 | 250000720 | Torx Screw K50 X 16 |
| 5420 | 250000720 | Torx Screw K50 X 16 |
| 5500 | 715006765 | RH Door Panel Ass'y |
| 5600 | 705011585 | LH Opening Handle |
| 5700 | 705011586 | RH Opening Handle |
| 5810 | 250000720 | Torx Screw K50 X 16 |
| 5820 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 5830 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 5840 | 250000541 | Torx Screw M6 X 35 |
| 6000 | 705013228 | Hinge |
| 6010 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 6020 | 503192494 | Washer |
| 6100 | 705011629 | Lower Hinge Ajustement |
| 6110 | 234081100 | Flat Washer 8 mm, Nylon |
| 6120 | 705601030 | Circlip |
| 6200 | 705012506 | Upper Hinge Ajustement |
| 6300 | 250001033 | Hex. Flange Screw DIN.6921 S.Grip |
| 6400 | 705011630 | Handle Spring |
| 6500 | 705206132 | Handle Axle |
| 6510 | 708300202 | RH Tie Rod Clip |
| 6520 | 708300182 | LH Tie Rod Clip |
| 6600 | 705206133 | LH Locking Rod |
| 6610 | 708300202 | RH Tie Rod Clip |
| 6700 | 705206134 | RH Locking Rod |
| 6710 | 708300182 | LH Tie Rod Clip |
| 7000 | 705013095 | LH Latch |
| 7100 | 705013096 | RH Latch |
| 7200 | 705207027 | LH Stricker Support |
| 7210 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
