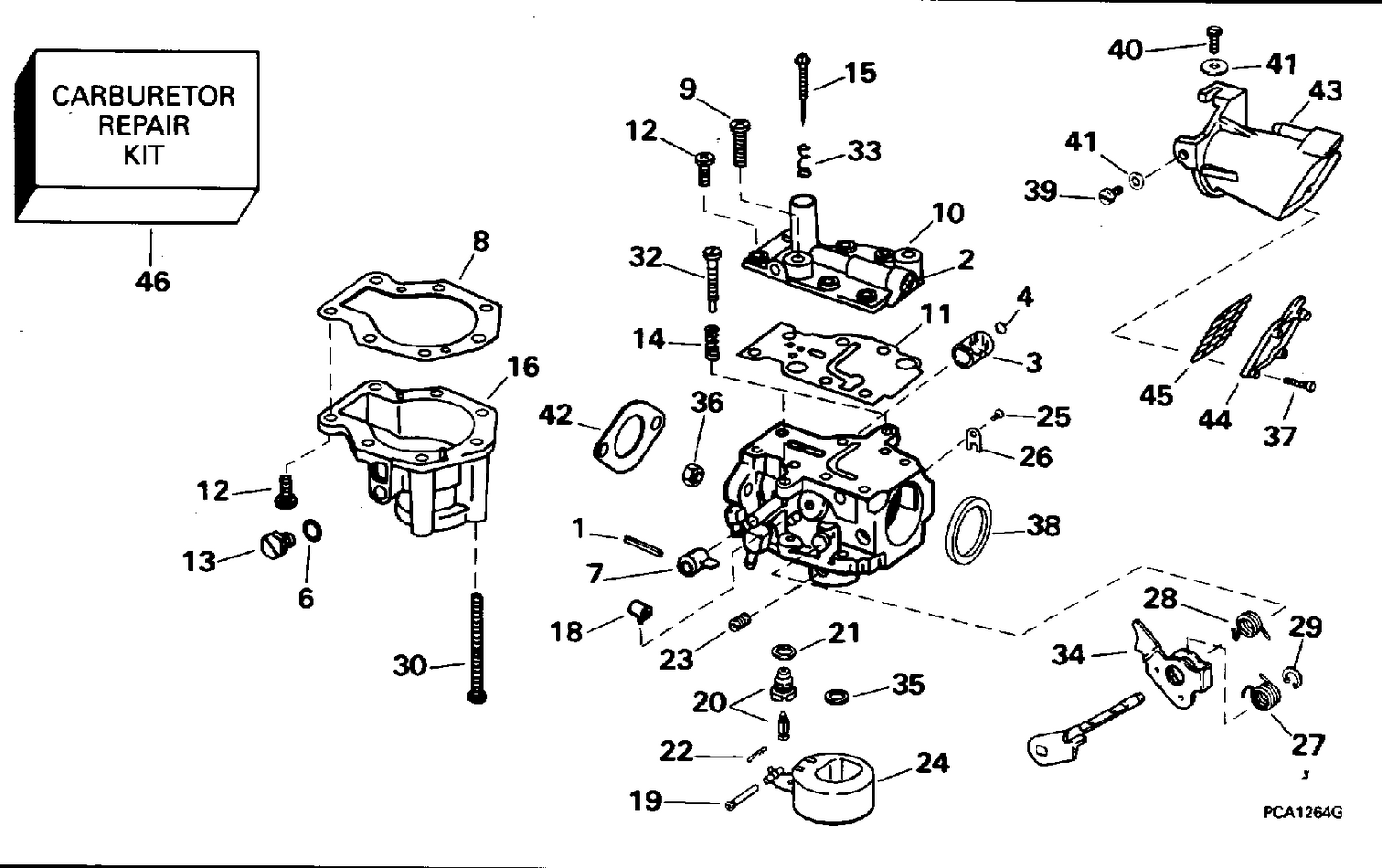

| Ref | Part Number | Description |
|---|
| 4 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 7 |
0340536 |
LEVER, Idle adjustment |
| 8 |
0342072 |
GASKET, Bowl |
| 10 |
0437287 |
COVER, Carb. body |
| 16 |
0342193 |
FLOAT CHAMBER |
| 22 |
0336842 |
CLIP, SPRING |
| 32 |
0341450 |
SCREW, Idle adjustment |
| 35 |
0341185 |
GASKET, Nozzle well |
| 36 |
0337415 |
NUT |
| 37 |
0337353 |
SCREW, Retainer & screen |
| 39 |
0337356 |
SCREW, Air horn to carb., side |
| 40 |
0337357 |
SCREW, Air horn to carb., top |
| 42 |
0318932 |
JOINT |
| 43 |
0338914 |
AIR HORN |
| 44 |
0341402 |
RETAINER, Screen to air horn |
| 45 |
0340009 |
SCREEN, Air horn |
| 0436788 |
0438791 |
CARBURETOR ASSY. This part replaces 0436788. |
| 0437105 |
0438792 |
CARBURETOR ASSY. This part replaces 0437105. |
| 0437961 |
0438792 |
CARBURETOR ASSY. This part replaces 0437961. |
| 0437962 |
0438791 |
CARBURETOR ASSY. This part replaces 0437962. |
| 0437965 |
0438792 |
CARBURETOR ASSY. This part replaces 0437965. |
