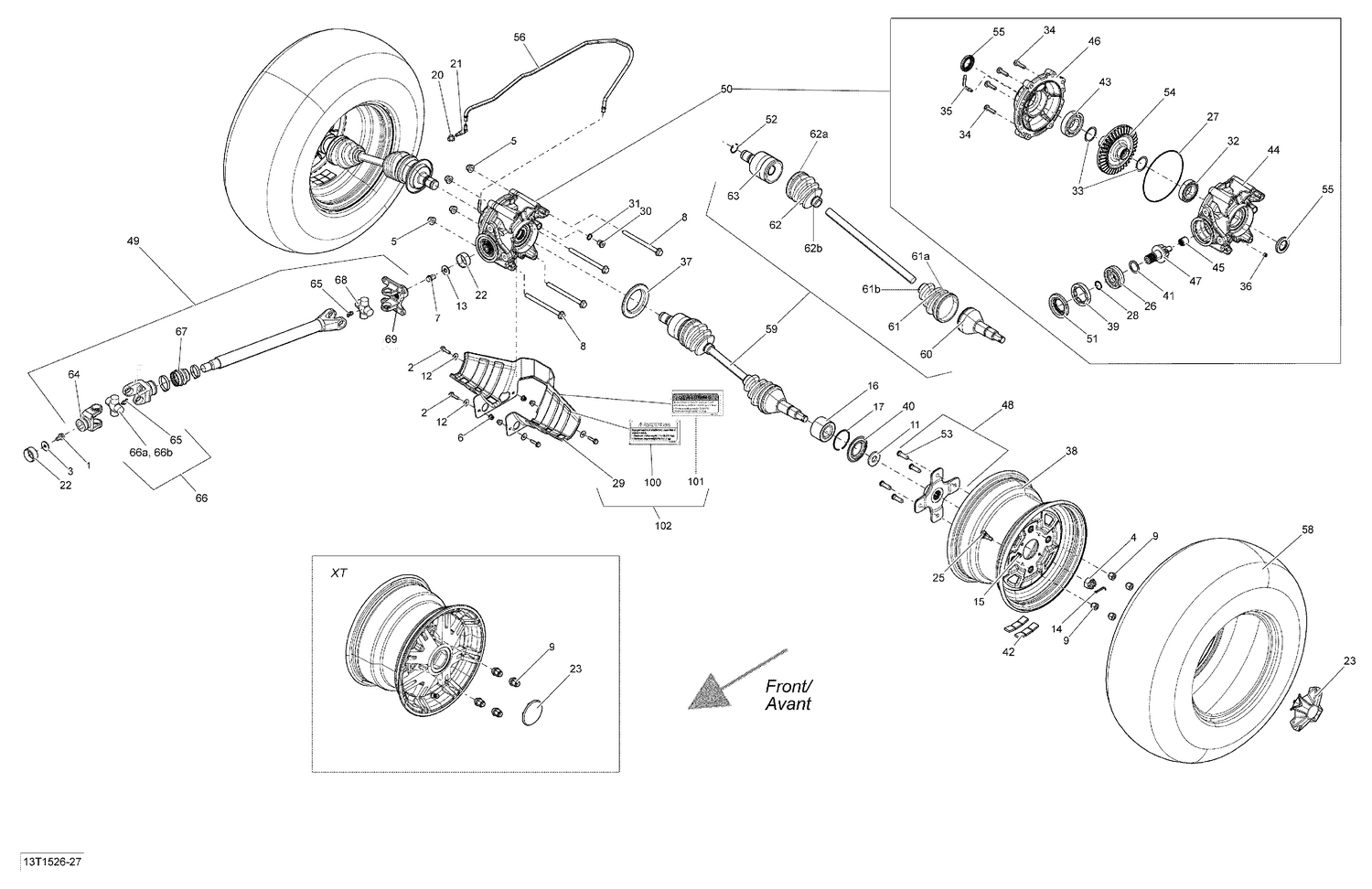

| Ref | Part Number | Description |
|---|
| 1 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 2 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 3 |
211200041 |
Washer |
| 4 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 5 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
250000378 |
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 8 |
250001041 |
Hex. Flange Screw M10 X 135 This part replaces 250000508. |
| 9 |
XXX |
Not Available As Spare Parts |
| 11 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 12 |
250200082 |
Flat Washer |
| 13 |
250200102 |
Flat Washer M12 |
| 14 |
250400036 |
Cotter Pin |
| 15 |
293000110 |
Valve Cap |
| 16 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 17 |
293370019 |
Circlip |
| 20 |
293720029 |
Grommet |
| 21 |
414580600 |
Elbow Male Connector |
| 22 |
705400036 |
Wear Ring |
| 23 |
XXX |
Not Available As Spare Parts |
| 25 |
705400193 |
Rim Valve With Cap |
| 26 |
705500260 |
Ball Bearing |
| 27 |
705500265 |
Seal |
| 28 |
705500267 |
O-Ring |
| 29 |
703500722 |
Protector Kit |
| 30 |
705500504 |
Fill Level Plug |
| 31 |
705500506 |
Copper Washer |
| 32 |
705502737 |
Ball Bearing This part replaces 705500749. |
| 33 |
705502060 |
Differential Shim 0.02 mm This part replaces 703500548. |
| 34 |
705401601 |
Screw This part replaces 705500892. |
| 35 |
705500893 |
VENT VALVE - Call your local BRP dealership |
| 36 |
705500894 |
Drain Plug |
| 37 |
705500901 |
WEAR SLEEVE - Call your local BRP dealership |
| 38 |
XXX |
Not Available As Spare Parts |
| 39 |
705502059 |
Nut This part replaces 705500987. |
| 40 |
705501121 |
Wear Sleeve |
| 41 |
705501162 |
Pinion Gear Shim |
| 41 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 43 |
705502738 |
Ball Bearing This part replaces 705501389. |
| 44 |
705501395 |
PINION REAR COVER - Call your local BRP dealership |
| 45 |
705501408 |
Needle Bearing |
| 46 |
705501507 |
REAR DIFFERENTIAL COVER - Call your local BRP dealership This part replaces 705501393. |
| 47 |
703500873 |
Gear-10/36 Too Kit This part replaces 705501570. |
| 48 |
705501713 |
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership |
| 50 |
703501033 |
Differential Kit This part replaces 705501997. |
| 51 |
705401481 |
Oil Seal |
| 52 |
705501781 |
Circlip |
| 53 |
250300055 |
Wheel Stud M10 X 1.25 |
| 54 |
703500873 |
Gear-10/36 Too Kit This part replaces 705501403. |
| 55 |
705501996 |
Oil Seal |
| 56 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 59 |
705501485 |
Rear - Premium CV Axle This part replaces 705501483. |
| 59 |
705501486 |
Rear - Premium CV Axle This part replaces 705501484. |
| 60 |
705501782 |
JOINT_CV EXT - Call your local BRP dealership |
| 61a |
715900260 |
Oetiker Clamp, Large |
| 61b |
715900261 |
Oetiker Clamp, Small |
| 62a |
715900262 |
Oetiker Clamp, Large |
| 62b |
715900261 |
Oetiker Clamp, Small |
| 63 |
Not |
Available As Spare Part - Plunging Joint |
| 64 |
715900116 |
Fixed Yoke Joint |
| 65 |
703500813 |
GREASE FITTING - Call your local BRP dealership |
| 66 |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703500814. |
| 66a |
715900183 |
U-Joint |
| 66b |
715900117 |
SNAP RING - Call your local BRP dealership |
| 67 |
715900118 |
Rubber Boot |
| 68 |
715900326 |
Universal Joint This part replaces 715500371. |
| 69 |
715900291 |
FLANGE - Call your local BRP dealership This part replaces 715900107. |
| 100 |
704900766 |
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership |
| 101 |
704901905 |
WARNING DECAL, TRAILER - Call your local BRP dealership This part replaces 704901489. |
