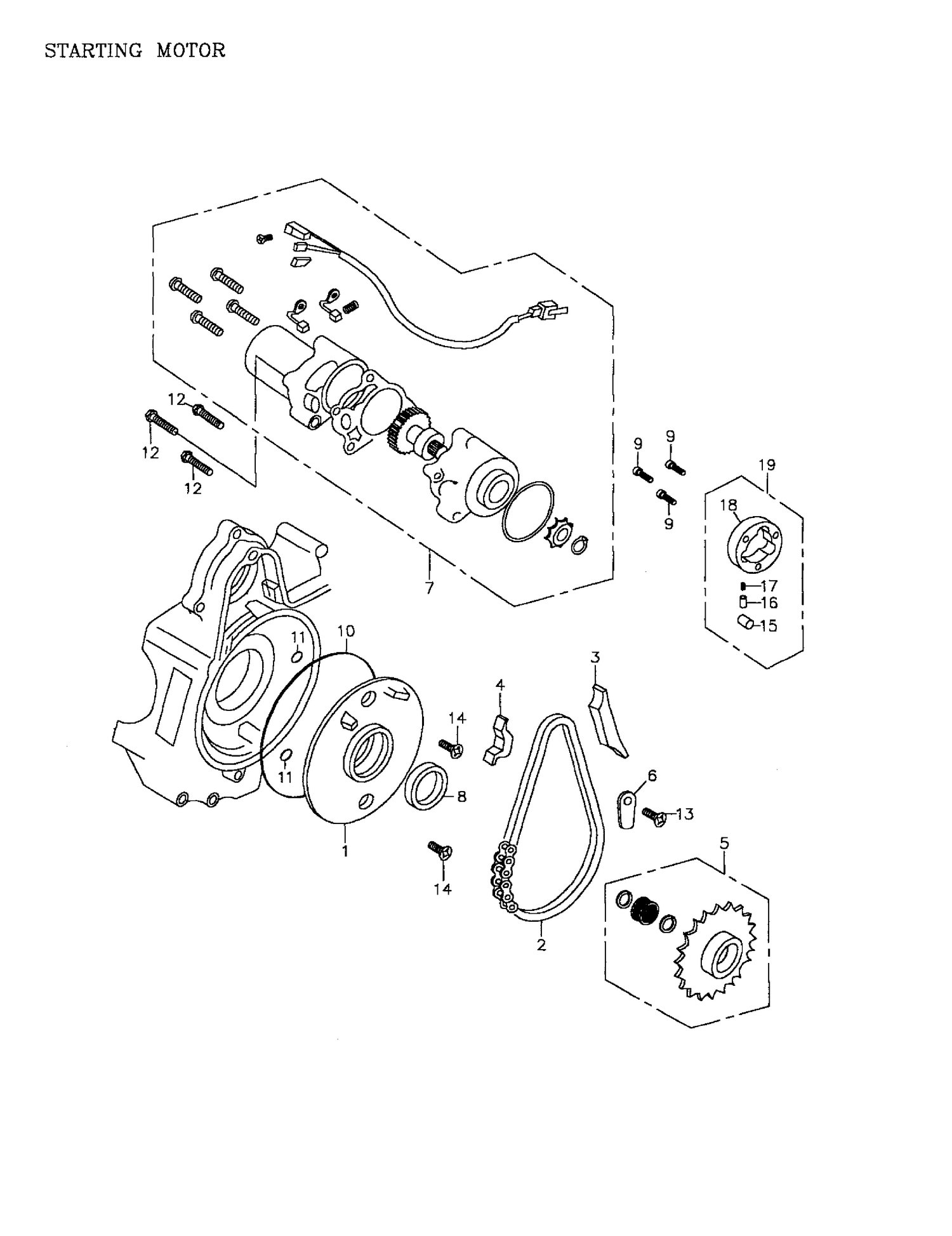

04- Starting Motor 172-08
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A11321152000 | Oil Separate Plate |
| 2 | A28101152000 | Starter Chain |
| 3 | A28102152000 | STARTER CHAIN GUIDE - Call your local BRP dealership |
| 4 | A28103152000 | Starter Chain Protector |
| 5 | A28110152000 | STARTER SPROCKET COMP. - Call your local BRP dealership |
| 6 | A28117152000 | STARTING SPROCKET PLATE - Call your local BRP dealership |
| 7 | A31200152000 | Starter Motor |
| 8 | A9650030424 | Oil Seal |
| 9 | A9100006014 | Hex. Socket Bolt M6 X 14 |
| 10 | A91107152000 | Oil Ring |
| 11 | A91306152000 | OIL RING - Call your local BRP dealership |
| 12 | A920000604510 | Hex. Bolt M6 X 45 |
| 13 | A9350006010 | Pan Head Phillips Bolt M6 X 10 |
| 14 | A9390206016 | Flat Head Phillips Screw M6 X 16 |
| 15 | A28411120000 | Starter Clutch Roller |
| 16 | A28412152000 | Starter Clutch Guider |
| 17 | A28413152000 | Starter Clutch Spring |
| 18 | A28120152000 | Clutch Cover Comp |
