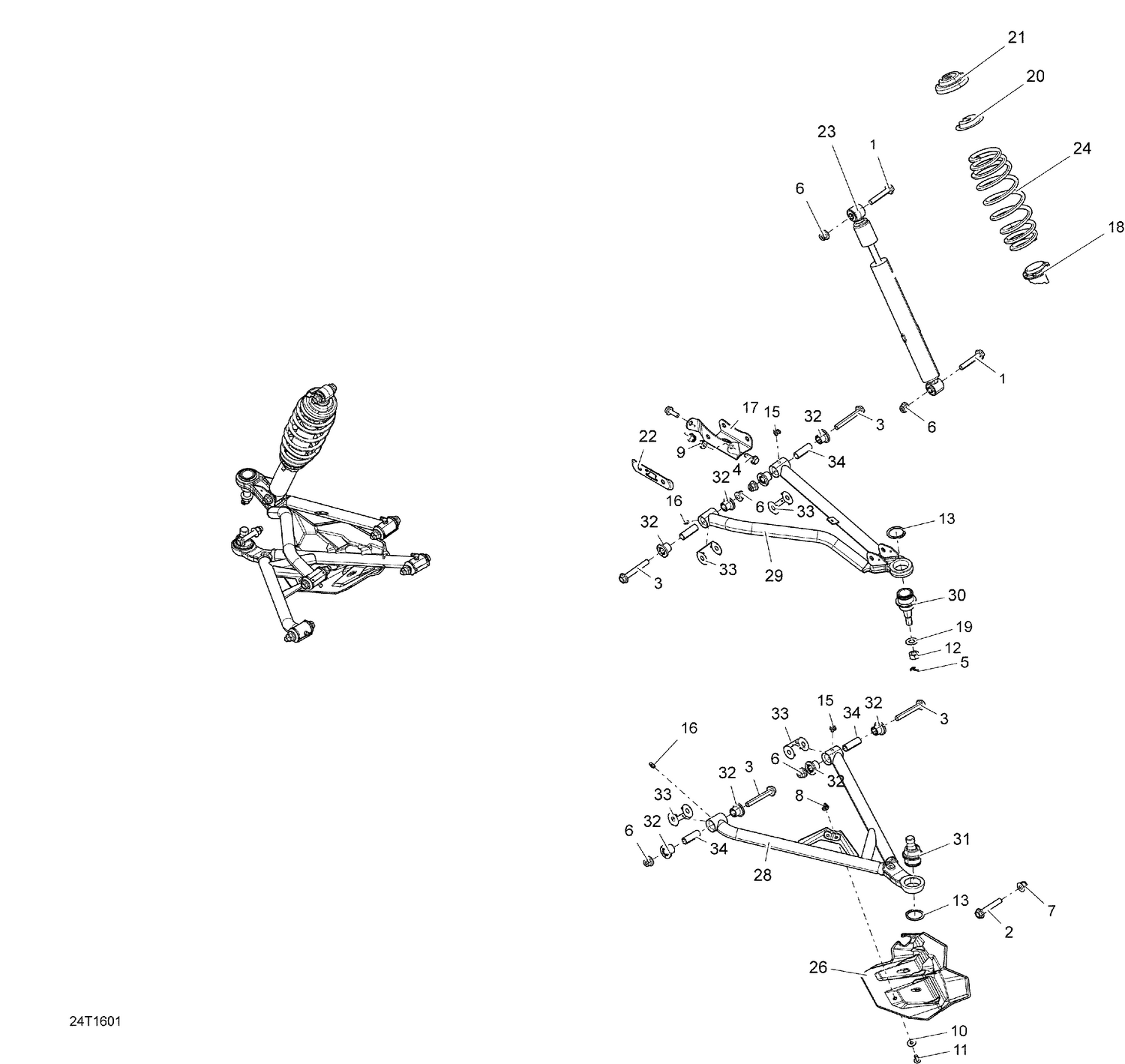

07- Front Suspension - All Models
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207605546 | Hex. Flange Screw M10 X 55 |
| 2 | 207606044 | Hex. Flange Screw M10 X 60 |
| 3 | 207607046 | Hex. Flange Screw M10 X 70 |
| 4 | 207682544 | Hex. Flange Screw M8 X 25 |
| 5 | 211400017 | Cotter Pin |
| 6 | 233201436 | Hex. Flange Elastic Nut M10 |
| 7 | 233201434 | Hex. Flange Elastic Nut M10 |
| 8 | 233261494 | Hex. Flange Elastic Nut M6 |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 234062670 | Stainless Steel Flat Washer |
| 11 | 250000755 | Torx Screw M6 X 16 |
| 12 | 250100099 | Nut M12 |
| 13 | 293370035 | Circlip |
| 15 | 293550056 | Grease Fitting 90° |
| 16 | 408200700 | Grease Fitting |
| 17 | 705203247 | Upper Front Holder |
| 19 | 706200281 | Hardened Washer This part replaces 250200086. |
| 20 | 706200785 | Cap |
| 21 | 706200881 | Spring Stopper |
| 22 | 706200998 | Front Suspension Cross Plate |
| 26 | 706202808 | LH Joint Protector This part replaces 706201829. |
| 26 | 706202809 | RH Joint Protector This part replaces 706201830. |
| 28 | 706202870 | Black, RH Lower Arm This part replaces 706201875. |
| 28 | 706204639 | LH Lower Suspension Arm This part replaces 706201874. |
| 29 | 706204641 | LH Upper Suspension Arm This part replaces 706201876. |
| 29 | 706204642 | RH Upper Suspension Arm This part replaces 706201877. |
| 30 | 706202044 | Ball Joint |
| 31 | 706202045 | Ball Joint |
| 32 | 703500875 | Suspension Arm Bushing Kit This part replaces 706202088. |
| 33 | 703500875 | Suspension Arm Bushing Kit This part replaces 706202089. |
