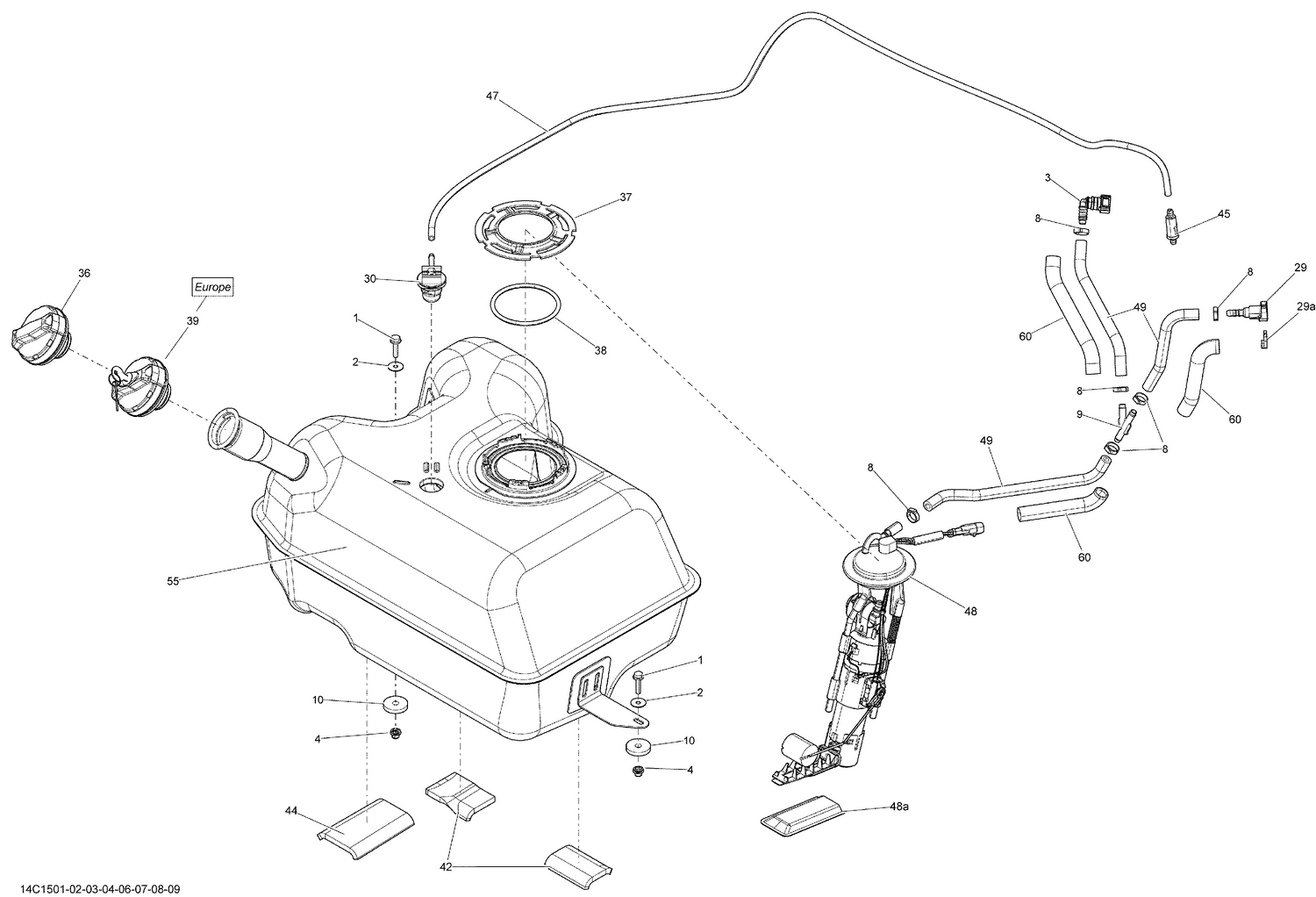

02- Fuel System _14C1507
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662544 | Hex. Flange Screw M6 X 25 |
| 2 | 224060201 | Flat Washer |
| 3 | 275500700 | Quick Attach 90° |
| 4 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 8 | 293650047 | Crimp Clamp, 15.3-706R |
| 9 | 293710136 | Y-Fitting, 5/16'' |
| 10 | 293830037 | Rubber Washer |
| 29 | 709000125 | Female Quick Fitting Ass'y |
| 29a | 513033135 | Locking Clip |
| 30 | 709000413 | Rollover Valve This part replaces 709000127. |
| 36 | 709000529 | Fuel Cap |
| 37 | 709000274 | Ring |
| 38 | 709000275 | O-Ring |
| 39 | XXX | Not Available As Spare Parts |
| 42 | 709000288 | Neoprene Pad |
| 44 | 709000289 | NEOPRENE PAD - Call your local BRP dealership |
| 45 | 709000330 | Filter |
| 47 | 219704410 | Polyurethane Hose 10000Mm Long |
| 48 | 709000759 | Fuel Pump This part replaces 709000362. |
| 49 | 219704440 | Was 709000163 Fuel Line |
| 55 | 709000753 | Fuel Tank This part replaces 709000467. |
| 60 | 219704408 | Tubing 16 Mm 1000Mm Long |
