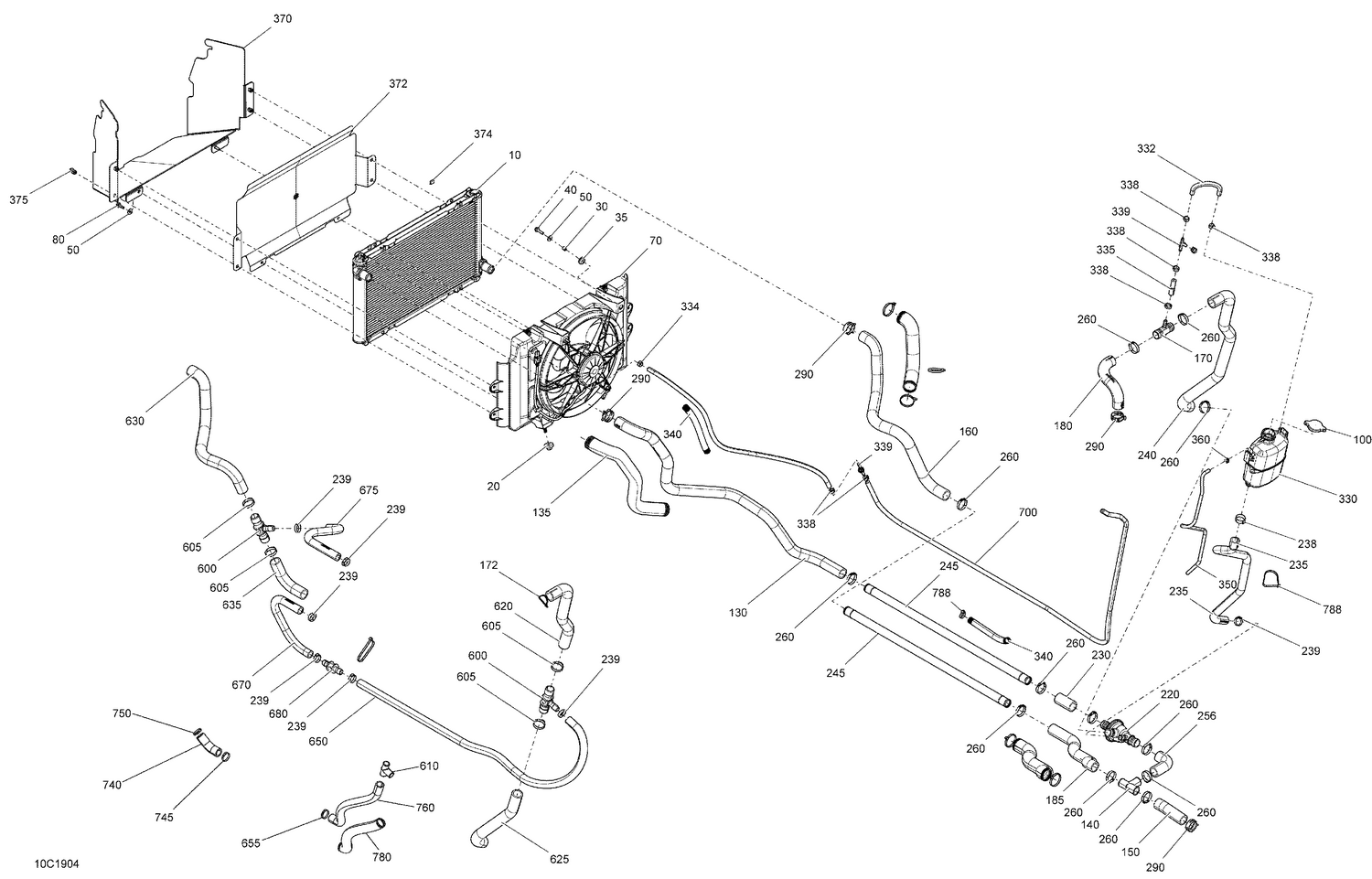

01- Cooling - HD10 - CAB
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200951 | Radiator This part replaces 709200533. |
| 20 | 709200285 | Grommet |
| 30 | 293900105 | Bushing |
| 35 | 709000582 | Grommet This part replaces 293720053. |
| 40 | 207662544 | Hex. Flange Screw M6 X 25 |
| 50 | 234062410 | Flat Washer 6 mm |
| 70 | 709200534 | Fan Ass'y |
| 80 | 207662044 | Hex. Flange Screw M6 X 20 |
| 90 | 234062410 | Flat Washer 6 mm |
| 100 | 709200207 | Radiator Pressure Cap |
| 130 | 709200537 | Radiator Inlet Hose |
| 135 | 219704428 | Tubing 35 MM 1000MM Long |
| 140 | 509000219 | T-Fitting |
| 150 | 709200545 | Pump Hose |
| 160 | 219704428 | Tubing 35 MM 1000MM Long |
| 170 | 509000510 | T-Fitting |
| 180 | 709200915 | Hose Engine Out This part replaces 709200540. |
| 185 | 709200916 | Hose Engine In This part replaces 709200541. |
| 188 | 293750008 | Tie Wrap 368 mm |
| 190a | 219704428 | Tubing 35 MM 1000MM Long |
| 220 | 709200581 | Thermostat Housing |
| 230 | 709200299 | Hose |
| 235 | 709200918 | Hose Coolant Tank Out This part replaces 709200582. |
| 238 | 293650165 | Oetiker Gear Clamp |
| 239 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 245 | 709200658 | Heater Tubing |
| 255a | 219704428 | Tubing 35 MM 1000MM Long |
| 256 | 709200913 | Thermostat Hose This part replaces 709200538. |
| 260 | 509000162 | Gear Clamp |
| 290 | 293650166 | Norma Spring Clamp |
| 330 | 709201323 | Coolant Tank This part replaces 709200412. |
| 332 | 219704416 | Was 415129508 Bleeder Hose |
| 334 | 293650025 | Oetiker Gear Clamp |
| 335 | 709200606 | Bleeding Hose |
| 338 | 293650047 | Crimp Clamp, 15.3-706R |
| 339 | 293710059 | Y-Fitting |
| 340 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 350 | 219704389 | Polyurethane Hose 4000MM Long |
| 360 | 414554800 | Spring Clamp |
| 370 | 705012573 | Deflector |
| 372 | 708201442 | Protective Grille This part replaces 708200609. |
| 374 | 517306751 | Clip |
| 375 | 293150230 | Tuflok Plastic Rivet |
| 380 | 207662044 | Hex. Flange Screw M6 X 20 |
| 385 | 234062410 | Flat Washer 6 mm |
| 600 | 509000995 | T Fitting |
| 605 | 509000162 | Gear Clamp |
| 610 | 509000219 | T-Fitting |
| 620 | 709200611 | Thermostat Inlet Hose |
| 625 | 709200817 | Thermostat Inlet Hose This part replaces 709200737. |
| 630 | 709200807 | Hose-Outlet This part replaces 709200613. |
| 635 | 709200614 | Radiator Outlet Hose This part replaces 709200614. |
| 650 | 709200658 | Heater Tubing |
| 655 | 509000162 | Gear Clamp |
| 660 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 670 | 709200745 | HOSE - Call your local BRP dealership |
| 675 | 709200621 | Outlet Hose |
| 680 | 509001108 | Fitting |
| 690 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 700 | 219704416 | Was 415129508 Bleeder Hose |
| 720 | 293710059 | Y-Fitting |
| 730 | 293650047 | Crimp Clamp, 15.3-706R |
| 740 | 709200741 | Pump Hose |
| 745 | 509000162 | Gear Clamp |
| 750 | 509000162 | Gear Clamp |
| 760 | 709200740 | Hose |
