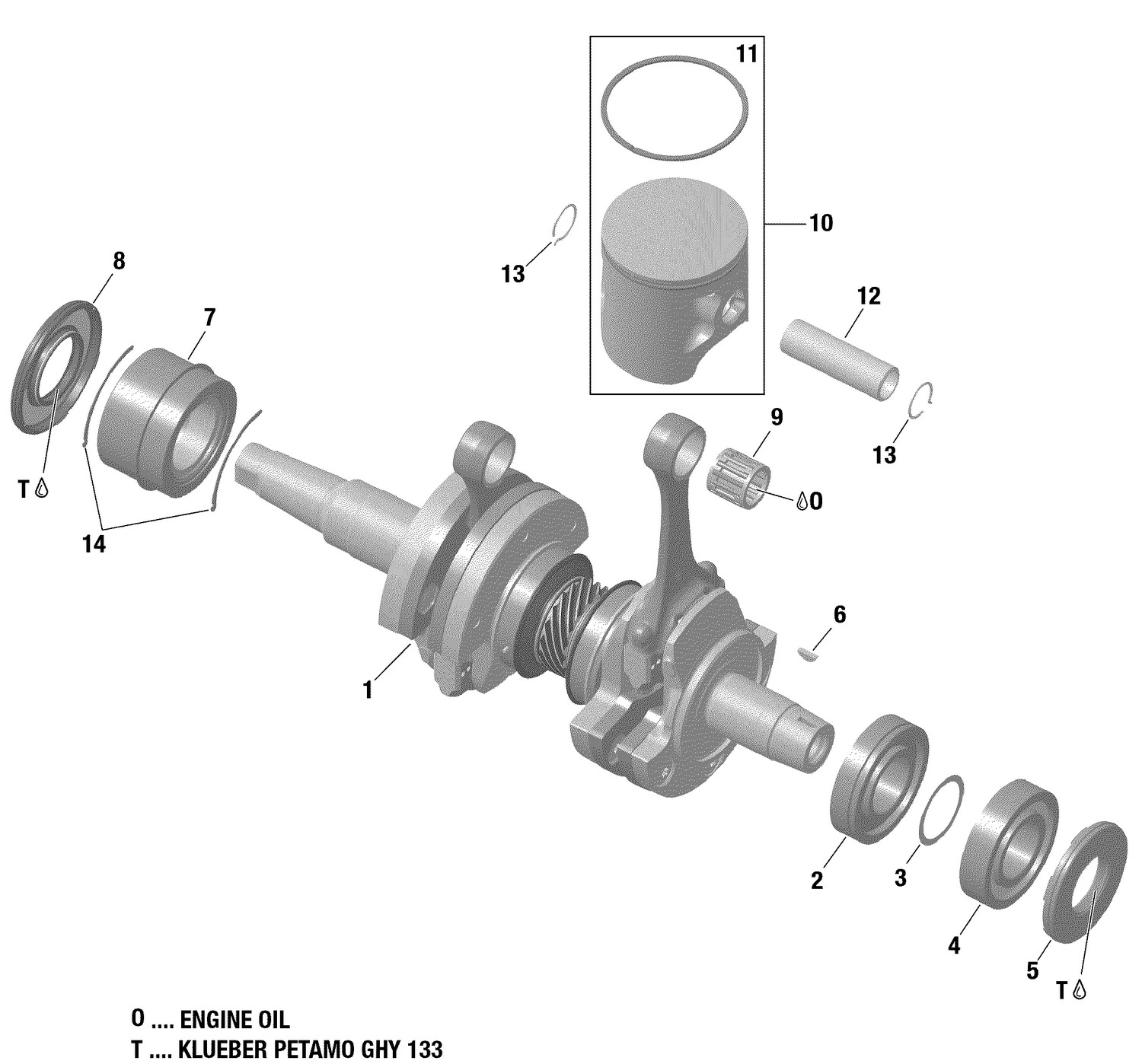

01- Crankshaft And Pistons
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832178 | Bearing |
| 3 | 420927401 | Shim 35.4/43/0.3 |
| 4 | 420832575 | Ball Bearing 6207 |
| 5 | 420831955 | Oil Seal |
| 6 | 420246015 | Woodruff Key |
| 7 | 420832130 | Roller Bearing |
| 8 | 420931284 | Oil Seal |
| 9 | 420832030 | Needle Bearing |
| 11 | 420815416 | Semi-Trapez Ring |
| 12 | 420916480 | Piston Pin |
| 13 | 420845467 | Piston Circlip |
| 14a | Not | Available As Spare Part - Shim 0.5 |
| 14b | Not | Available As Spare Part - Shim 0.8 |
| 14c | Not | Available As Spare Part - Shim 1.0 |
| 14d | Not | Available As Spare Part - Shim 1.2 |
| 14e | Not | Available As Spare Part - Shim 1.4 |
