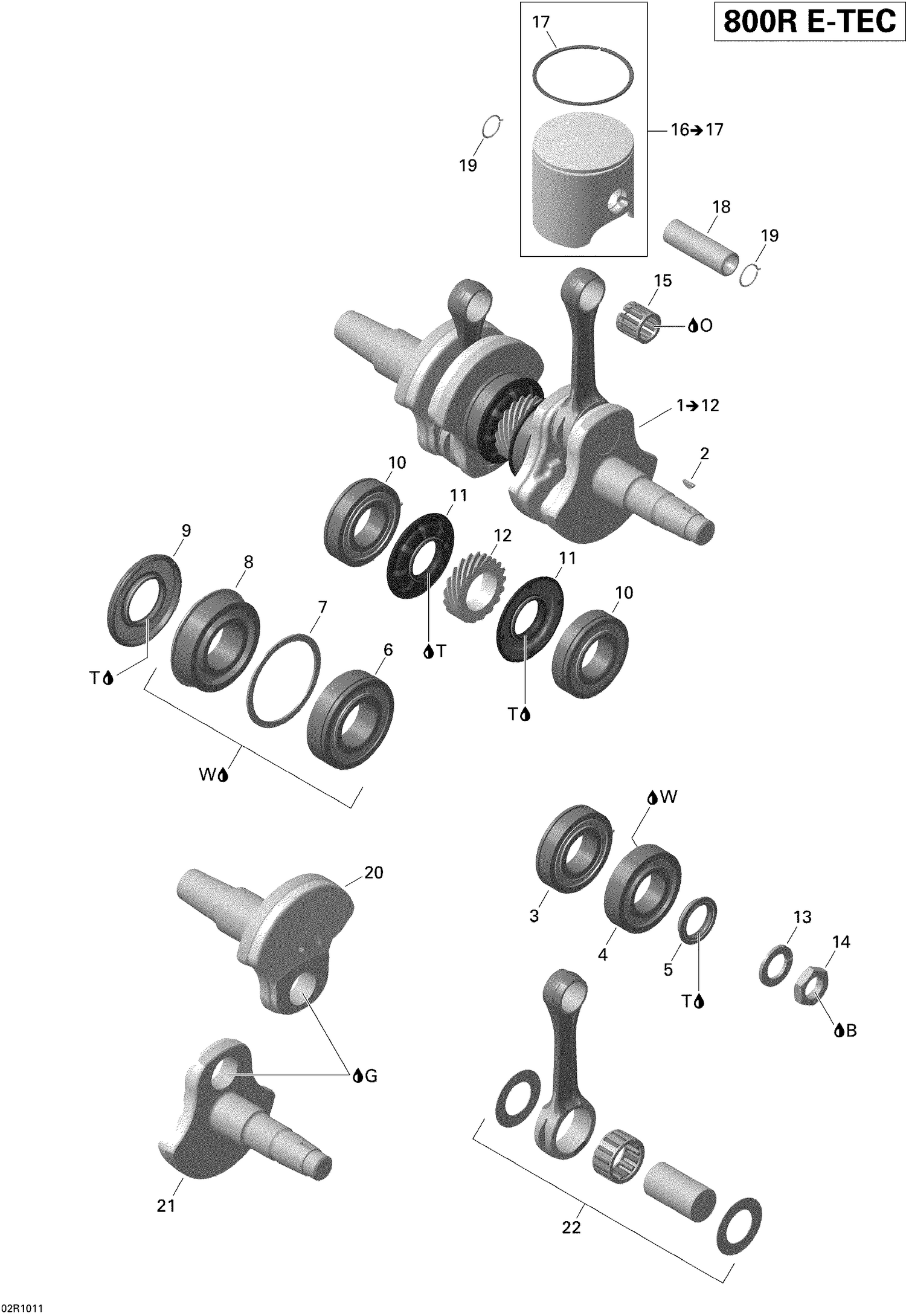

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| G |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| O |
Not |
Available As Spare Part - Engine Oil |
| T |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 1 |
420893097 |
Crankshaft Ass'y This part replaces 421000668. |
| 2 |
420246015 |
Woodruff Key |
| 3 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832633. |
| 4 |
420832575 |
Ball Bearing 6207 |
| 5 |
420931795 |
Oil Seal This part replaces 420931793. |
| 6 |
420832672 |
Ball Bearing Sealed, 6208 This part replaces 420832602. |
| 7 |
420926190 |
Washer |
| 8 |
420832702 |
Ball Bearing |
| 9 |
420931284 |
Oil Seal |
| 10 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832633. |
| 11 |
420931455 |
Oil Seal |
| 12 |
420834565 |
CENTRAL GEAR - Call your local BRP dealership |
| 13 |
420945759 |
Lock Washer, 22 mm |
| 14 |
420842239 |
Hex. Nut, M22 X 1.5 |
| 15 |
420832030 |
Needle Bearing |
| 17 |
420815416 |
Semi-Trapez Ring |
| 18 |
420916480 |
Piston Pin |
| 19 |
420845467 |
Piston Circlip |
| 20 |
Not |
Available As Spare Part - Crankshaft, PTO Side |
| 21 |
Not |
Available As Spare Part - Crankshaft, MAG Side |
| 22 |
420892568 |
Rod Repair Kit, MAG Side |
| 22 |
420892569 |
Rod Repair Kit, PTO Side |
