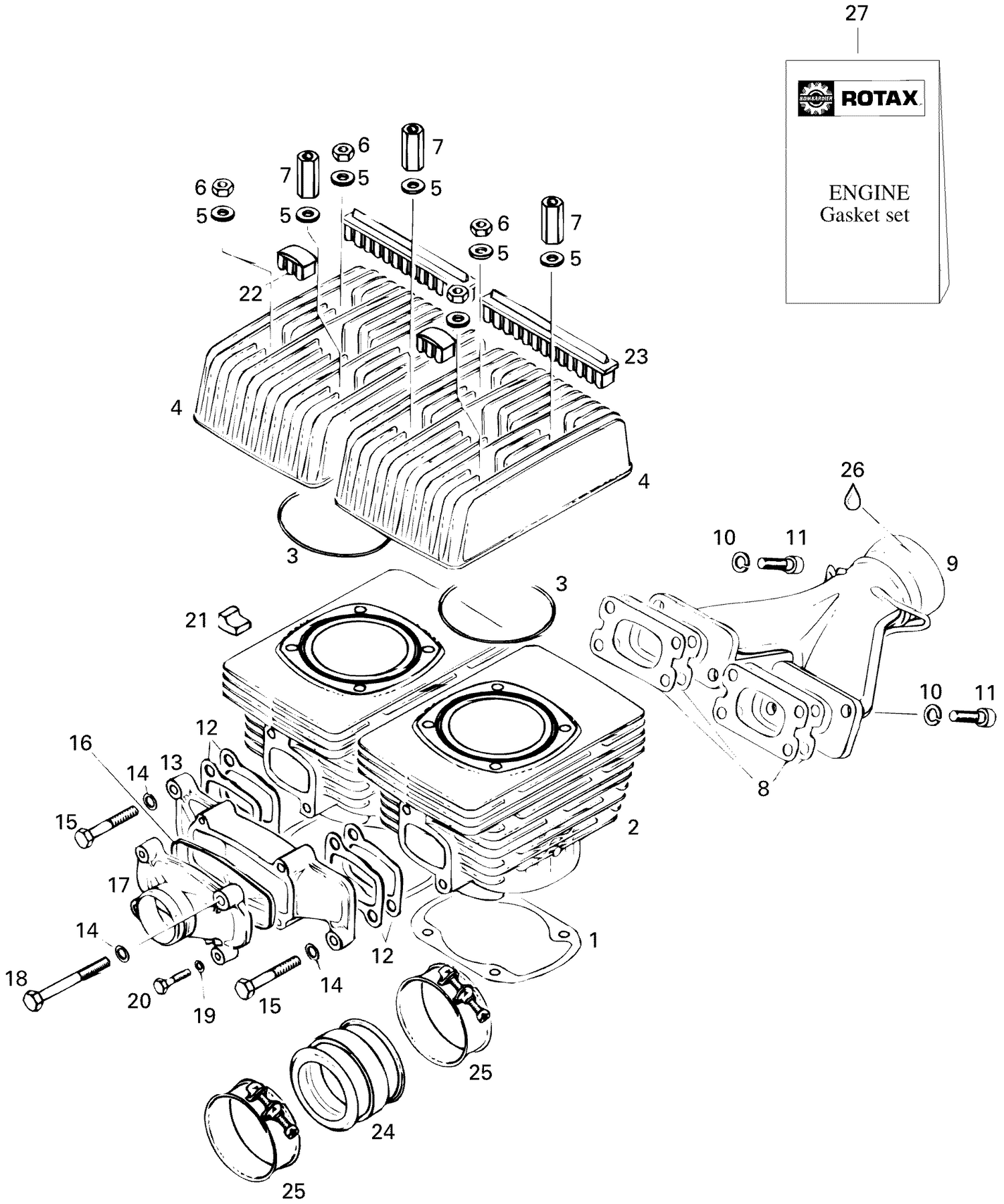

| Ref | Part Number | Description |
|---|
| 1 |
420831855 |
Gasket 0.4 mm |
| 2 |
421000500 |
REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420823649. |
| 3 |
293300026 |
O-Ring This part replaces 420850540. |
| 4 |
420823664 |
Cylinder head |
| 5 |
420250315 |
Flat Washer 8.4 mm This part replaces 420250311. |
| 6 |
232081414 |
Hex. Nut M8 This part replaces 228081045. |
| 7 |
420842050 |
Distance Nut M8 x 37 |
| 8 |
420831849 |
Gasket 1.0 mm |
| 9 |
420878936 |
Exhaust Manifold Ass'y |
| 10 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 11 |
205083044 |
Socket Head Screw M8 X 30 This part replaces 222983065. |
| 12 |
420831867 |
INTAKE GASKET 1.0 MM - Call your local BRP dealership This part replaces 420831866. |
| 13 |
420867450 |
Intake Manifold |
| 14 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 15 |
207084044 |
Hex. Screw M8 X 40 This part replaces 222084065. |
| 16 |
420850151 |
RING-RUBBER - Call your local BRP dealership This part replaces 420850150. |
| 17 |
420867462 |
Intake Cover Ass'y |
| 18 |
207086544 |
Hex. Screw M8 x 65 This part replaces 222086565. |
| 19 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 20 |
207063044 |
Hex. Screw M6 X 30 This part replaces 222063065. |
| 21 |
420860060 |
Rubber Damper |
| 22 |
570125800 |
Short-Noise Damper |
| 23 |
570125900 |
Long-Noise Damper |
| 24 |
420867481 |
Flange |
| 25 |
420951510 |
Clamp |
| 26 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
