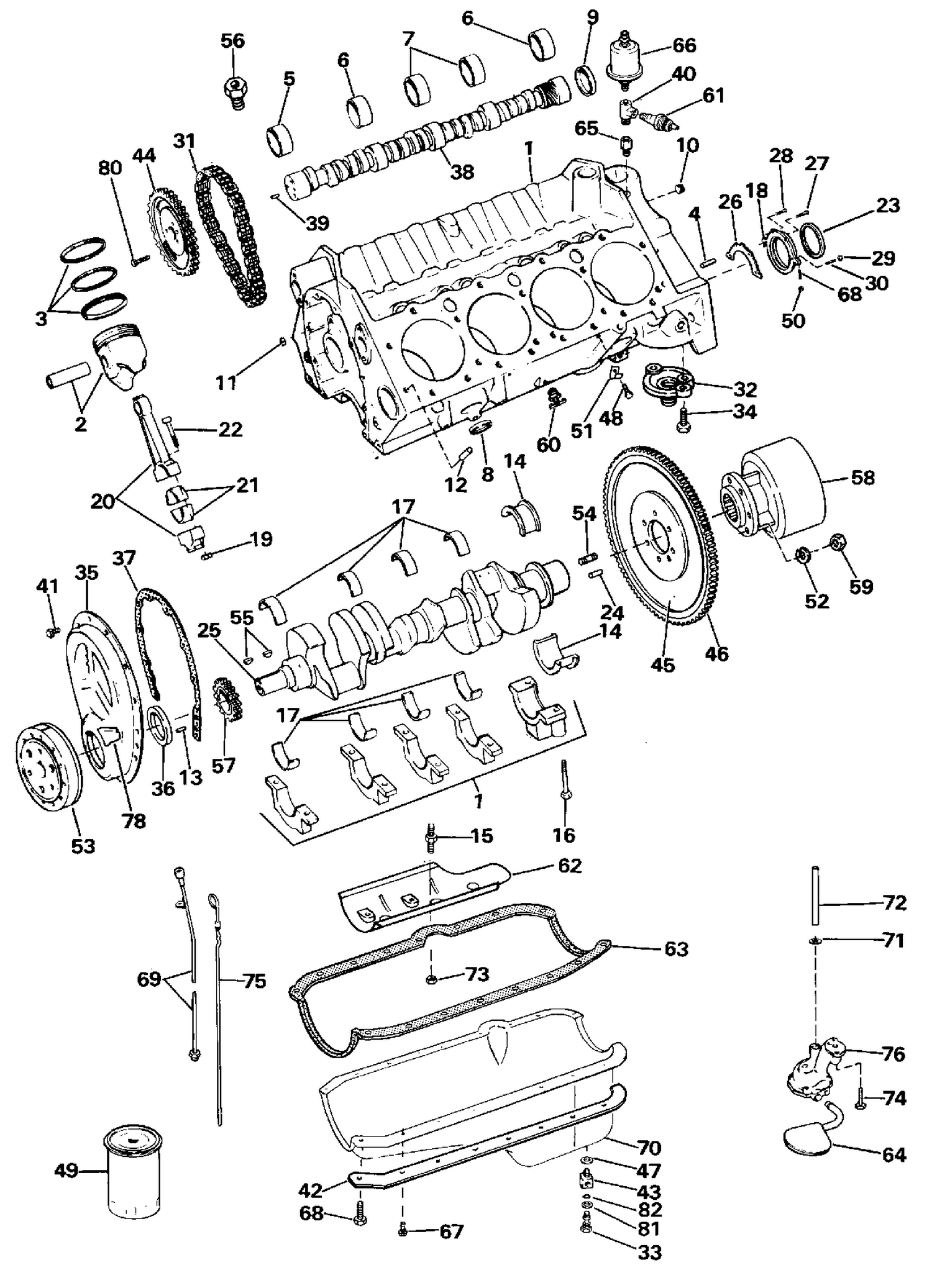

CRANKCASE

CRANKCASE

Parts (96)

RefPart NumberDescription
1 0986063 CYLINDER & CRANKCASE
2 0987990 PISTON & RING SET, 0.001" O/S This part replaces 0986332.
2 3854219 PISTON & RING SET, Standard This part replaces 0986331.
2 3854221 PISTON & RING SET, 0.030 in. O/S This part replaces 0986333.
3 3853960 PISTON RING SET, Standard This part replaces 0986336.
3 3853961 PISTON RING SET, 0.030 in. O/S This part replaces 0986337.
4 3853113 DOWEL PIN This part replaces 0914301.
5 3853210 BEARING, Camshaft, #1 This part replaces 0914421.
6 3853211 BEARING, Camshaft, #2, #4 This part replaces 0914422.
7 3853212 BEARING, Camshaft, #3 This part replaces 0914423.
8 0311376 CORE PLUG, Side
9 3853209 PLUG, Balancer shaft This part replaces 0914420.
11 3853208 PLUG, Oil gallery, front This part replaces 0914419.
12 3853114 DOWEL PIN, Cylinder head This part replaces 0914302.
13 3855972 PIN, Camshaft gear This part replaces 0914424.
14 3853221 BEARING ASSY, Rear, standard This part replaces 0914440.
14 3853222 BEARING ASSY, 0.001 in. U.S. This part replaces 0914441.
14 3853223 BEARING ASSY, 0.002 in. U.S. This part replaces 0914442.
14 3853224 BEARING ASSY, 0.010 in. U.S. This part replaces 0914443.
14 3853225 BEARING ASSY, 0.020 in. U.S. This part replaces 0914444.
15 3853163 STUD, Bearing cap This part replaces 0914365.
16 3853214 BOLT, Crankshaft, bearing cap This part replaces 0914425.
17 3853215 BEARING, #1, 2, 3 & 4, standard This part replaces 0914427.
17 3853216 Bearing This part replaces 0914432.
17 3853217 Bearing This part replaces 0914433.
17 3853218 BEARING, #1, 2, 3 & 4, 0.010 in. U/S This part replaces 0914437.
17 3853220 BEARING, #1, 2, 3 & 4, 0.020 in. U/S This part replaces 0914439.
17 3853381 BEARING, #1, 2, 3 & 4, 0.001 in. U/S This part replaces 0914428.
17 3853382 BEARING, #1, 2, 3 & 4, 0.002 in. U/S This part replaces 0914430.
18 3855820 RETAINER, Crankshaft seal This part replaces 0914412.
19 3853148 NUT, Connecting rod This part replaces 0914341.
20 3853957 CONNECTING ROD ASSY. This part replaces 0986324.
21 3853149 BEARING, Rod, standard This part replaces 0914342.
21 3853150 BEARING, Rod, 0.001 in. U.S. This part replaces 0914343.
21 3853151 BEARING, Rod, 0.002 in. This part replaces 0914344.
21 3853153 BEARING, Rod, 0.020 in. This part replaces 0914346.
21 3856117 BEARING, Rod, 0.010 in. U/S This part replaces 0914345.
22 3853162 BOLT, Connecting rod This part replaces 0914364.
23 3852657 OIL SEAL, Crankshaft, rear This part replaces 0912957.
24 3853200 PIN, Flywheel This part replaces 0914411.
25 3853156 CRANKSHAFT This part replaces 0914353.
26 3852656 GASKET, Rear seal retainer This part replaces 0912956.
27 3853203 BOLT, Seal retainer This part replaces 0914414.
28 3853204 BOLT, Seal retainer This part replaces 0914415.
29 3853206 NUT, Rear seal retainer This part replaces 0914417.
30 3853205 STUD, Rear seal retainer This part replaces 0914416.
31 3852685 CHAIN, Camshaft This part replaces 0913267.
32 0383944 ADAPTER & VALVE ASSY
33 3852694 RETAINER, Oil drain This part replaces 0913363.
34 0315476 BOLT, Adapter
35 3853194 ADAPTER ASSY.-CRANKCASE,Vent hose This part replaces 0914405.
36 3853341 SEAL, Front cover This part replaces 0912989.
37 3852654 GASKET, Front cover This part replaces 0912954.
38 3853159 CAMSHAFT ASSY. This part replaces 0914361.
39 3855972 PIN, Camshaft gear This part replaces 0914424.
40 3852610 TEE, Oil pressures This part replaces 0912751.
41 3852441 SCREW & LOCK WASHER This part replaces 0908407.
42 3856120 REINFORCEMENT, Port This part replaces 0914362.
42 3856121 REINFORCEMENT, Starboard This part replaces 0914363.
43 0913364 FITTING, Oil drain
44 3852689 SPROCKET, Camshaft This part replaces 0913272.
45 3853958 FLYWHEEL This part replaces 0986325.
46 3853207 GEAR, Flywheel This part replaces 0914418.
47 3851981 GASKET, Fitting to oil pan This part replaces 0913365.
48 0313117 SCR,Clamp,eng cable
49 0502901 OIL FILTER This part replaces 0173233.
50 3853168 NUT, Camshaft sprocket stud This part replaces 0914370.
51 0330151 CLAMP, Harness to oil tank boss This part replaces 0309041.
52 0304671 LOCKWASHER, Coupler to flywheel
53 3854023 DAMPER ASSY. This part replaces 0985074.
54 0911927 STUD, Coupling
55 3852663 KEY, Crankshaft This part replaces 0912990.
56 0909641 ADAPTER, Water drain stbd
57 3852690 SPROCKET, Crankshaft This part replaces 0913273.
58 0984290 COUPLING ASSY.
59 3853273 LOCKNUT, Coupler This part replaces 0912383.
60 0379957 PETCHOCK ASSY, Water drain
61 0984897 SWITCH, Engine oil
62 3852744 BAFFLE, Oil pan This part replaces 0913609.
63 3856138 GASKET, Oil pan This part replaces 0912991.
64 3853197 PICKUP SCREEN This part replaces 0914408.
65 3855776 ADAPTER, Oil sender This part replaces 0910232.
66 3853800 OIL PRESSURE SENDER This part replaces 0982650.
67 3852441 SCREW & LOCK WASHER This part replaces 0908407.
68 3853202 STUD, Oil pan This part replaces 0914413.
69 0985912 TUBE ASSY., Oil drain
70 0913269 OIL PAN
71 3853199 RETAINER, Distributor to oil pump This part replaces 0914410.
72 3853198 SHAFT, Distributor to oil pump This part replaces 0914409.
73 3853134 NUT, Oil pan baffle This part replaces 0914326.
74 3853234 BOLT, Pump to block This part replaces 0914453.
75 0984624 GAUGE, Oil level
76 3853851 OIL PUMP ASSY. This part replaces 0985430.
77 3853167 BOLT, Water pump This part replaces 0914369.
78 3853195 POINTER, Timing This part replaces 0914406.
80 3853167 BOLT, Water pump This part replaces 0914369.
