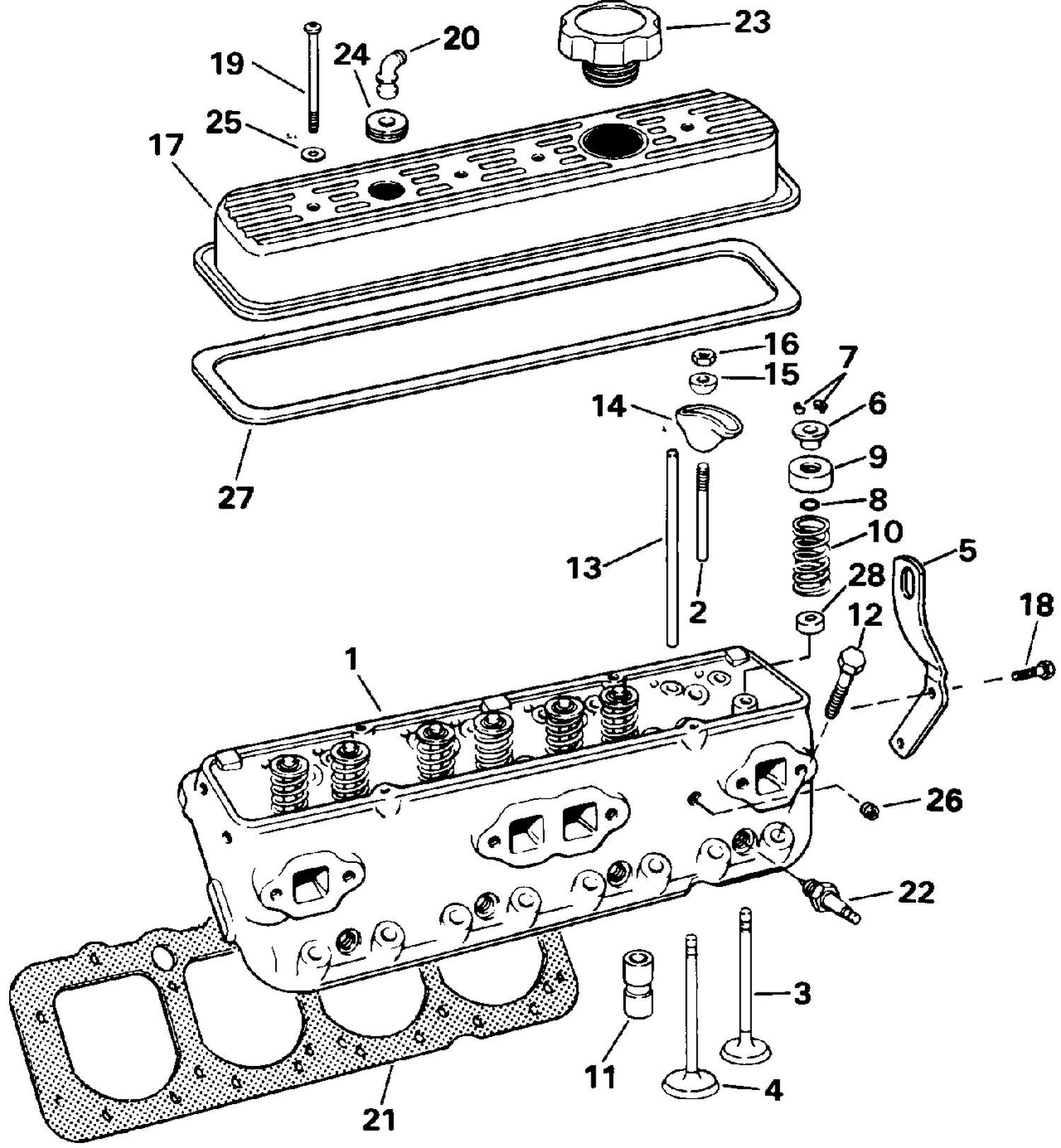

| Ref | Part Number | Description |
|---|
| 1 |
3853852 |
CYLINDER HEAD ASSY. This part replaces 0985431. |
| 2 |
3853146 |
STUD, 0.003 in. O.S. This part replaces 0914339. |
| 2 |
3853147 |
STUD, 0.013 in. O.S. This part replaces 0914340. |
| 3 |
3852448 |
VALVE, Intake, 0.003 in. O.S. This part replaces 0908591. |
| 3 |
3852449 |
VALVE, Intake, 0.015 in. O.S. This part replaces 0908592. |
| 3 |
3852450 |
VALVE, Intake, 0.030 in. O.S. This part replaces 0908593. |
| 3 |
3852451 |
VALVE, Intake, standard This part replaces 0908612. |
| 4 |
0914366 |
VALVE, Exhaust, standard |
| 4 |
3853165 |
VALVE, Exhaust, 0.003 in. O.S. This part replaces 0914367. |
| 4 |
3853166 |
VALVE, Exhaust, 0.015 in. O.S. This part replaces 0914368. |
| 5 |
3853311 |
BRACKET, Lift This part replaces 0914678. |
| 6 |
3853228 |
Cap This part replaces 0914447. |
| 6 |
3853229 |
ROTATOR, Exhaust valve This part replaces 0914448. |
| 7 |
3855823 |
KEY, Valve stem This part replaces 0914322. |
| 8 |
3854956 |
SEAL, Valve stem This part replaces 0914323. |
| 9 |
3853145 |
SHIELD, Valve stem This part replaces 0914338. |
| 10 |
3853227 |
SPRING & DAMPER This part replaces 0914446. |
| 11 |
0986317 |
LIFTER, Valve |
| 12 |
3856122 |
BOLT, Cylinder head, 3 in. This part replaces 0914450. |
| 12 |
3856123 |
BOLT, Cylinder head, 3 3/4 in. This part replaces 0914449. |
| 12 |
3856124 |
BOLT, Cylinder head, 1 3/4 in. This part replaces 0914451. |
| 13 |
3853157 |
PUSH ROD This part replaces 0914359. |
| 14 |
3853158 |
ARM, Valve rocker This part replaces 0914360. |
| 15 |
3853193 |
BALL, Rocker arm This part replaces 0914404. |
| 16 |
3853141 |
NUT, Rocker arm This part replaces 0914121. |
| 17 |
3856928 |
VALVE COVER, Starboard This part replaces 0986748. |
| 18 |
3853325 |
SCREW, Clamp to engine This part replaces 0914761. |
| 19 |
3856135 |
SCREW, Valve cover This part replaces 0913271. |
| 20 |
0311545 |
ELBOW |
| 21 |
3853380 |
GASKET, Cylinder head This part replaces 0914971. |
| 22 |
0979826 |
GASKET, Cylinder head |
| 22 |
3854400 |
SPARK PLUG, Champion RV15YC4 This part replaces 0979827. |
| 23 |
3854008 |
OIL FILL CAP This part replaces 0986747. |
| 24 |
0311543 |
GROMMET |
| 25 |
0912969 |
GASKET, Cover screw |
| 27 |
3852687 |
GASKET, Valve cover This part replaces 0913270. |
| 28 |
3853226 |
SEAL, Valve stem, inlet, standard This part replaces 0914445. |
| 28 |
3853645 |
SEAL, Valve stem, inlet, 0.015 in. O.S. This part replaces 0916031. |
