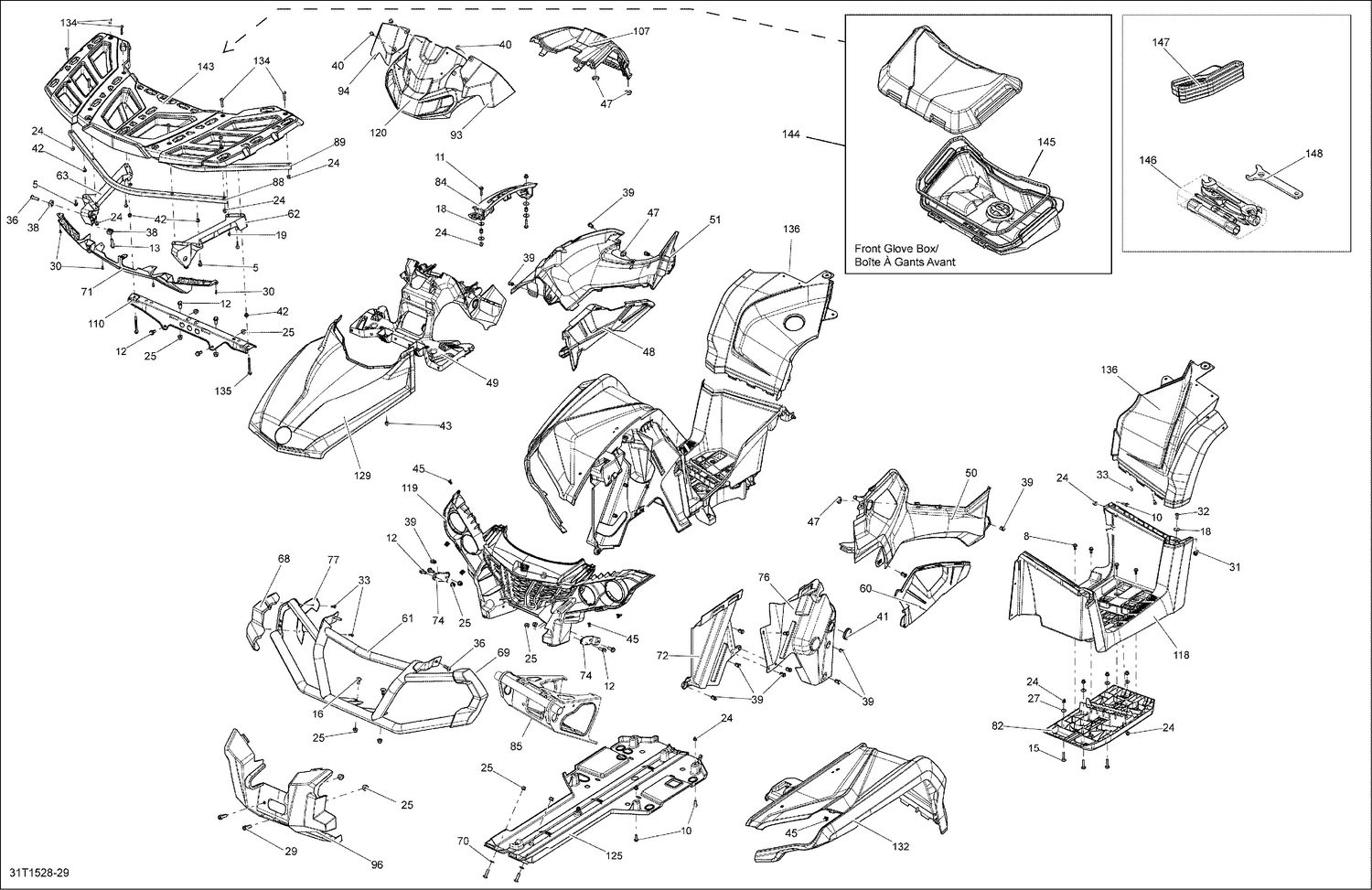

| Ref | Part Number | Description |
|---|
| 5 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 8 |
207661654 |
Hex. Flange Screw M6 X 16 This part replaces 207661684. |
| 10 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 11 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 12 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 13 |
207683534 |
Hex. Flange Screw M8 X 35 |
| 15 |
207763554 |
Carriage Bolt M6 X 35 This part replaces 207763584. |
| 16 |
207782044 |
Carriage Bolt, M8 X 20 |
| 18 |
224061201 |
Flat Washer |
| 19 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 24 |
233261434 |
Flange Elastic Nut M6 |
| 25 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 27 |
234062410 |
Flat Washer 6 mm |
| 29 |
236282084 |
Hex. Screw M8 X 20 |
| 30 |
241140060 |
Screw K40 X 10 |
| 31 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 32 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 33 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 36 |
250000886 |
Torx Screw M8 X 30 This part replaces 250000544. |
| 38 |
269501943 |
Elastic Nut Housing M8 |
| 39 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 40 |
293150104 |
Pop Rivet 3/16" |
| 41 |
293250242 |
Rubber Cover |
| 42 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 43 |
293830005 |
Rubber Bumper |
| 45 |
517302785 |
Edge Clip |
| 47 |
705003264 |
Grommet |
| 48 |
705003444 |
Engine Cover |
| 50 |
705003446 |
Yellow, LH Lateral Panel |
| 50 |
705005238 |
PANEL_BODY LH B-005 - Call your local BRP dealership |
| 50 |
705007530 |
Quarry Gray LH Lateral Panel |
| 51 |
705009019 |
Yellow, RH Lateral Panel |
| 51 |
705009116 |
PANEL_BODY RH B-365 - Call your local BRP dealership |
| 51 |
705009118 |
PANEL_BODY RH B-005 - Call your local BRP dealership |
| 60 |
715007008 |
Deflector_Body Panel Kit This part replaces 705004147. |
| 62 |
705011553 |
LH Support Luggage Rack Ass'y This part replaces 705006700. |
| 63 |
705011555 |
RH Support Luggage Rack Ass'y This part replaces 705006701. |
| 70 |
705004497 |
Ring |
| 71 |
705004523 |
Lugage Rack Moulding |
| 72 |
705011463 |
RH Front Inner Fender This part replaces 705004558. |
| 72 |
705017001 |
LH Front Wheel Arch Protector This part replaces 705004557. |
| 74 |
705004565 |
Lower Fender Support |
| 76 |
705011462 |
RH Rear Inner Fender This part replaces 705004587. |
| 76 |
705013111 |
LH Rear Inner Fender This part replaces 705004588. |
| 82 |
705011540 |
LH Structural Footboard This part replaces 705005254. |
| 82 |
705011542 |
RH Structural Footboard This part replaces 705005253. |
| 84 |
705011544 |
Shifter Gate This part replaces 705005257. |
| 85 |
705016893 |
Front Bumper Support This part replaces 705004165. |
| 88 |
705016640 |
Sectional Bent Tube This part replaces 705005469. |
| 89 |
705016092 |
Bent Sectional Tube This part replaces 705005470. |
| 93 |
705006134 |
LH Air Deflector |
| 94 |
705006135 |
RH Air Deflector |
| 96 |
705006299 |
Front Guard Plate |
| 107 |
715006098 |
Dash Kit This part replaces 715001765. |
| 110 |
705006812 |
Cargo Rack Center Support |
| 118 |
705007039 |
RH Step |
| 118 |
705007040 |
LH Step |
| 119 |
705012822 |
Fascia This part replaces 705007041. |
| 120 |
705007095 |
Gauge Support |
| 125 |
715002374 |
Protective Plate Kit This part replaces 705007553. |
| 134 |
250000646 |
Black, Torx Screw M6 X 35 |
| 135 |
207567044 |
Hex. Flange Screw M6x70, Scotch Grip |
| 144 |
708200408 |
Box Ass'y |
| 145 |
219704452 |
Was 715900411 Neoprene Seal |
| 146 |
704700162 |
Tool Kit This part replaces 704700148. |
| 147 |
710002270 |
Remote Control |
