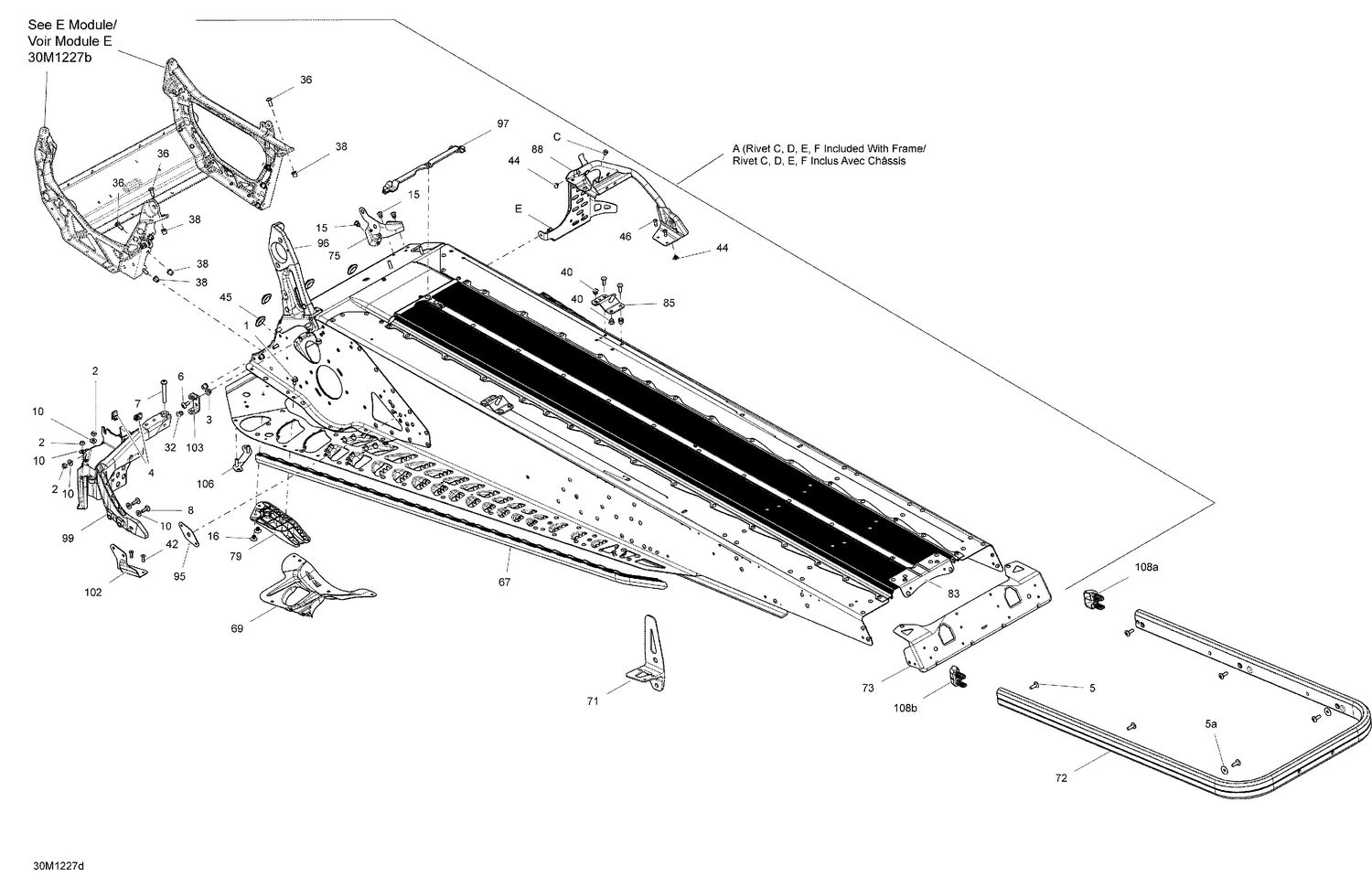

09- Frame LT 154"
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| A | 415130259 | FRAME TUNDRA LT - Call your local BRP dealership This part replaces 415129654. |
| C | 390909200 | Avex Rivet |
| D | 390909100 | Avex Rivet |
| E | 293150144 | Stavex Rivet |
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3 | 233061414 | Hex. Flange Nut M6 |
| 4 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 5 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 5a | 224061201 | Flat Washer |
| 6 | 250000534 | Tork Screw M6 X 16 |
| 7 | 250000535 | Torx Screw M8 X 55 |
| 8 | 250000536 | Tork Screw M6 X 18 |
| 10 | 250200039 | Flat Washer |
| 15 | 293150096 | Hemlock Rivet, 6.5 mm |
| 16 | 293150104 | Pop Rivet 3/16" |
| 32 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 36 | 207662044 | Hex. Flange Screw M6 X 20 |
| 38 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 40 | 293150174 | Hemlock Rivet, 6.4 mm |
| 42 | 293150194 | Interlock Rivet 3/16'' |
| 44 | 293730042 | Full Moon Dart 5 mm |
| 45 | 293730052 | Black, Plug |
| 46 | 390402300 | Pop Rivet 3/16" |
| 67 | 518325159 | RH ROLLER - Call your local BRP dealership |
| 67 | 518325160 | LH Roller |
| 69 | 518324874 | RH Reinforcement |
| 69 | 518324875 | LH Reinforcement |
| 71 | 518325955 | RH SLIDE BRACKET - Call your local BRP dealership |
| 71 | 518325956 | LH Slide Bracket |
| 72 | 518325579 | Clear Rear Bumper |
| 73 | 518327105 | Rear Cap This part replaces 518325421. |
| 75 | 518325559 | RH Engine Support |
| 79 | 518325782 | RH Deflector, Black Polypropylene |
| 79 | 518325783 | LH Deflector, Black Polypropylene |
| 83 | Not | Available As Spare Part - Center Tunnel Ass'y 154'' |
| 85 | 518325973 | RH Rear Base |
| 85 | 518325974 | LH Rear Base |
| 88 | 518328938 | RH Stirup This part replaces 518326216. |
| 95 | 518326647 | Reinforcement Plate |
| 96 | 518328346 | Pulley Support This part replaces 518326651. |
| 97 | 518326656 | Seal |
| 99 | 518326820 | LH Stirup |
| 102 | 518326960 | Support |
| 103 | 518326961 | U-Attach |
| 106 | 518326986 | Attach |
| 108a | 520000711 | Full Moon RH Cap |
| 108b | 520000712 | Full Moon LH Cap |
