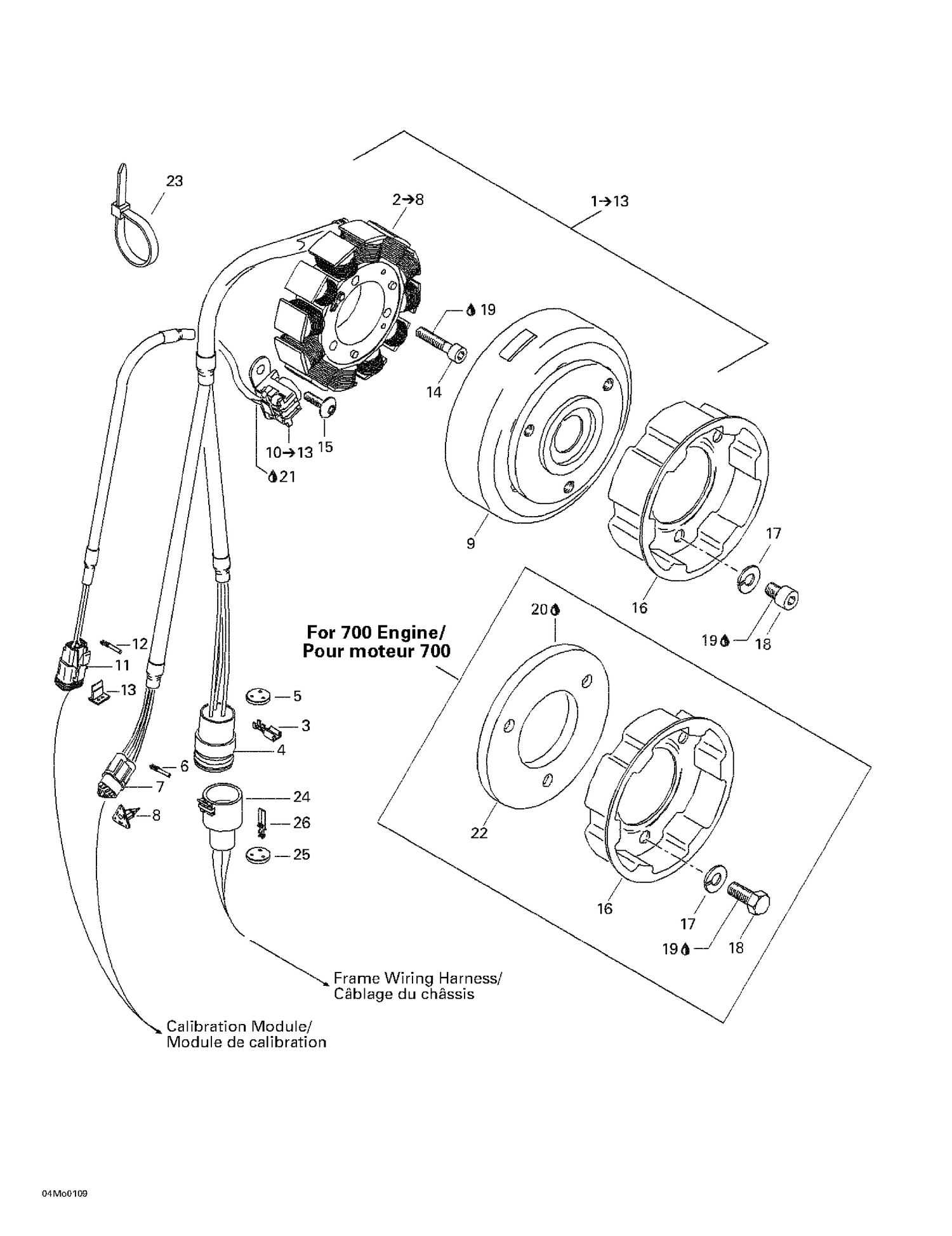

| Ref | Part Number | Description |
|---|
| 3 |
409011900 |
FEMALE TERMINAL - Call your local BRP dealership |
| 4 |
409208200 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 5 |
409208500 |
SEAL - Call your local BRP dealership |
| 6 |
278000632 |
Female Terminal |
| 7 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 8 |
409207200 |
Female Lock |
| 9 |
410922933 |
Flywheel |
| 11 |
409207300 |
Female Connector, 2 Circuits |
| 12 |
278000632 |
Female Terminal |
| 13 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 14 |
205063044 |
Socket Head Screw M6 X 30 |
| 15 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 17 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 21 |
Not |
Available As Spare Part - Sikaflex 255, 310 ml |
| 23 |
293750001 |
Tie Wrap 94 mm |
| 24 |
409207900 |
MALE HOUSING - Call your local BRP dealership |
| 25 |
409208500 |
SEAL - Call your local BRP dealership |
