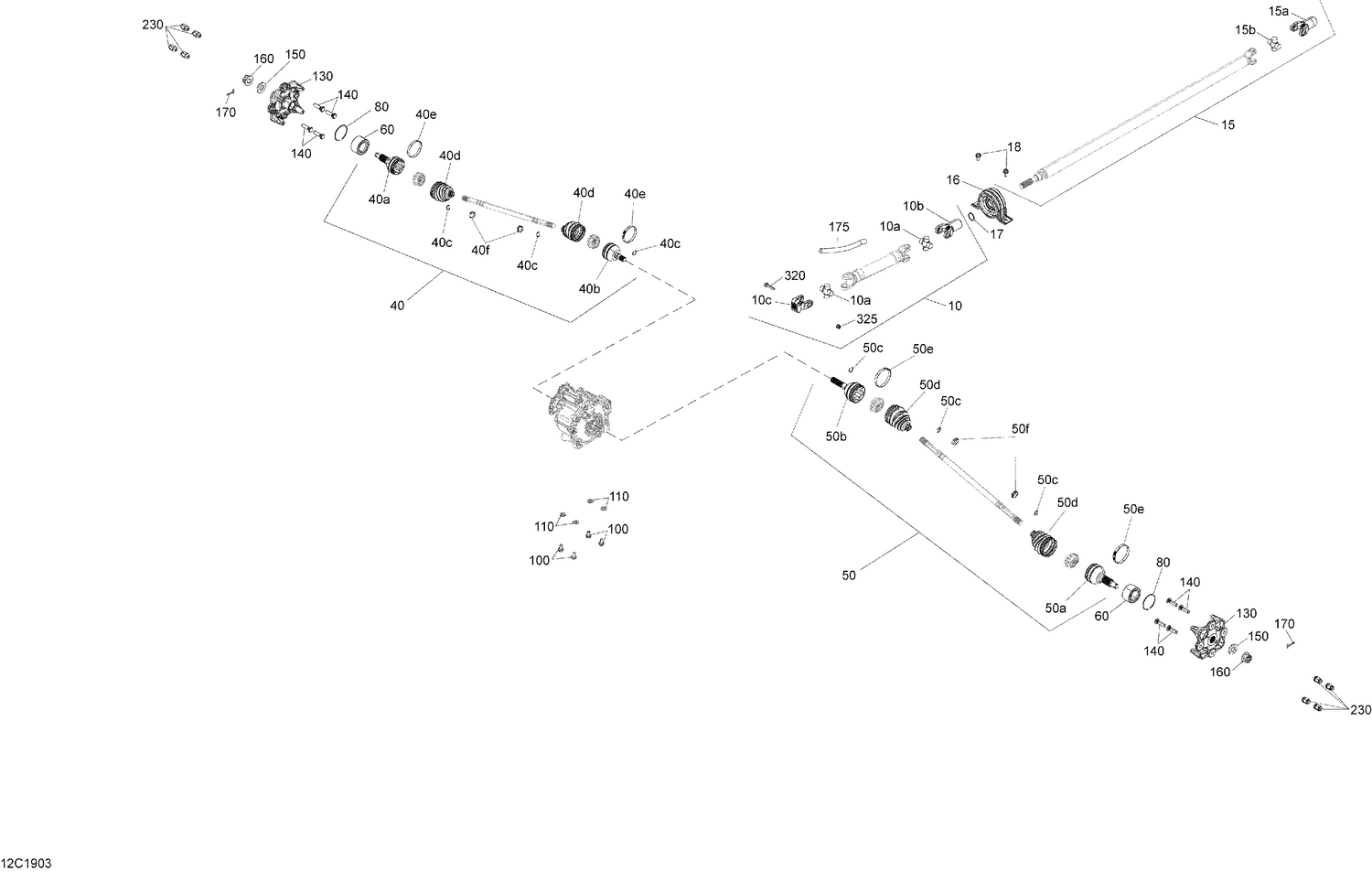

07- Front Drive - Main Parts - Package STD
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900402 | J-Joint Cross Kit |
| 10b | 715900401 | Yoke |
| 10c | 715900524 | Fixed Yoke Joint |
| 15a | 715900401 | Yoke |
| 15b | 715900402 | J-Joint Cross Kit |
| 16 | 705403522 | Ball Bearing Ass'y This part replaces 705401938. |
| 17 | 293370098 | Snap Ring |
| 18 | 207502046 | Hex. Flange Screw M10 X 20 |
| 40a | 715900452 | CV Joint |
| 40b | 715900454 | RH Plunging Joint |
| 40c | 705401349 | Circlip Joint |
| 40e | 715900260 | Oetiker Clamp, Large |
| 40f | 715900261 | Oetiker Clamp, Small |
| 50a | 715900452 | CV Joint |
| 50b | 715900453 | LH Plunging Joint |
| 50c | 705401349 | Circlip Joint |
| 50e | 715900260 | Oetiker Clamp, Large |
| 50f | 715900261 | Oetiker Clamp, Small |
| 60 | 293350141 | Bearing_Ball This part replaces 293350129. |
| 80 | 293370102 | Circlip |
| 100 | 207502046 | Hex. Flange Screw M10 X 20 |
| 110 | 234201474 | Conical Spring Washer 10 mm |
| 130 | 705502122 | Wheel Hub |
| 140 | 250300625 | Wheel Stud M12X1.5 |
| 150 | 250200170 | Conical Spring Washer M20 |
| 160 | 250100193 | Castle Nut M20 |
| 170 | 250400084 | Cotter Pin |
| 185 | 518321570 | Open Clamp |
| 186 | 293150104 | Pop Rivet 3/16" |
| 230 | 250100196 | Black, Wheel Nut M12 X 1.50 |
| 320 | 250001050 | Hex. Flange Screw M8 X 42 |
